• 1V Start-Up Input Voltage
• 0.6V Operation Input Voltage after Start-Up
• 1.8V to 4V Output Voltage Range
• Up to 96% Efficiency
• 1MHz Switching Frequency
• 30μA (TYP) Quiescent Current
• 0.4μA (TYP) Shutdown Current
• Current-Mode Control with Internal
Compensation
• True Output Disconnection from Input
• VIN > VOUT Bypass Mode & Down Mode
• High Efficiency under Light-Load Conditions
• Internal Soft-Start
• Load Disconnect
• Short-Circuit Protection
• Over-Current Protection
• -40℃ to +85℃ Operating Temperature Range

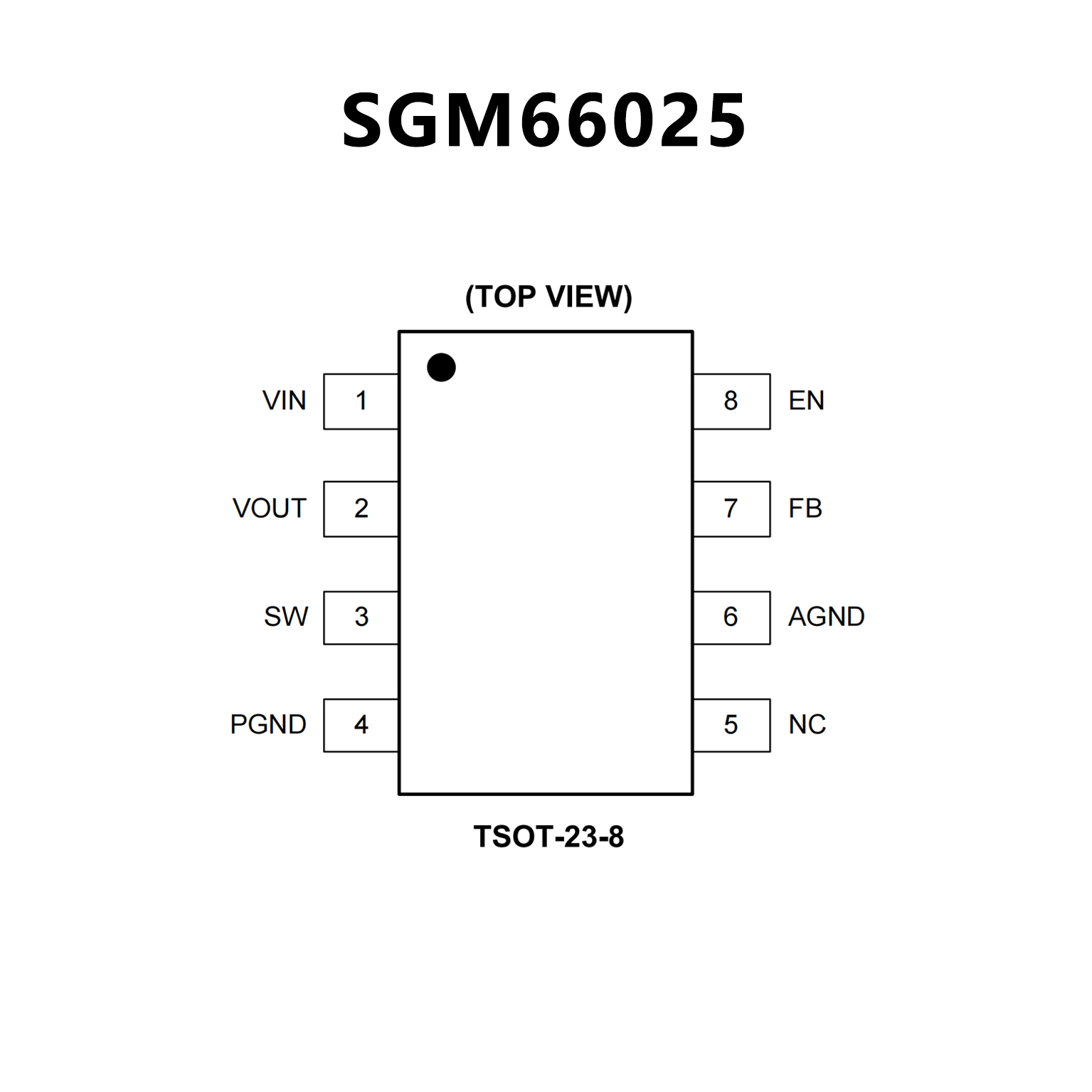

• Available in a Green TSOT-23-8 Package
![](/static/upload/image/20240527/1716791015845951.jpg)
• Up to 96% Efficiency
• 0.8V Low Voltage Start-Up
• 0.6V-to-4V Input Range
• 1.8V-to-4V Output Range
• Internal Synchronous Rectifier
• 1MHz Fixed-Frequency Switching
• 35μA Quiescent Current
• 1μA Shutdown Current
• Current-Mode Control with Internal
Compensation
• True Output Disconnect from Input
• VIN>VOUT Down Mode Operation
• High Efficiency under Light-Load Conditions
• Very Small External Components
• Inrush Current Limiting and Internal SoftStart
• Over-Voltage Protection
• Short-Circuit Protection

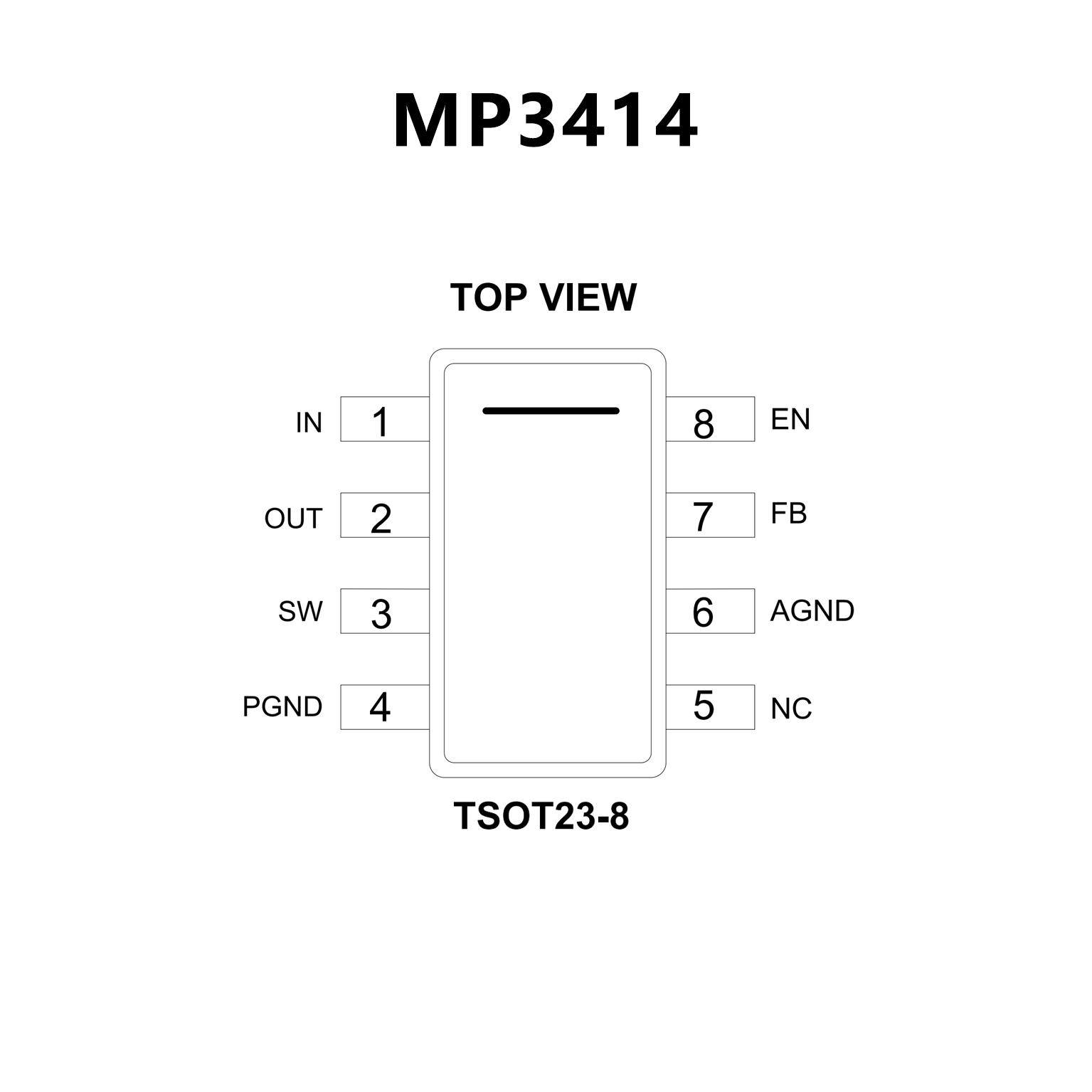

• TSOT23-8 Package
![](/static/upload/image/20240527/1716791027797362.jpg)
