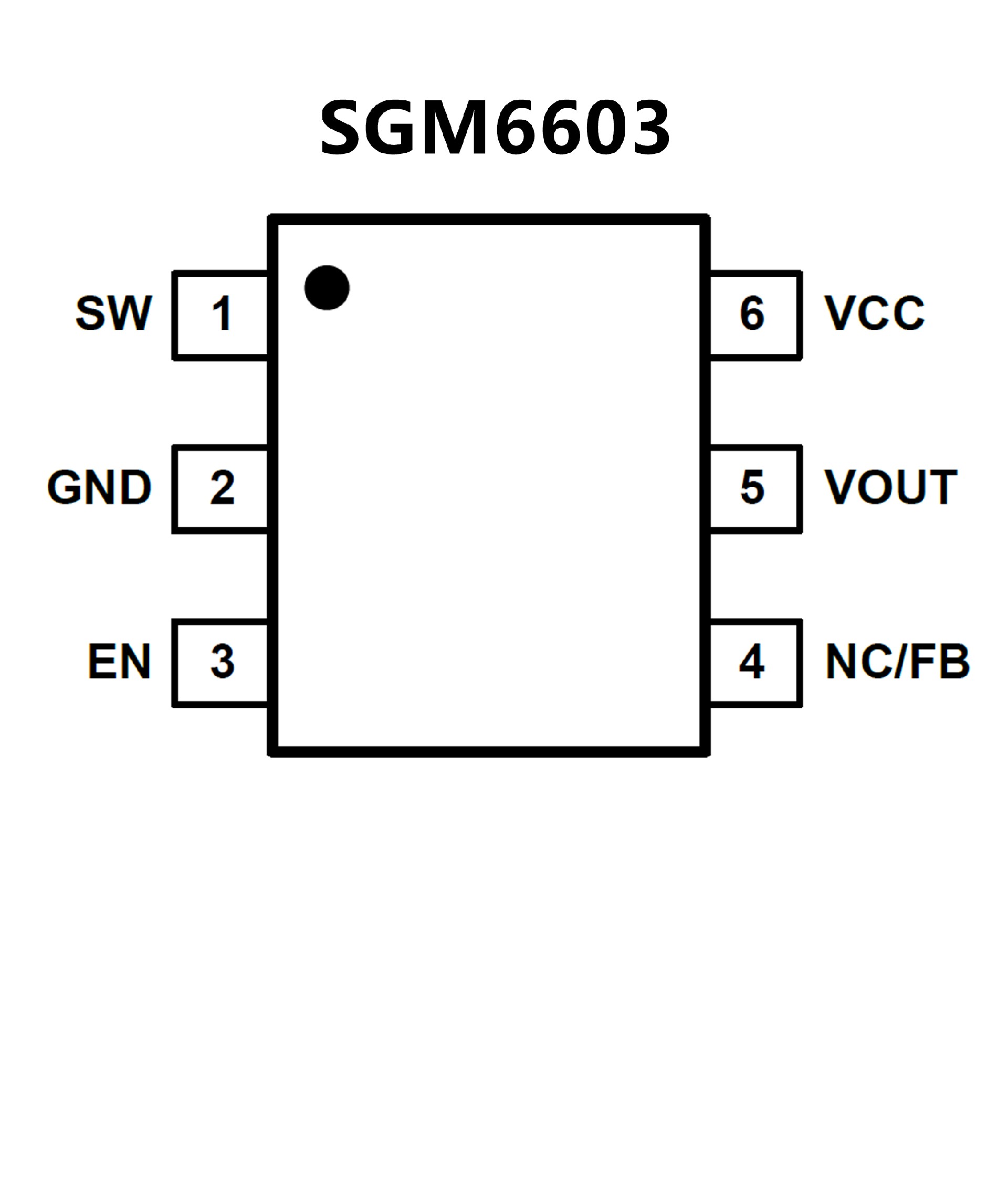

SGM6603.pdf• 90% Efficient Synchronous Boost Converter
• Device Quiescent Current: 30μA (TYP)
• Less than 1μA Shutdown Current
• Input Voltage Range: 0.9V to 5.5V
• 3.3V and 5.0V Fixed Output Voltages
• Adjustable Output Voltage Up to 5.5V
• Output Voltage Clamping: 6V
• Power-Save Mode for Improved Efficiency at Low
Output Power
• Load Disconnect During Shutdown
• Over-Temperature Protection
• Available in Green SOT-23-6 Package
• -40℃ to +85℃ Operating Temperature Range

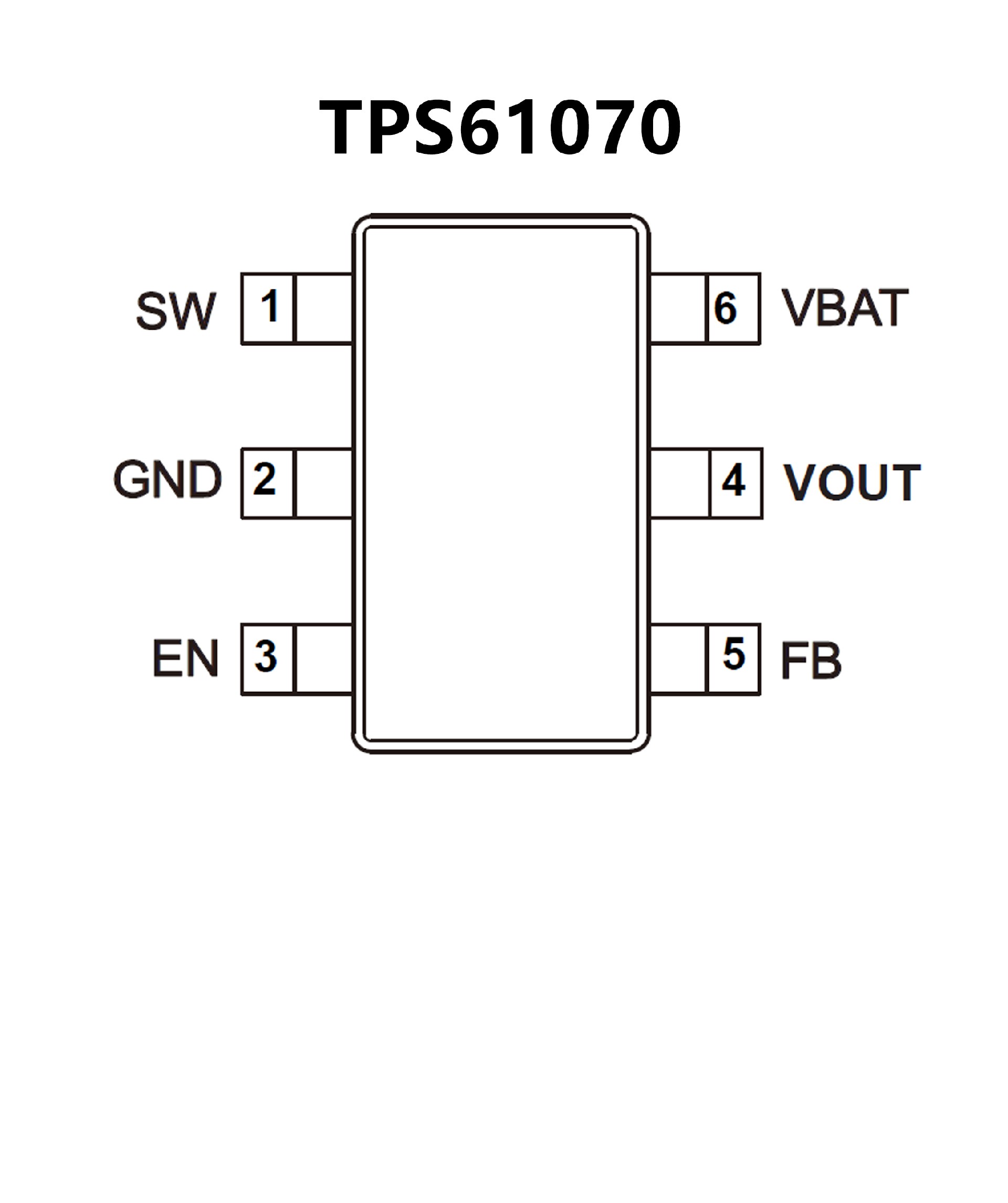

• 90% Efficient Synchronous Boost Converter
75-mA Output Current at 3.3 V From 0.9-V Input
150-mA Output Current at 3.3 V From 1.8-V Input
• Device Quiescent Current: 19 µA (Typ)
• Input Voltage Range: 0.9 V to 5.5 V
• Adjustable Output Voltage Up to 5.5 V
• Power-Save Mode Version Available for
Improved Efficiency at Low Output Power
• Load Disconnect During Shutdown
• Overtemperature Protection
• Small 6-Pin Thin SOT23 Package
