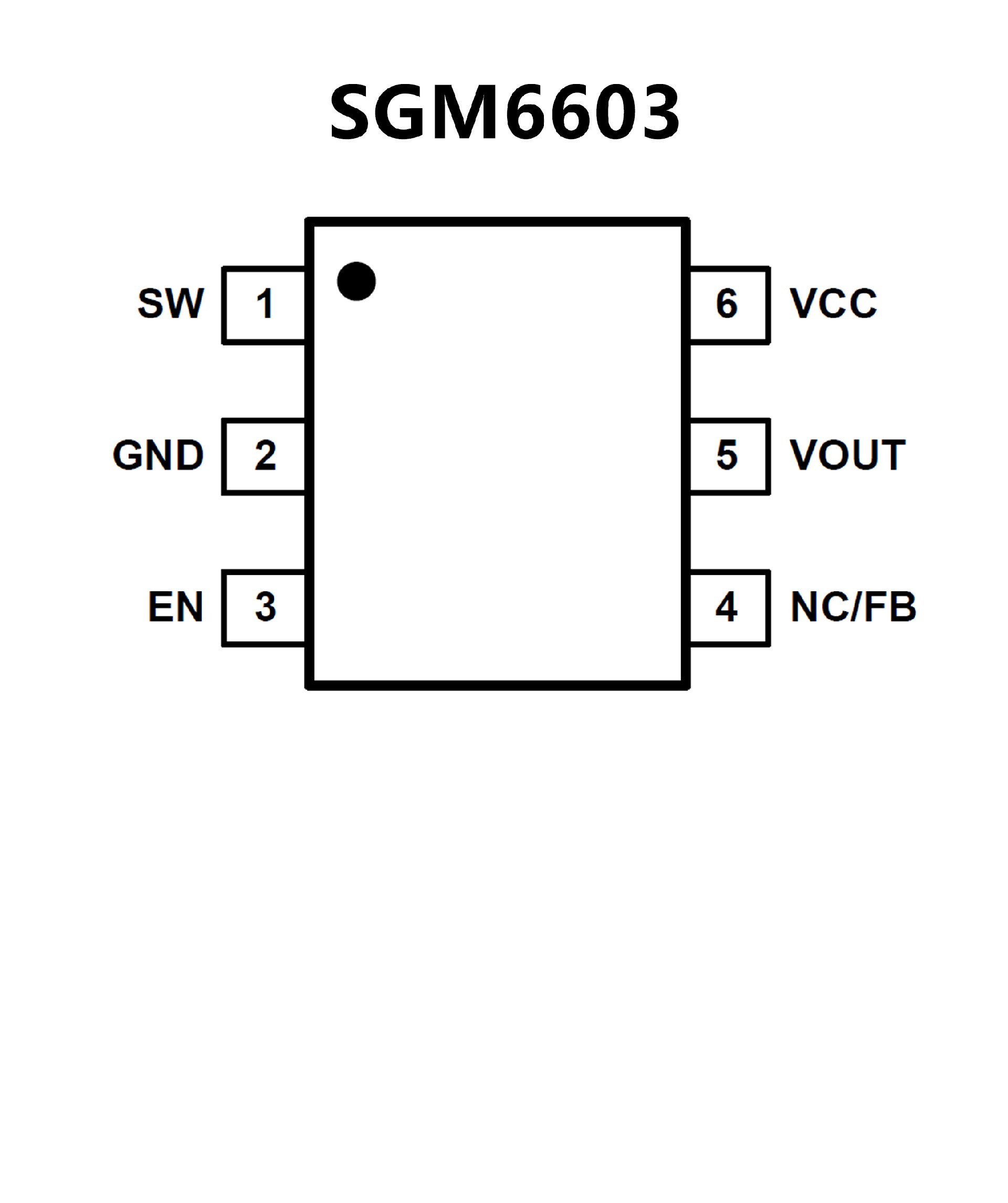

SGM6603A-ADJ.pdf• 90% Efficient Synchronous Boost Converter
• Device Quiescent Current: 30μA (TYP)
• Less than 1μA Shutdown Current
• Input Voltage Range: 0.9V to 5.5V
• 3.3V and 5.0V Fixed Output Voltages
• Adjustable Output Voltage Up to 5.5V
• Output Voltage Clamping: 6V
• Power-Save Mode for Improved
Efficiency at LowOutput Power
• Load Disconnect During Shutdown
• Over-Temperature Protection
• Available in Green SOT-23-6 Package
• -40℃ to +85℃ Operating
Temperature Range

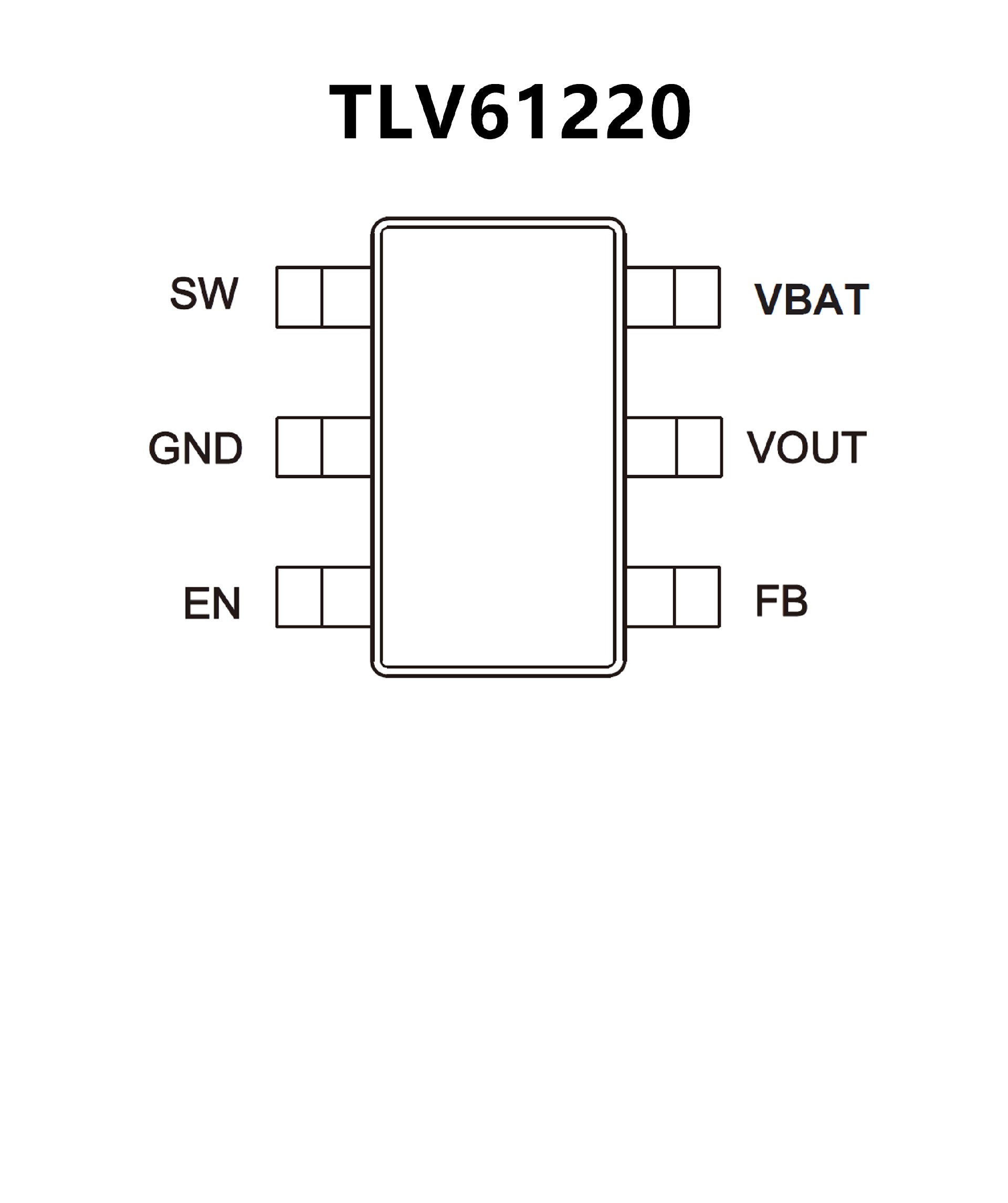

• Up to 95% Efficiency at Typical
Operating Conditions
• 5.5-μA Quiescent Current
• Startup Into Load at 0.7-V Input Voltage
• Operating Input Voltage from 0.7 V to 5.5 V
• Pass-Through Function during Shutdown
• Minimum Switching Current 200 mA
• Protections:
Output Overvoltage
Overtemperature
Input Undervoltage Lockout
• Adjustable Output Voltage
from 1.8 V to 5.5 V
• Small 6-pin Thin SOT-23 Package
