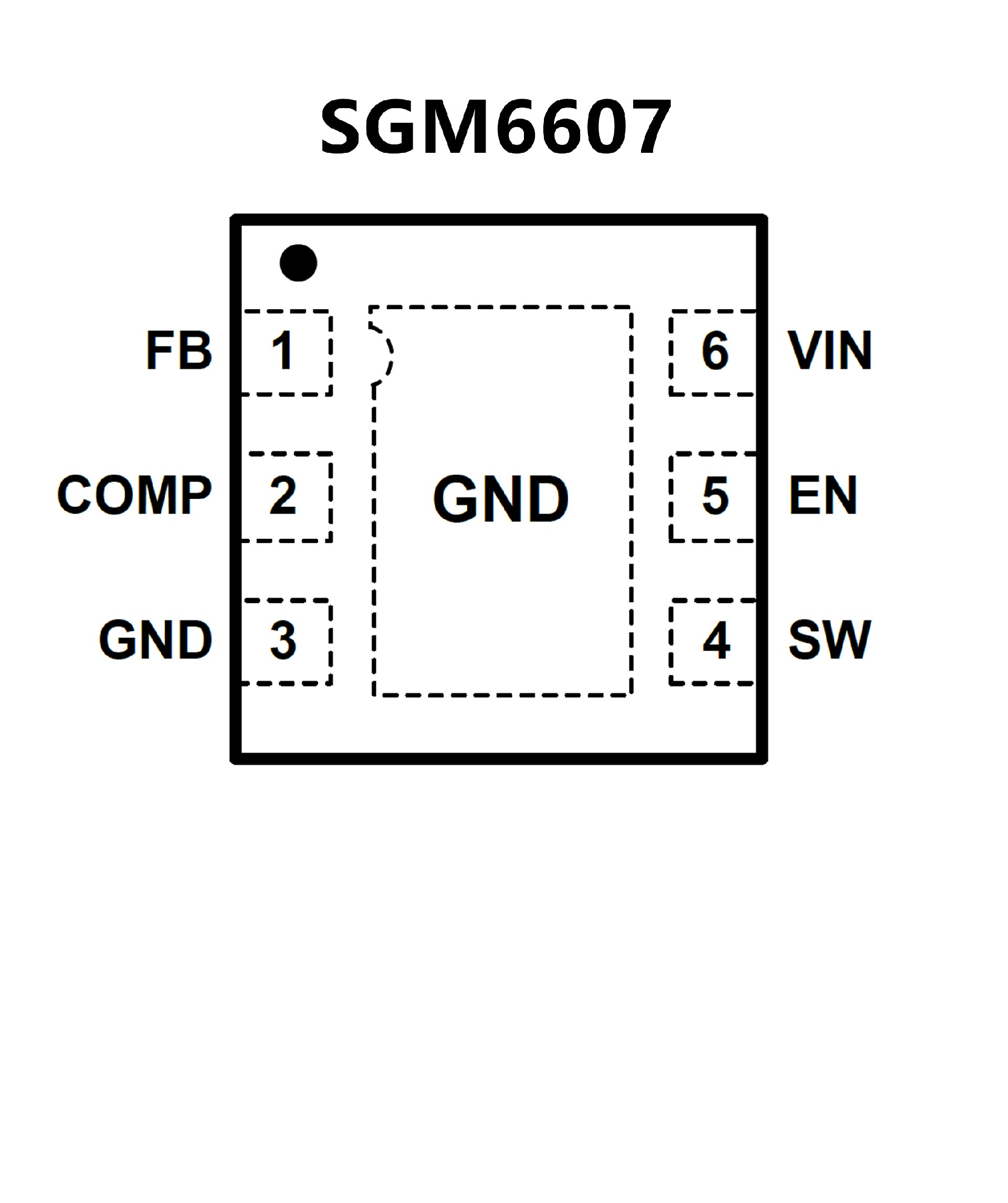

SGM6607AYTDI6G.pdf• 3V to 20V Input Voltage Range
• High Output Voltage: Up to 38V
• 41V Over-Voltage Protection
• 1.1A Integrated Switch
• 1.2MHz Fixed Switching Frequency
• 12V at 300mA and 24V at 150mA from 5V Input
(TYP)
• Up to 93% Efficiency
• Skip-Switching for Light Load
• Built-In Soft-Start Function
• 500kΩ Pull-Down Resistor on EN Pin
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TDFN-2×2-6L and TSOT-23-6
Packages

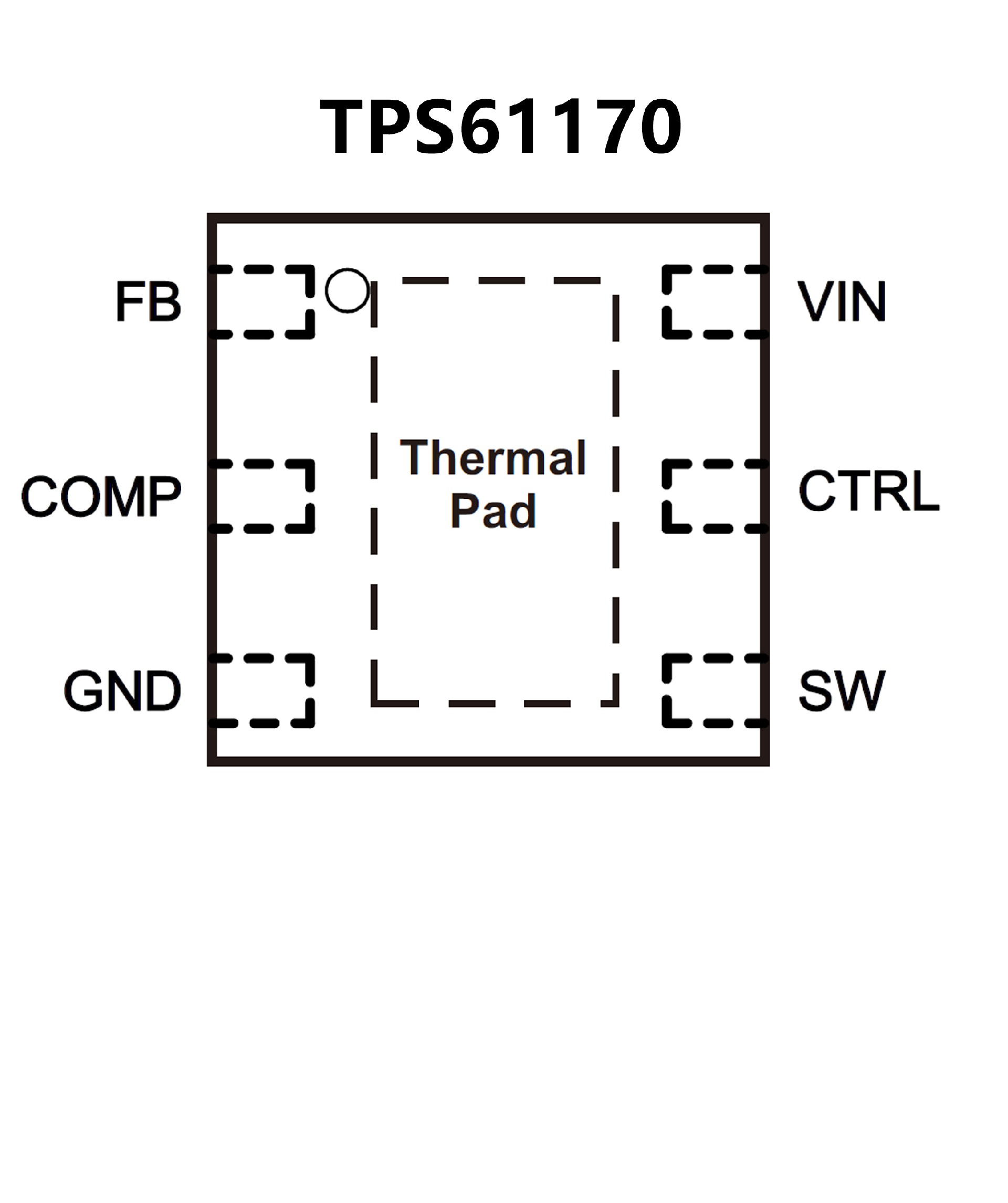

• 3-V to 18-V Input Voltage Range
• High Output Voltage: Up to 38 V
• 1.2-A Integrated Switch
• 1.2-MHz Fixed Switching Frequency
• 12 V at 300 mA and 24 V at 150 mA
From 5-V Input (Typical)
• Up to 93% Efficiency
• On-The-Fly Output Voltage Reprogramming
• Skip-Switching Cycle for Output Regulation at Light Load
• Built-in Soft Start
• 6-Pin, 2-mm × 2-mm QFN Package
