10A Fully Integrated Synchronous Boost Converter, SGM6610 Replace SY7120.
SGM6610
SGM6610.pdf
SGM6610.pdfFEATURES
• Input Voltage Range: 2.7V to 12V
• Output Voltage Range: 4.5V to 12.6V
• 10A Switch Current
• Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V and
IOUT = 3A
• Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
• 1μA Current into VIN Pin during Shutdown
• Resistor-Programmable Switch Peak Current Limit
• Adjustable Switching Frequency: 200kHz to 2.2MHz
• Programmable Soft-Start
• Output Over-Voltage Protection at 13.2V
• Cycle-by-Cycle Over-Current Protection
• Thermal Shutdown
• Available in Green TQFN-4.5×3.5-20L Package

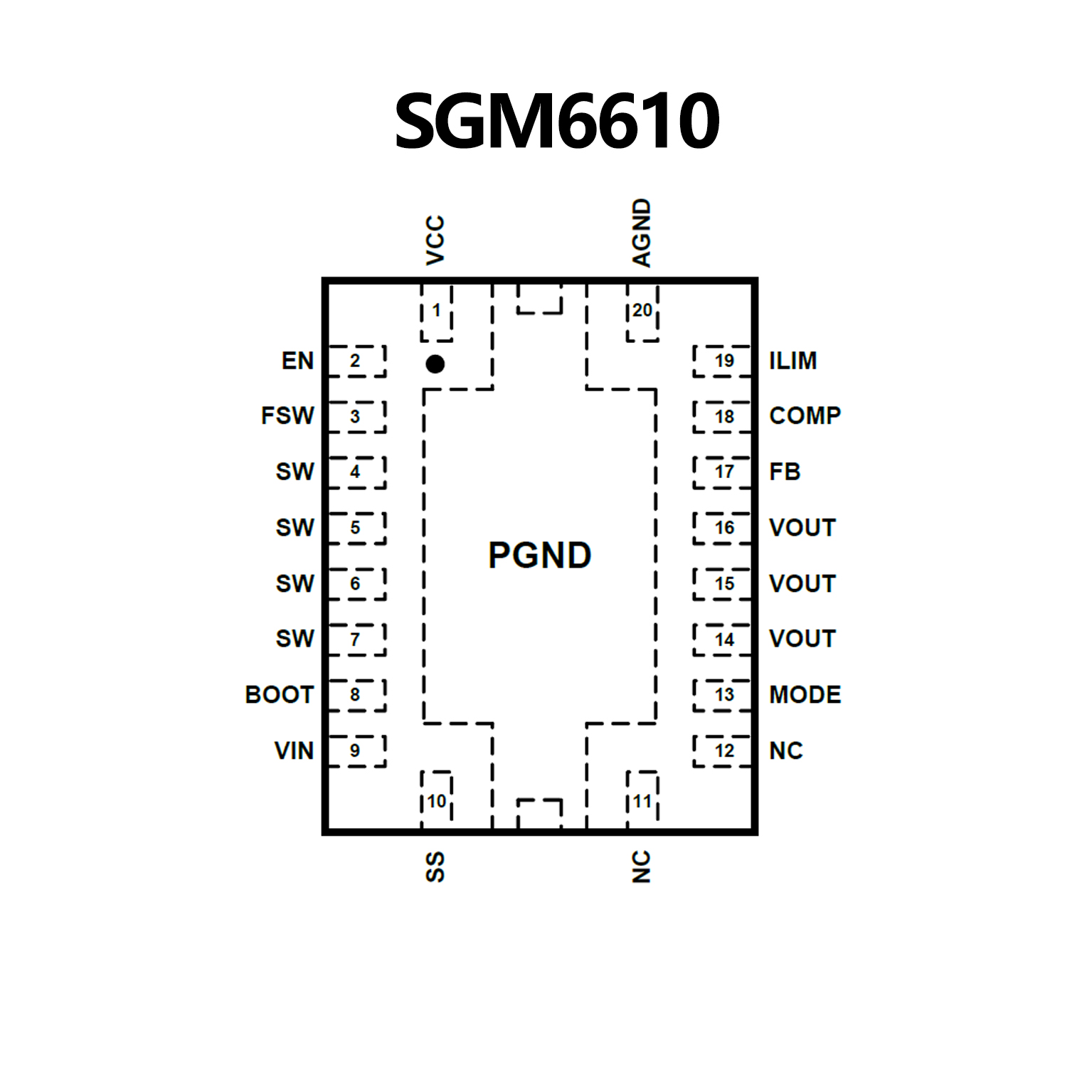

PIN CONFIGUTION
优势替代
FEATURES
• Input Range: 2.8-16V
• Programmable Pseudo-constant Frequency:
300kHz-2MHz
• Low RDS(ON) for Internal Switch
Main FET: 10mΩ
Rectifier FET: 20mΩ
• PFM/PWM Selectable Light Load Operation Mode
• Internal Loop Compensation
• Programmable Peak Current Limit
• Internal Soft-start Time Limit the Inrush Current
• Input Voltage UVLO
• Over Temperature Protection
• Over Voltage Protection
• RoHS Compliant and Halogen Free
• Compact Package:QFN3×3-20
PIN CONFIGUTION
