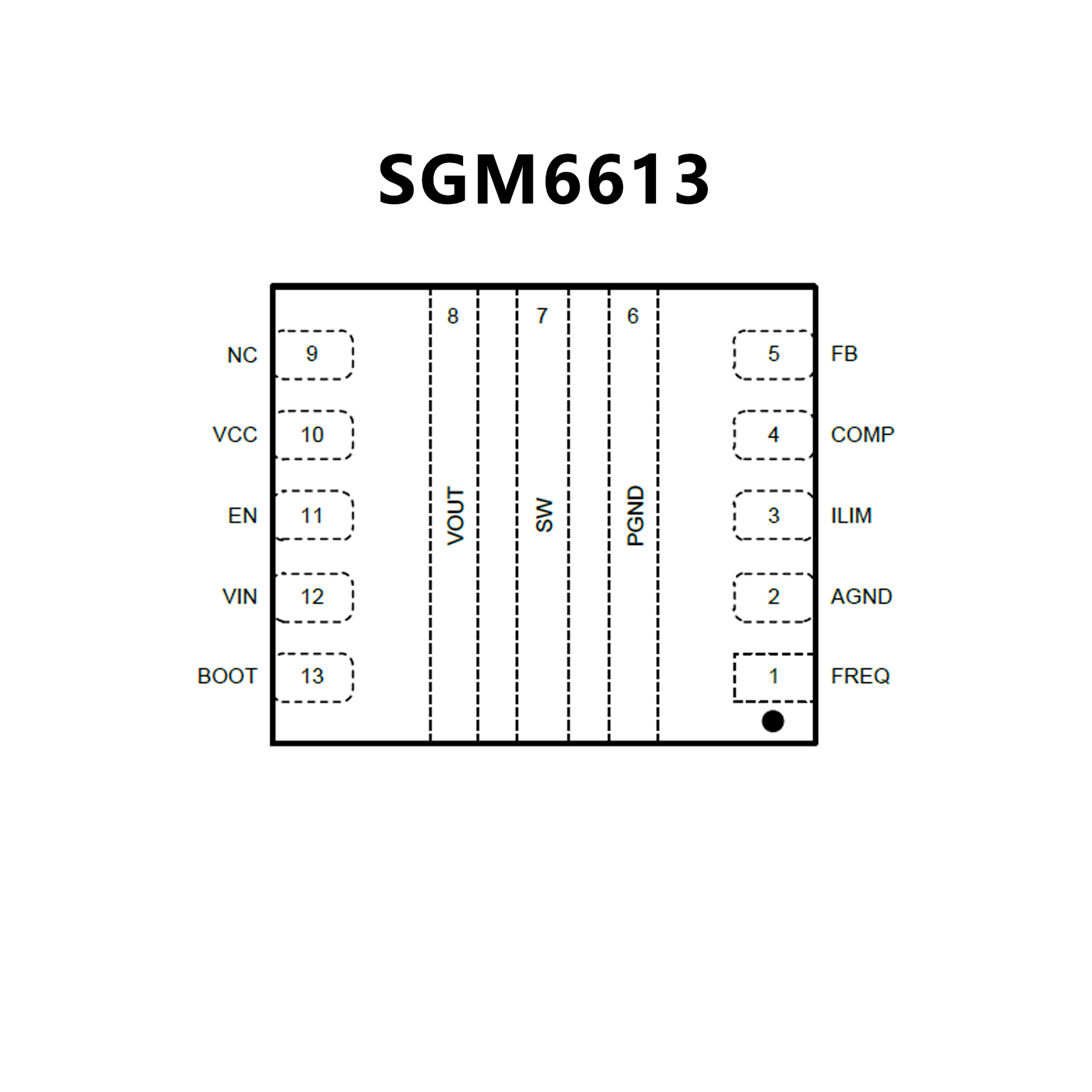

SGM6613.pdf• Wide 4.5V to 22V Input Voltage Range
• (VIN + 5V) to 28.5V Output Voltage Range
• Up to 7A Resistor-Programmable Current Limit
• Integrated 17mΩ/31mΩ Power MOSFETs
• Up to 90% Efficiency at VIN = 5V,
VOUT = 28.5V and IOUT = 500mA
• Up to 700kHz Resistor-Programmable
Switching Frequency
• Over-Voltage Protection
• Forced PWM Mode at Light Load Condition
• Available in a Green TQFN-3×3.5-13L Package

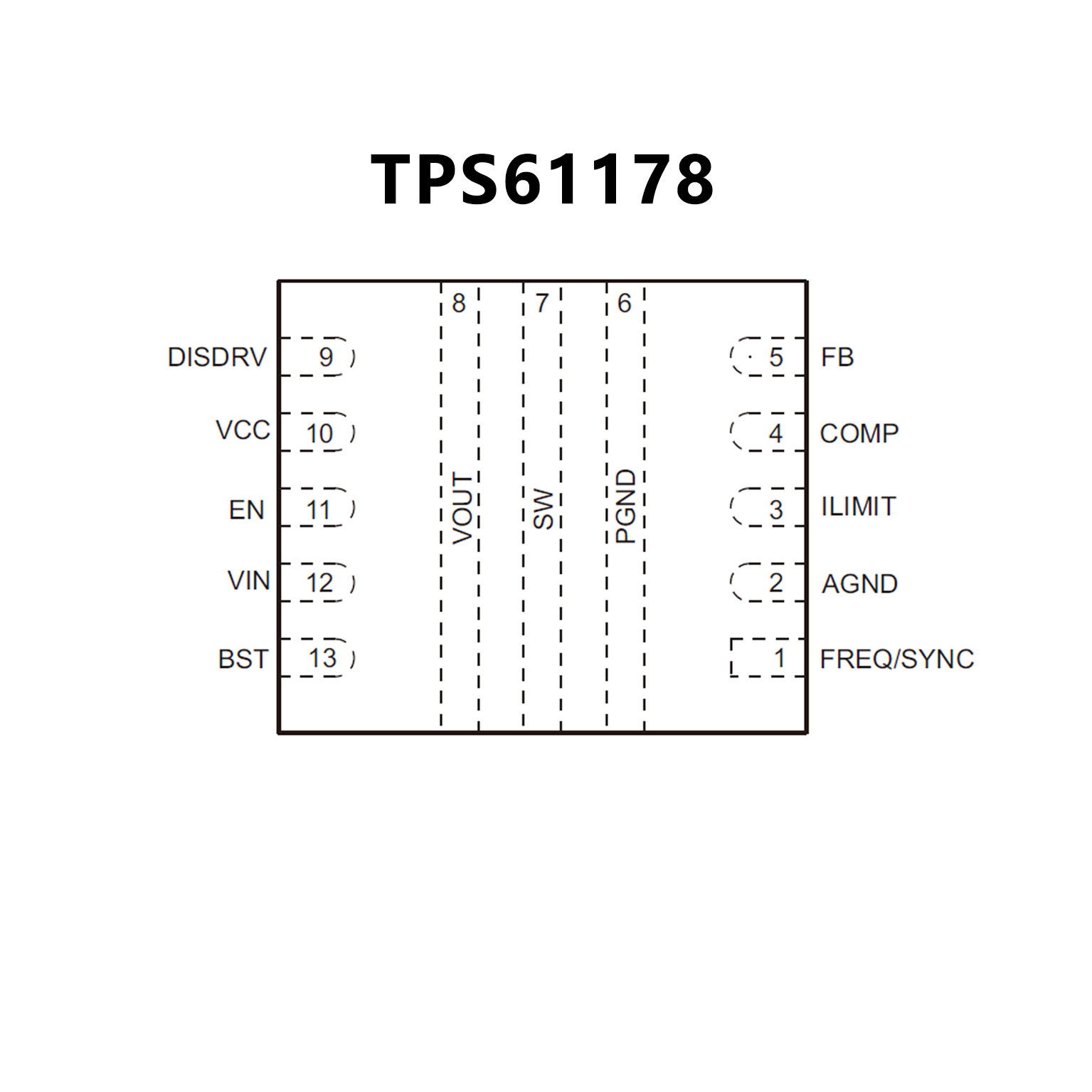

• Input Voltage Range: 2.7 V to 20 V
• Output Voltage Range: 4.5 V to 20 V
• Programmable Switch Peak Current: up to 10 A
• Two 16-mΩ FETs Integrated
• Efficiency up to 96%: VIN = 7.2 V, VOUT = 16 V, IOUT = 2 A
• Adjustable Switching Frequency: up to 2.2 MHz
• External Clock Synchronization: 200 kHz to 2.2 MHz
• Gate Driver for Load Disconnect
• Hiccup Short Protection
• Auto PFM Operation - TPS61178
• Forced PWM Mode - TPS611781
• 3.0-mm x 3.5-mm 13-pin VQFN Hotrod Package
• Create a Custom Design Using the
TPS61178 With the WEBENCH® Power Designer
