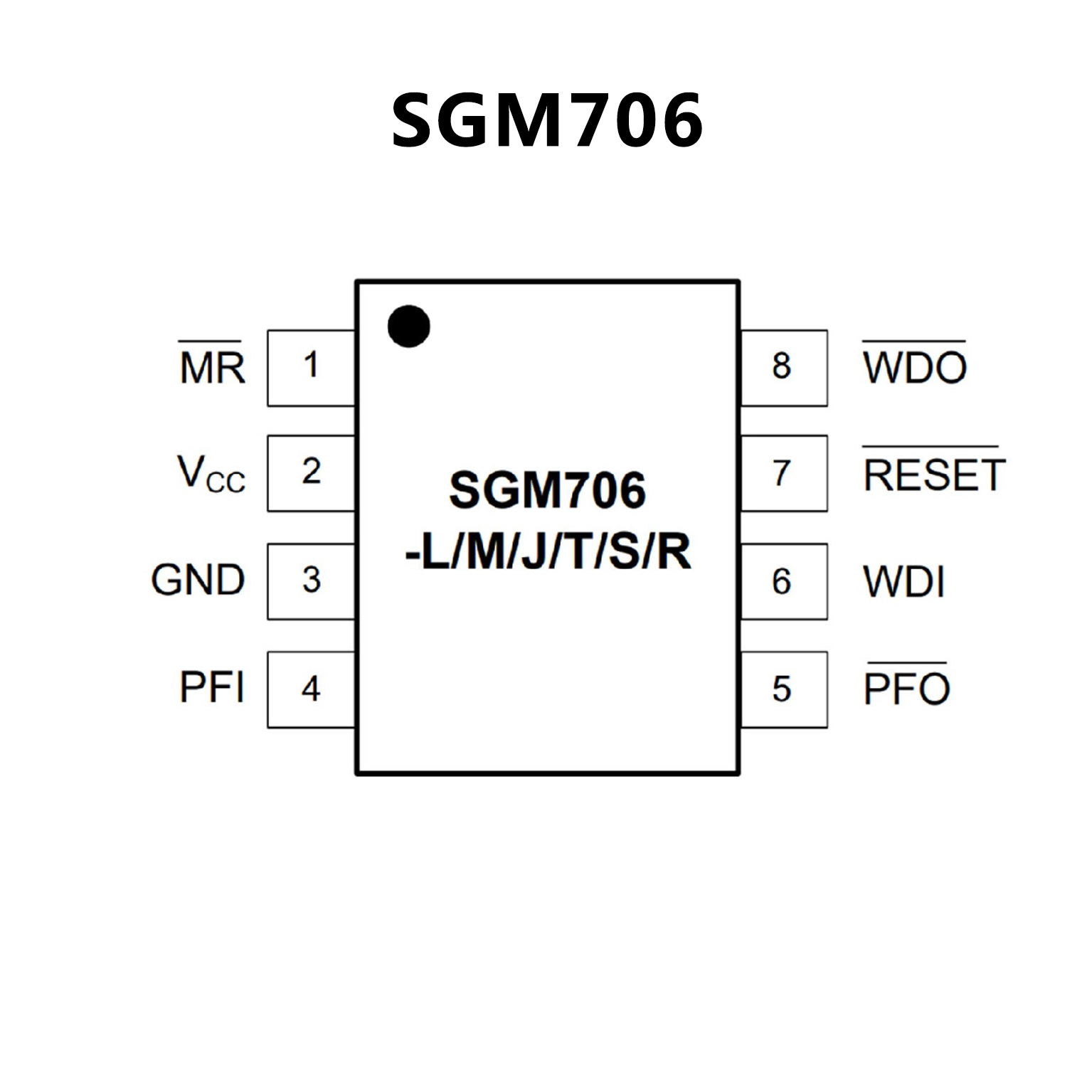

SGM706.pdf• Precision Supply-Voltage Monitor
4.65V for SGM706-L
4.40V for SGM706-M
4.0V for SGM706-J
3.08V for SGM706-T
2.93V for SGM706-S
2.63V for SGM706-R
• Guaranteed RESET Valid at VCC = 1V
• 200ms Reset Pulse Width
• Debounced TTL/CMOS-Compatible
Manual-Reset Input
• Independent Watchdog Timer
(1.6sec) Timeout
• Voltage Monitor for Power-Fail or
Low-BatteryWarning
• -40℃ to +85℃ Operating Temperature Range
• SGM706 is Available in Green SOIC-8 Package
• SGM706-S is Available in both Green
SOIC-8 andMSOP-8 Packages
• Supervisory-Function Integration
SignificantlyImproves System Reliability
While Reducing BoardSpace

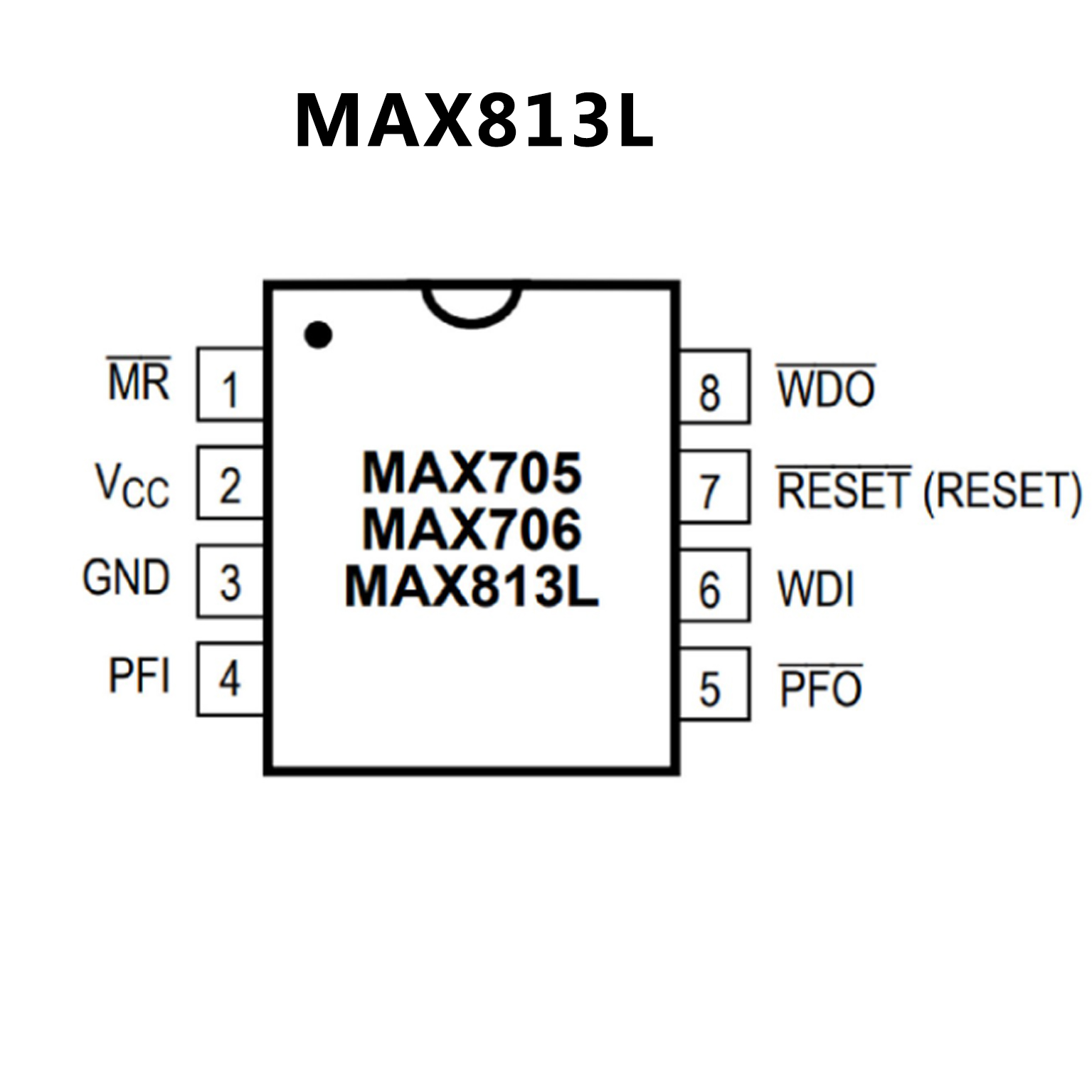

• μMAX Package
• Guaranteed RESET Valid at VCC = 1V
200ms Reset Pulse Width
Debounced TTL/CMOS
Compatible Manual-Reset Input
Active-High Reset Output
(MAX707/MAX708/MAX813L)
• Precision-Supply Voltage Monitor
4.65V (MAX705/MAX707/MAX813L)
4.40V (MAX706/MAX708)
• Voltage Monitor for Power-Fail
or Low-BatteryWarning
