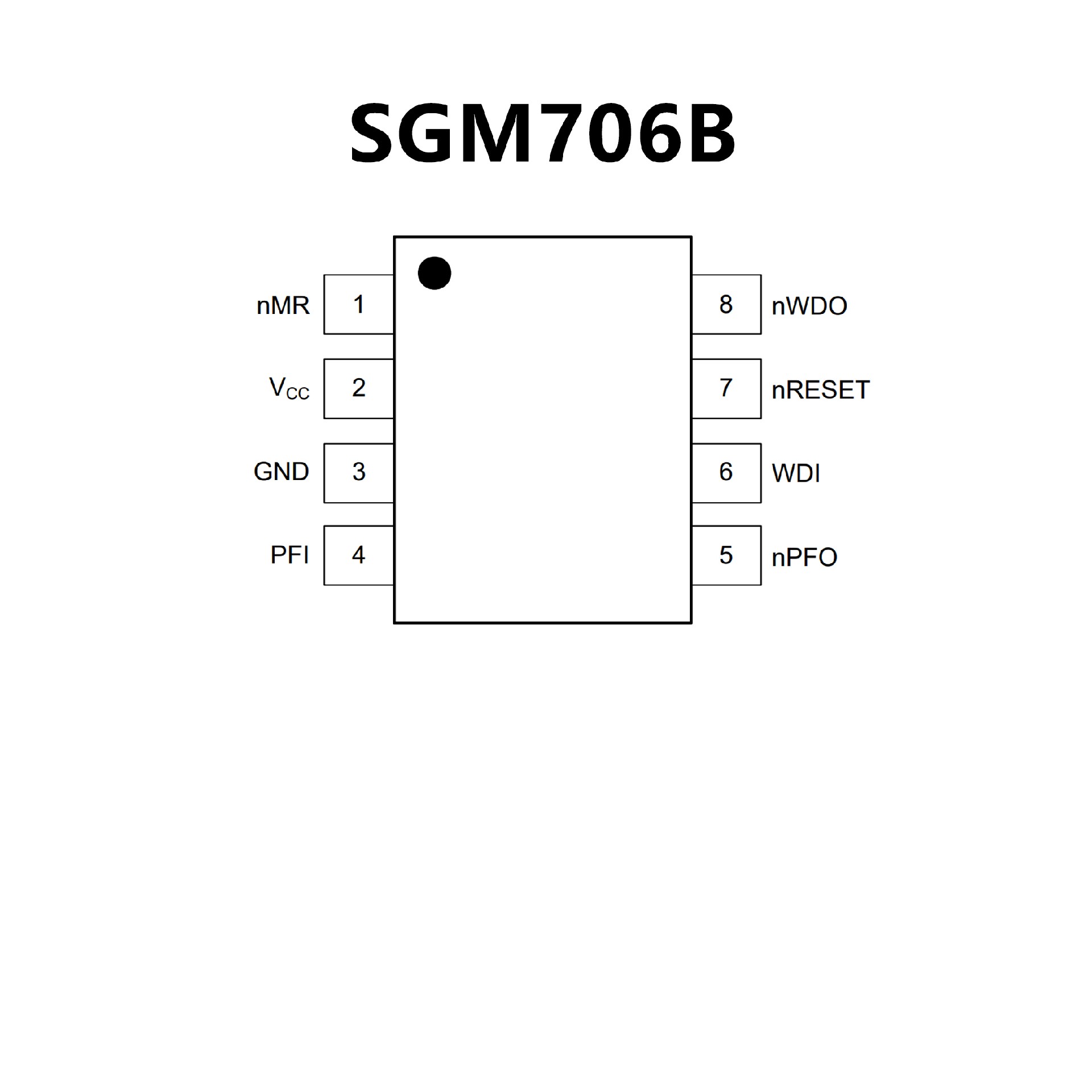

SGM706B.pdf• Ultra-Low Supply Current: < 1μA (TYP)
• Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
• Guaranteed nRESET Valid at VCC = 1V
• 200ms Reset Pulse Width
• Debounced TTL/CMOS-Compatible
• Manual Reset Input
• Independent Watchdog Timer (1.6s) Timeout
• Voltage Monitor for Power-Fail
or Low-Battery Warning
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

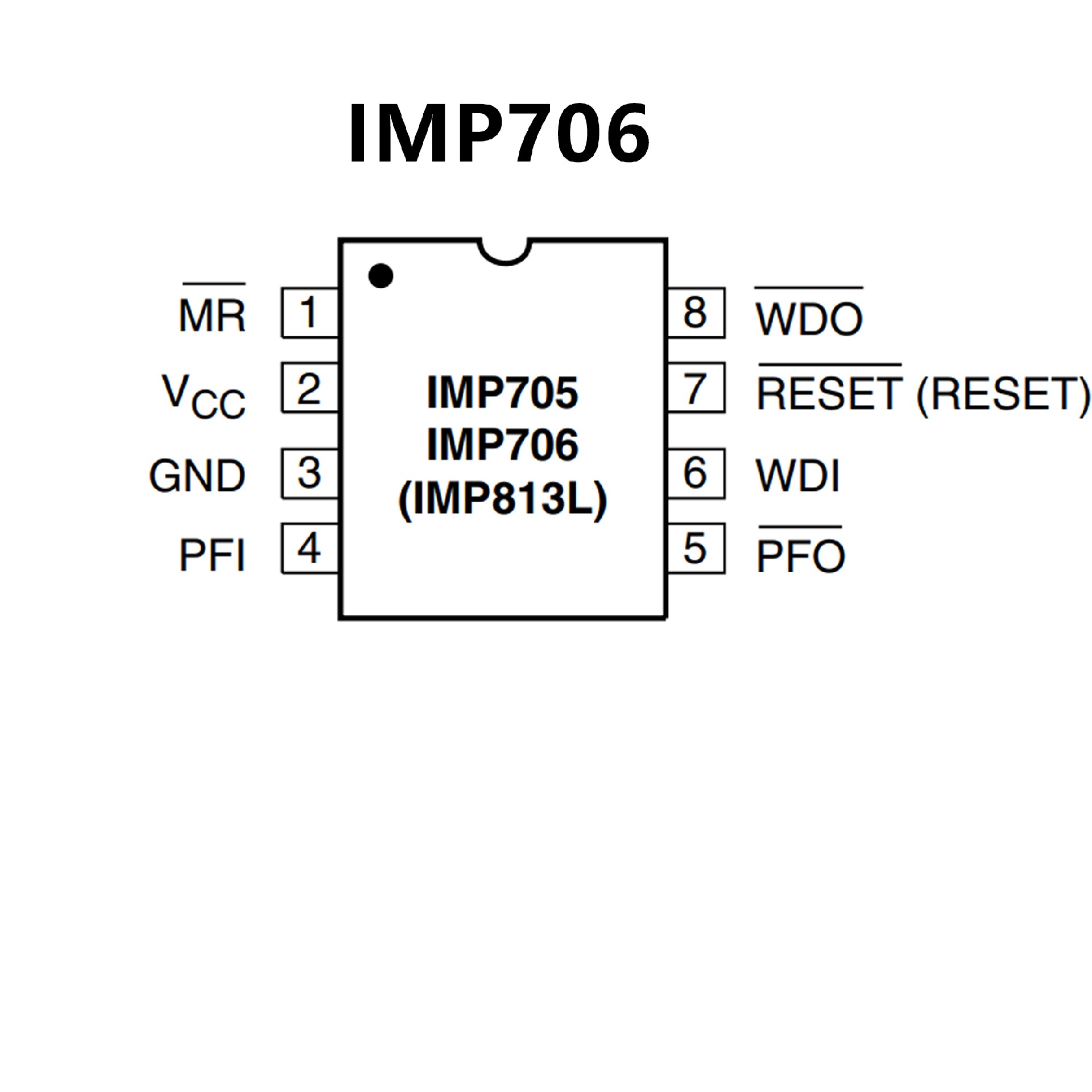

• Improved replacements for the Maxim
MAX705/6/7/8, MAX813L
140µA maximum supply current
60% improvement
• Precision power supply monitor
4.65V threshold (IMP705/707/813L)
4.40V threshold (IMP706/8)
• Debounced manual reset input
• Voltage monitor
1.25V threshold
Battery monitor/Auxiliary supply monitor
• Watchdog timer (IMP705/706/813L)
• 200ms reset pulse width
• Active HIGH reset output (IMP707/708/813L)
• MicroSO package
