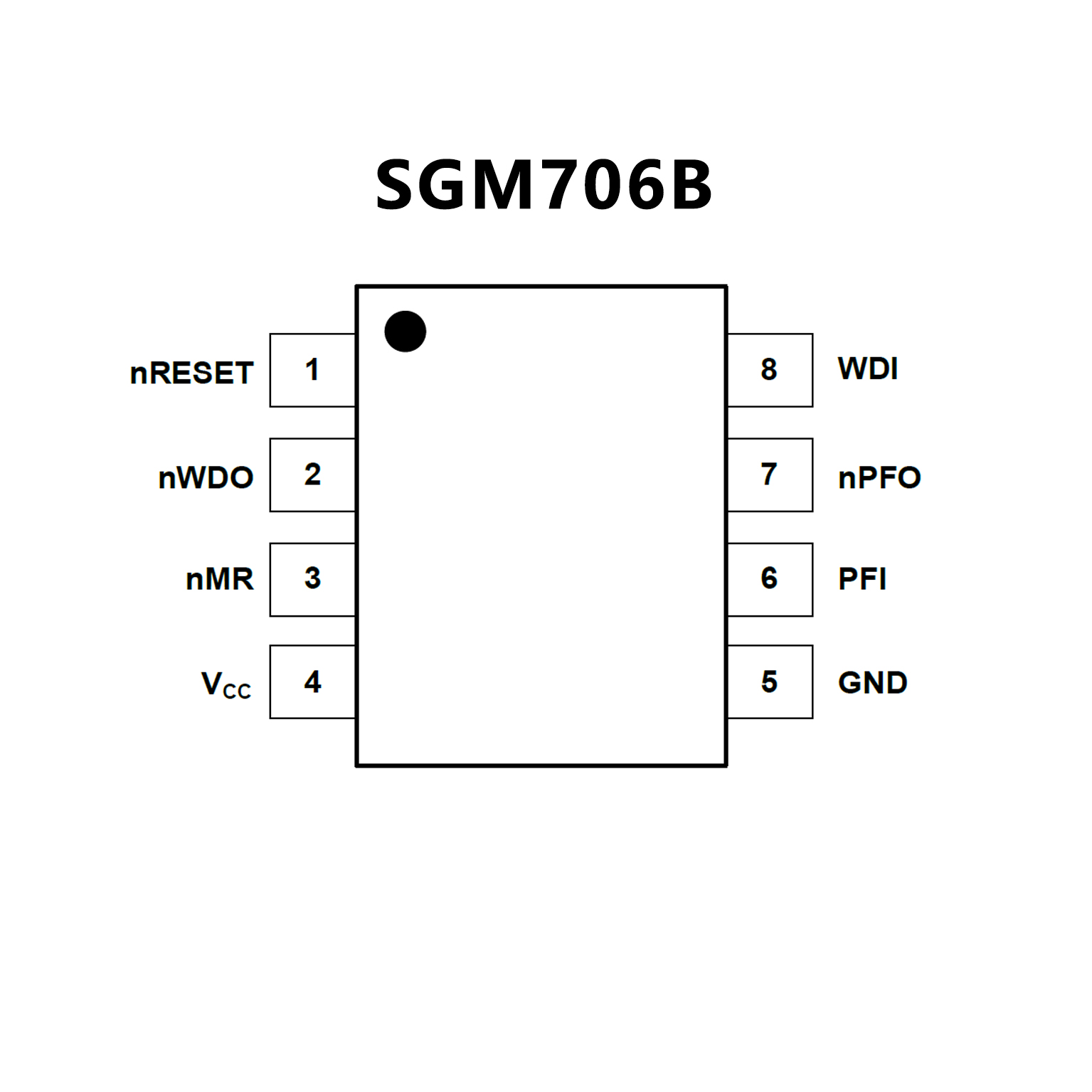

SGM706B.pdf• Ultra-Low Supply Current: < 1μA (TYP)
• Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
• Guaranteed nRESET Valid at VCC = 1V
• 200ms Reset Pulse Width
• Debounced TTL/CMOS-Compatible
• Manual Reset Input
• Independent Watchdog Timer (1.6s) Timeout
• Voltage Monitor for Power-Fail
or Low-Battery Warning
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Supervisory-Function Integration Significantly
Improves System Reliability While Reducing Board Space
• μMAX Package
• Guaranteed RESET Valid at VCC = 1V
200ms Reset Pulse Width
Debounced TTL/CMOS-Compatible Manual-Reset Input
Active-High Reset Output (MAX707/MAX708/MAX813L)

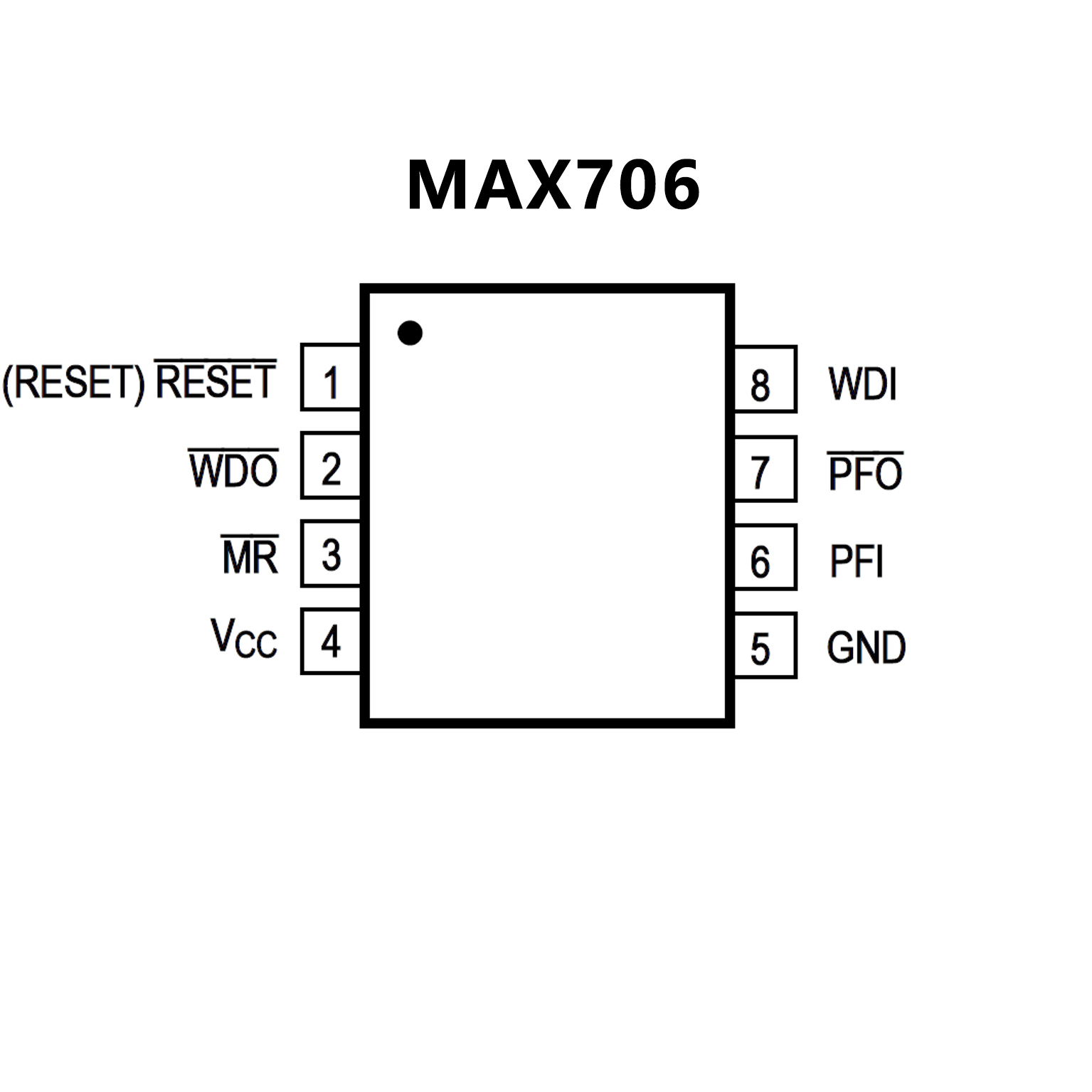

• Precision-Supply Voltage Monitor
4.65V (MAX705/MAX707/MAX813L)
4.40V (MAX706/MAX708)
• Voltage Monitor for Power-Fail or Low-Battery Warning
