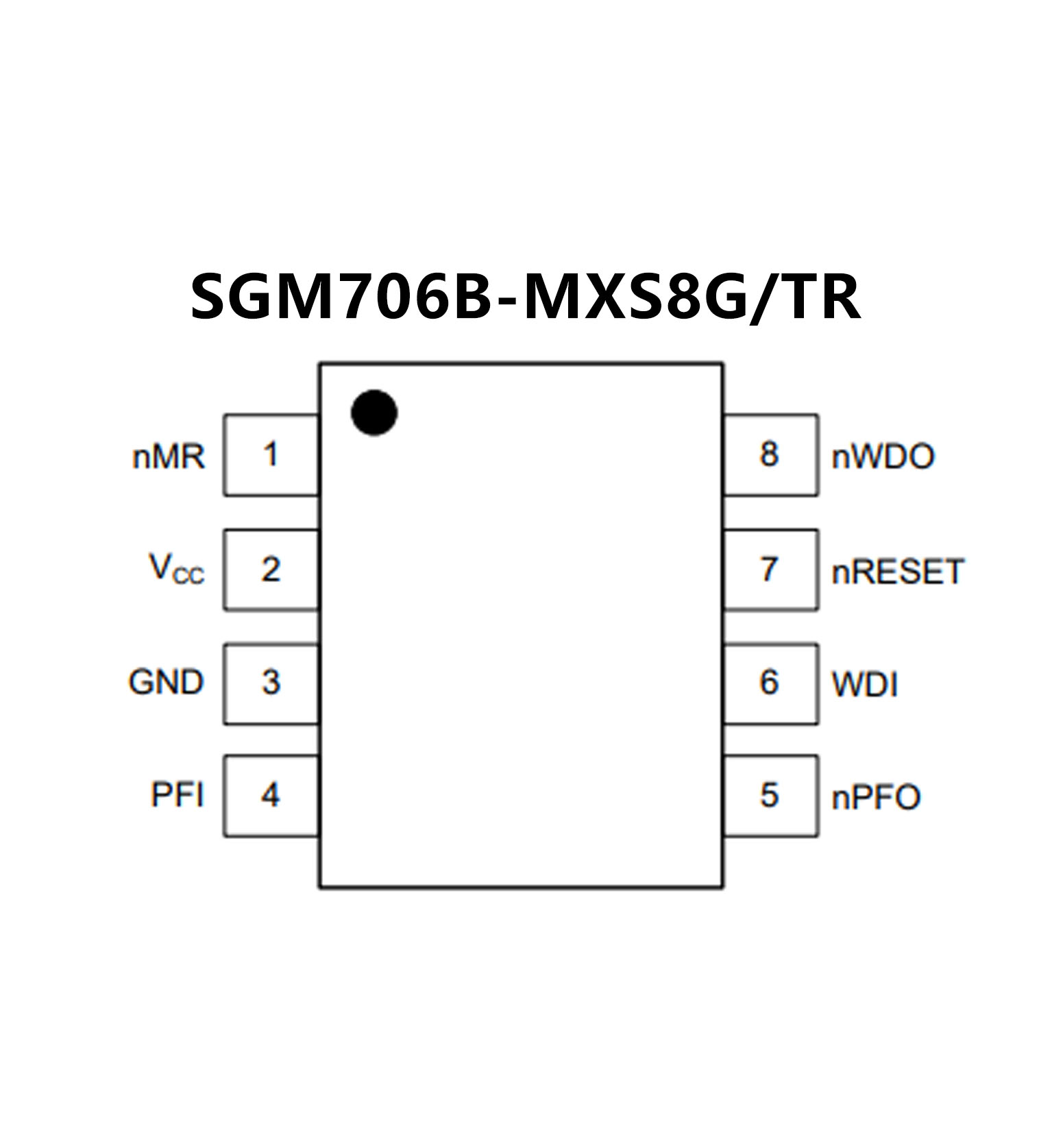

SGM706B.pdf• Ultra-Low Supply Current: < 1μA (TYP)
• Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
• Guaranteed nRESET Valid at VCC = 1V
• 200ms Reset Pulse Width
• Debounced TTL/CMOS-Compatible
• Manual Reset Input
• Independent Watchdog Timer (1.6s) Timeout
• Voltage Monitor for Power-Fail or Low-Battery
Warning
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

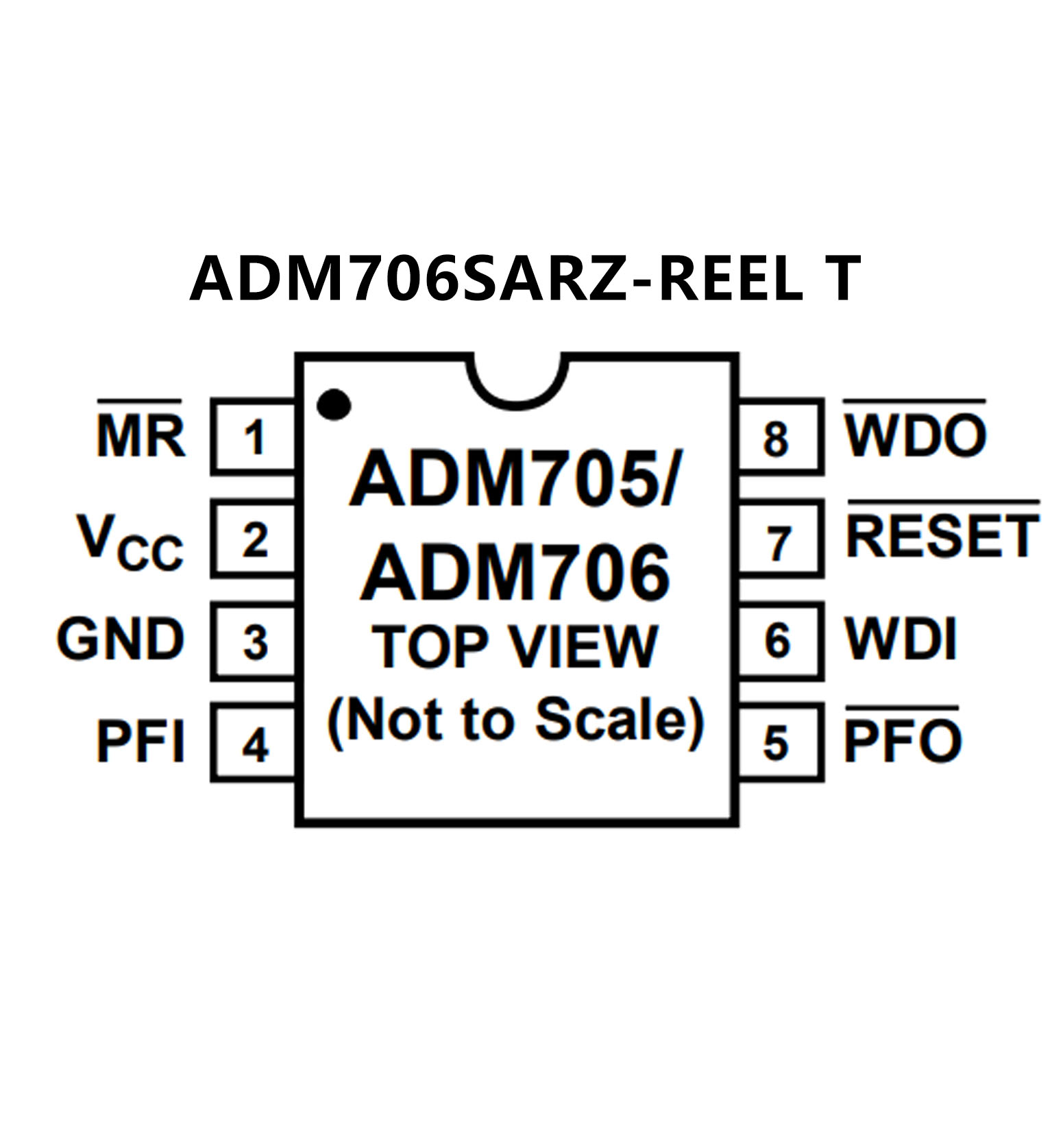

• Guaranteed RESET valid with VCC = 1 V
• 190 μA quiescent current
• Precision supply voltage monitor
4.65 V (ADM705/ADM707)
4.40 V (ADM706/ADM708)
• 200 ms reset pulse width
• Debounced TTL/CMOS manual reset input (MR)
• Independent watchdog timer (ADM705/ADM706)
• 1.60 sec timeout (ADM705/ADM706)
• Active high reset output (ADM707/ADM708)
• Voltage monitor for power fail or low battery warning
• Superior upgrade for MAX705 to MAX708
