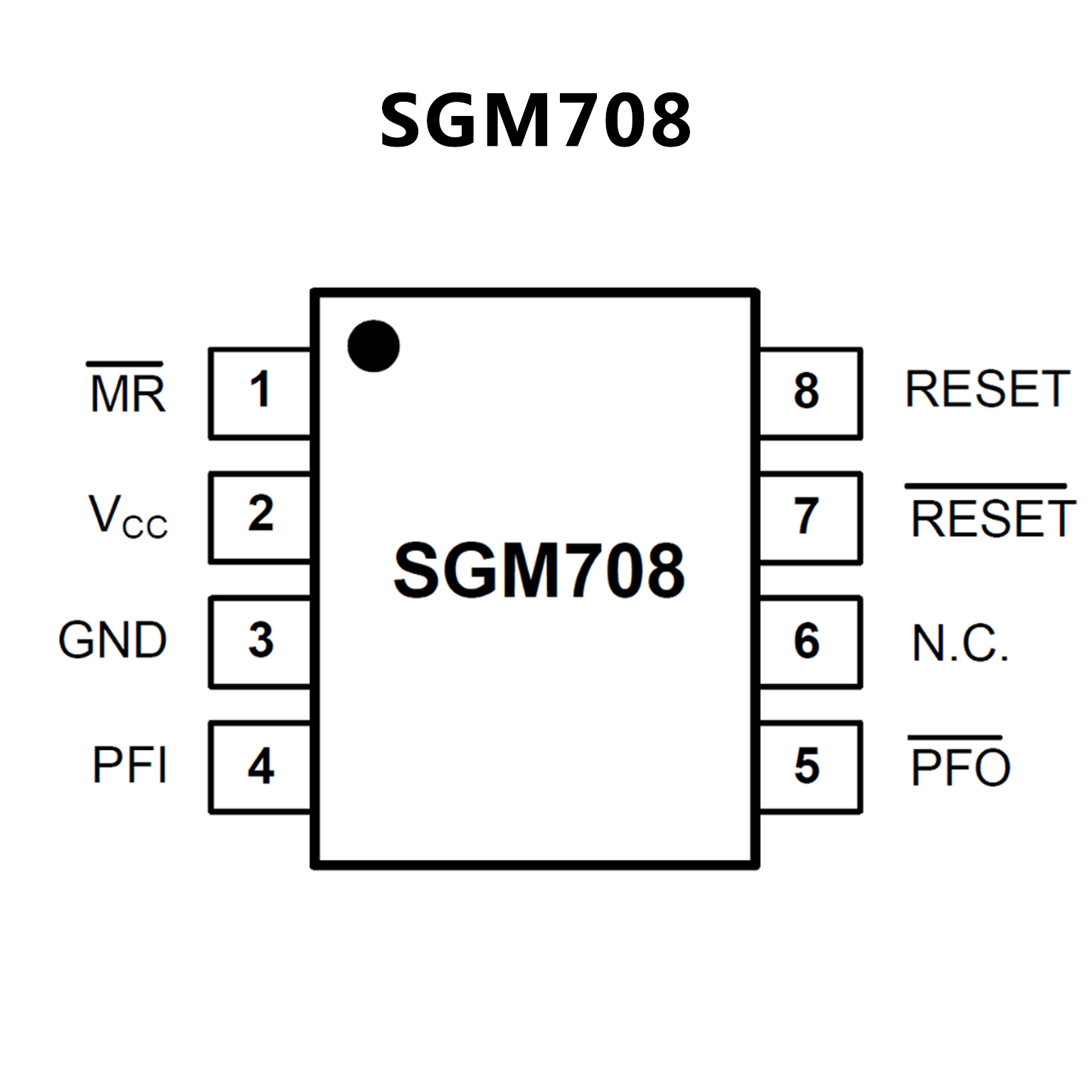

SGM708.pdf• Precision Supply-Voltage Monitor
4.65V for SGM708-L
4.40V for SGM708-M
4.0V for SGM708-J
3.08V for SGM708-T
2.93V for SGM708-S
2.63V for SGM708-R
• Guaranteed RESET Valid at VCC = 1V
• 200ms Reset Pulse Width
• Debounced TTL/CMOS-Compatible
Manual-Reset Input
• Voltage Monitor for Power-Fail or Low-Battery Warning
• Dual Reset Outputs (Active-low and Active-High )
• –40℃ to +85℃ Operating Temperature Range
• Green SOP8 Package
• Supervisory-Function Integration Significantly
Improves System Reliability While Reducing Board Space
• μMAX Package
• Guaranteed RESET Valid at VCC = 1V
200ms Reset Pulse Width
Debounced TTL/CMOS-Compatible Manual-Reset Input
Active-High Reset Output (MAX707/MAX708/MAX813L)
• Precision-Supply Voltage Monitor
4.65V (MAX705/MAX707/MAX813L)
4.40V (MAX706/MAX708)
• Voltage Monitor for Power-Fail or Low-Battery Warning
