Octal, 12-/14-/16-Bit, SPI Voltage Output denseDAC with 5 ppm/°C, On-Chip Reference, Replace AD5668.
SGM71612
SGM71612.pdf
SGM71612.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• On-Chip 1.25V/2.5V, 10ppm/℃ Reference
SGM71612R81Z: 1.25V
SGM71612R82Z/SGM71612R82M/SGM71612R83M:
2.5V
• Power Down to 500nA (TYP) at 5V, 300nA (TYP) at 3V
• Monotonicity Guaranteed by Design
• Power-On Reset to Zero-Scale or Mid-Scale
SGM71612R81Z/SGM71612R82Z:
Power-On Reset to Zero
• SGM71612R82M/SGM71612R83M:
Power-On Reset to Mid-Scale
• 3 Power-Down Modes
• Hardware nLDAC and nLDAC Override Function
• nCLR Function to Programmable Code
• Rail-to-Rail Buffered Voltage-Output Operation
• Available in Green TSSOP-16, TQFN-4×4-16BL
and FOCSP-2.6×2.6-16B Packages

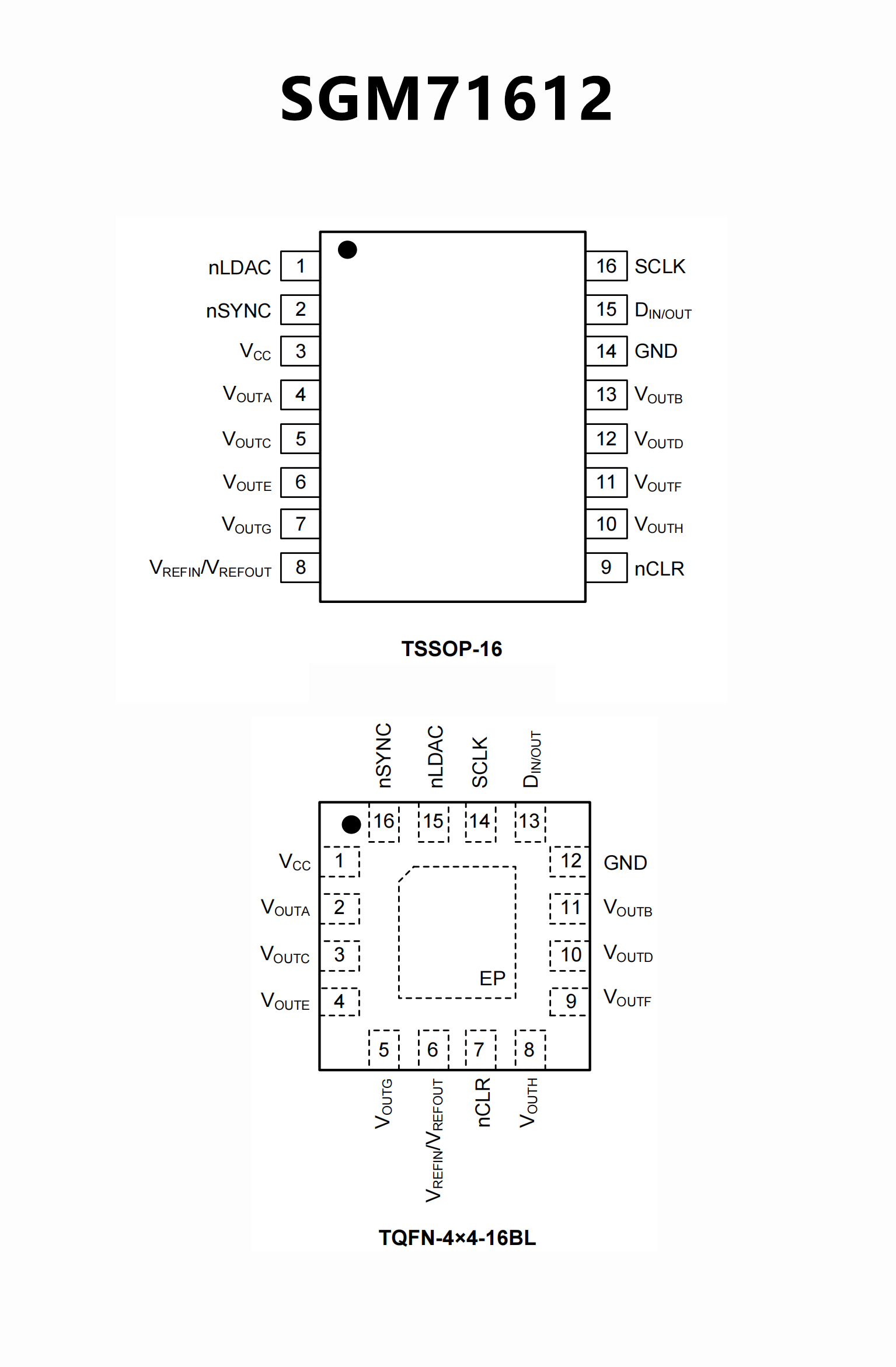

PIN CONFIGUTION
优势替代
FEATURES
• Low power, small footprint, pin-compatible octal DACs
AD5668: 16 bits
AD5648: 14 bits
AD5628: 12 bits
• 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP
• On-chip 1.25 V/2.5 V, 5 ppm/°C reference
• Power down to 400 nA at 5 V, 200 nA at 3 V
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale or midscale
• 3 power-down functions
• Hardware LDAC and LDAC override function
• CLR function to programmable code
• Rail-to-rail operation

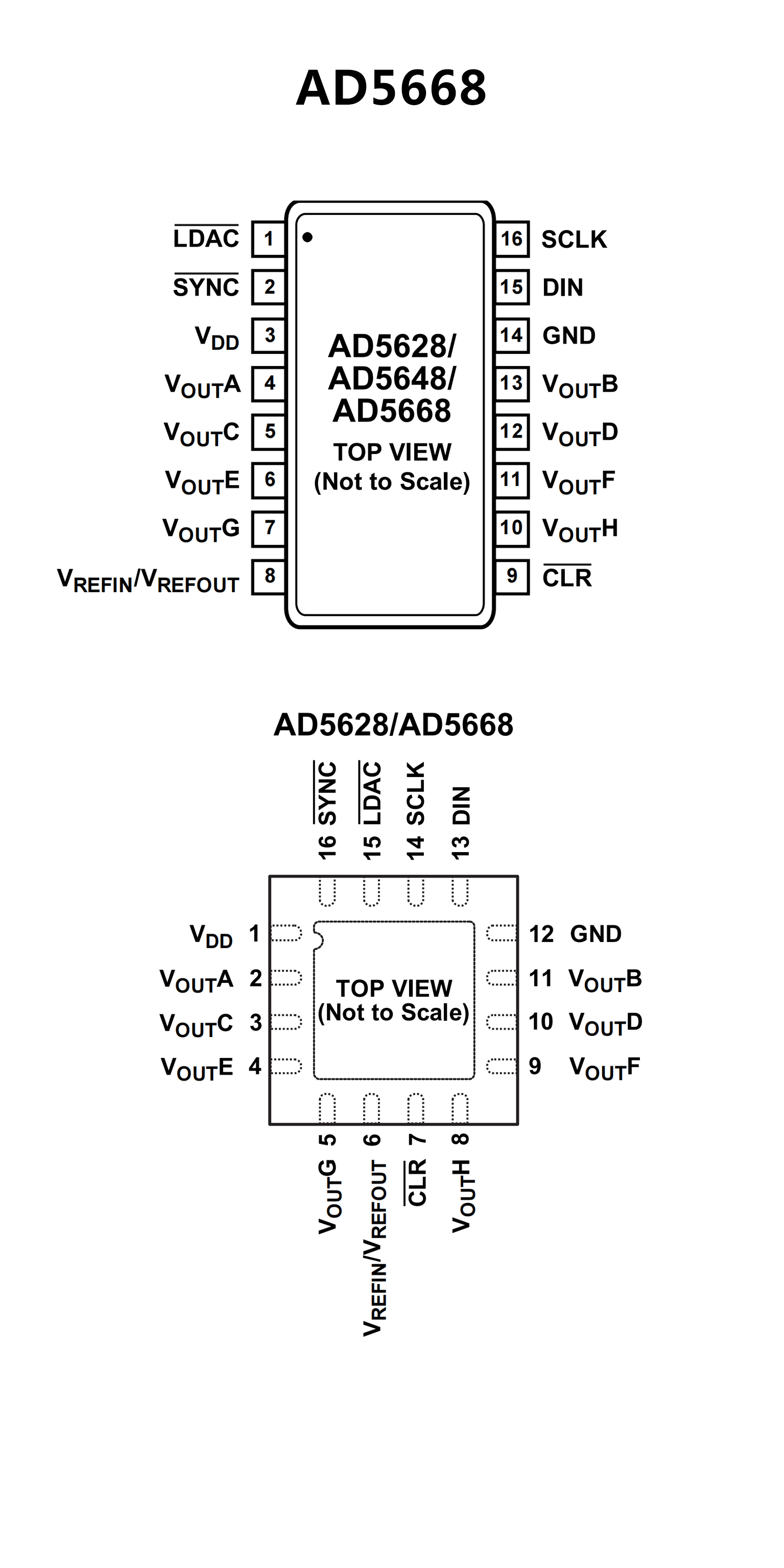

PIN CONFIGUTION
