0.1-3.0GHz SP3T Switch,SGM72003 Replace MXD8631.
SGM72003
SGM72003.pdf
SGM72003.pdfFEATURES
• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 3GHz
• Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
• High Isolation: 20dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTDFN-1.1×1.1-9L Package

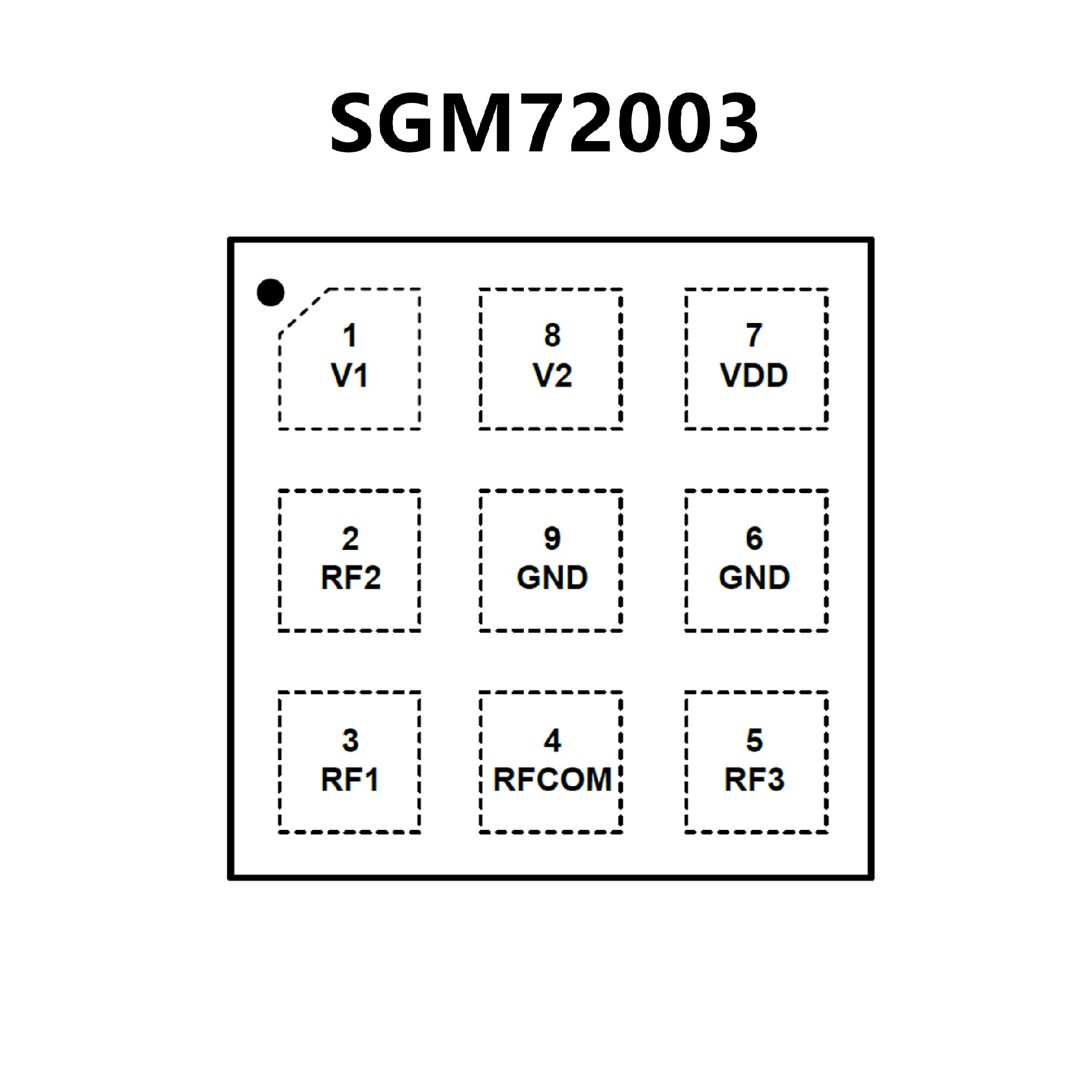

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.1 to 3.0 GHz
• Low insertion: 0.50 dB @ 2.7 GHz
• High isolation: 25 dB up to 2.7 GHz
• No external DC blocking capacitors required
• Positive low voltage control: VC = 1.6 to 3.00
V, VDD = 2.5 to 3.0 V
• Small, QFN (9-pin, 1.15mm x 1.15mm x
0.55mm) package

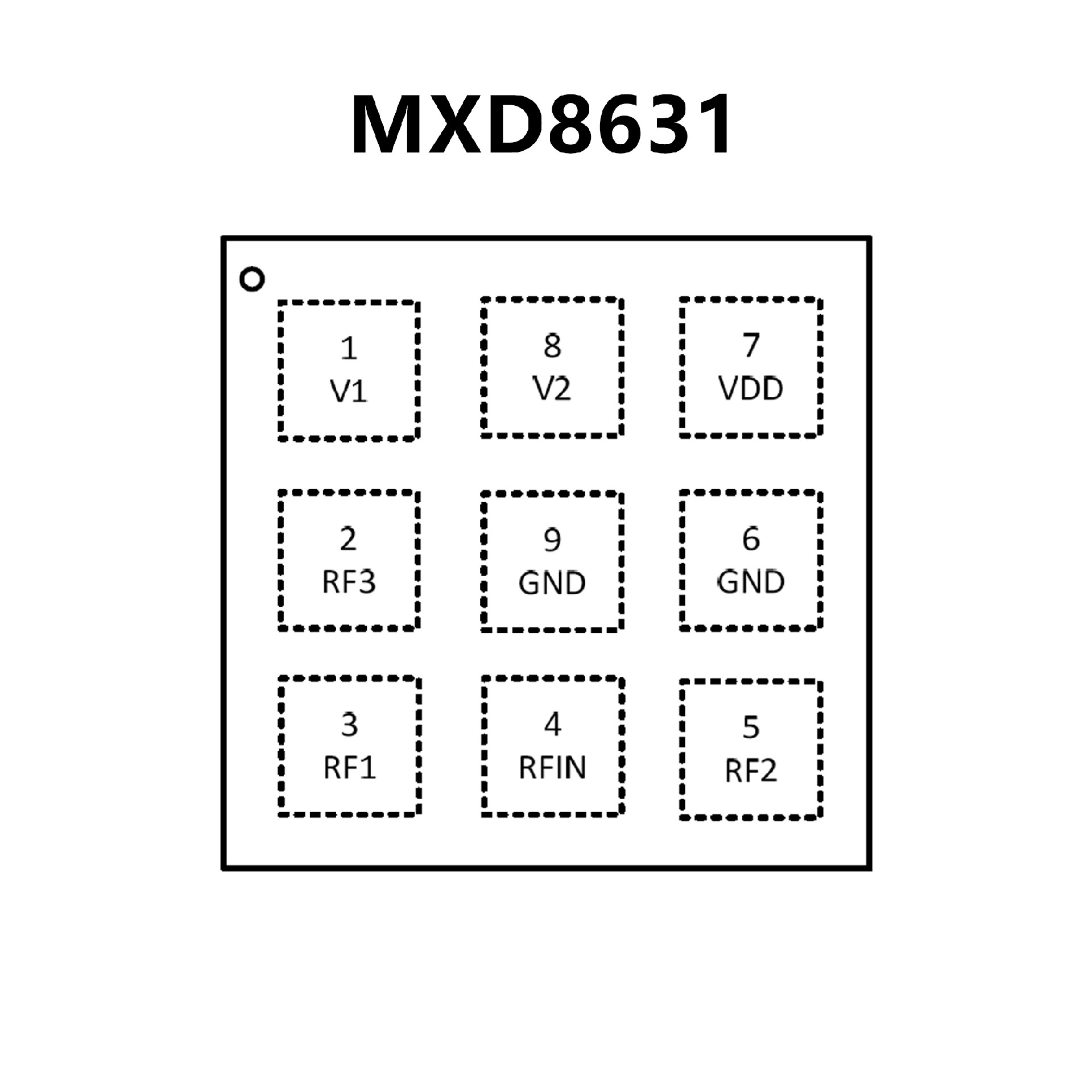

PIN CONFIGUTION
