700 - 2700 MHz 4G Routing & Diversity SP3T Switch,Replace RF1628.
SGM72003
SGM72003.pdf
SGM72003.pdfFEATURES
• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 3GHz
• Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
• High Isolation: 20dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTDFN-1.1×1.1-9L Package

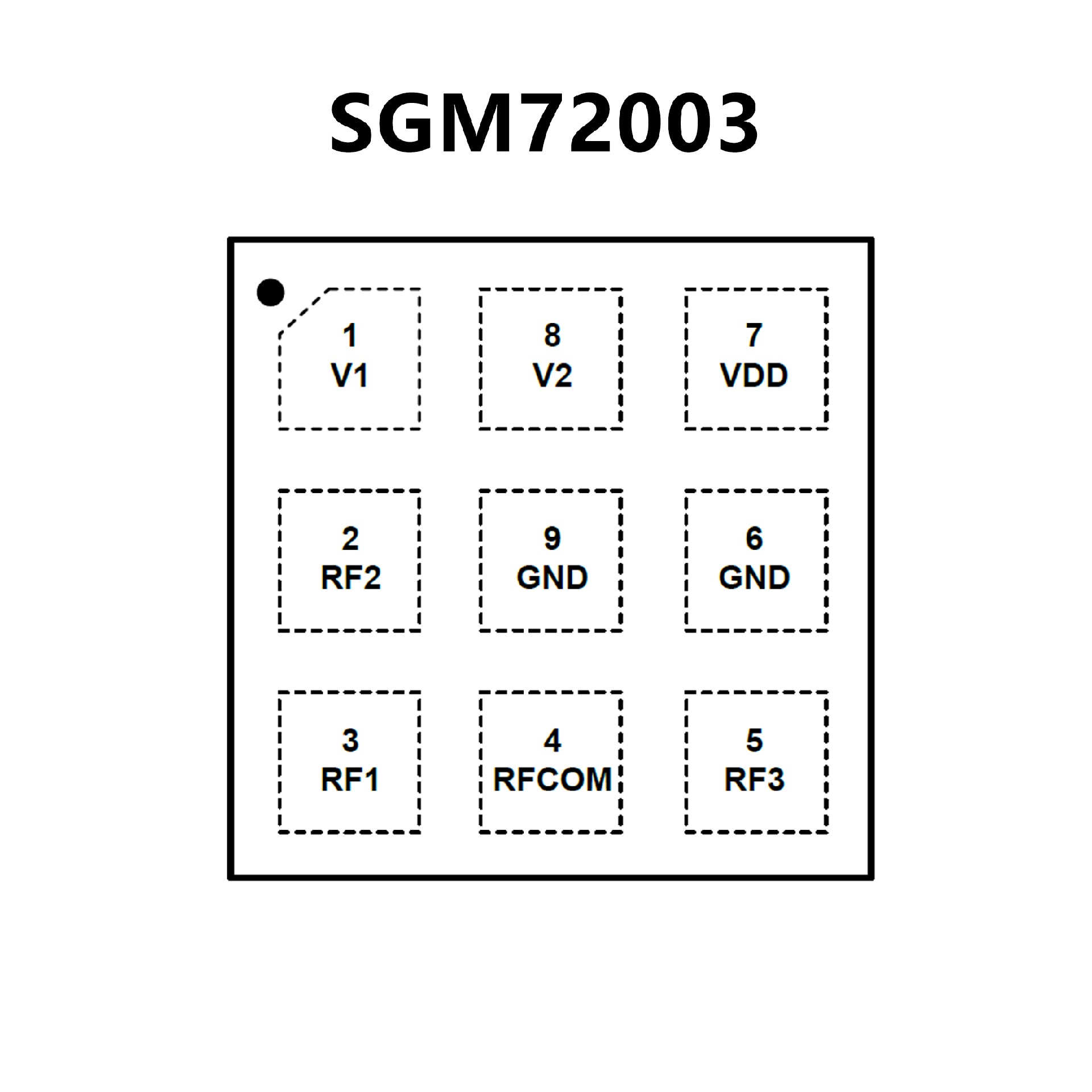

PIN CONFIGUTION
优势替代
FEATURES
• Broadband performance suitable for all cellular
modulation schemes up to 2.7GHz
• Excellent insertion loss and isolation performance
• 0.5 dB Typ IL @ 2.7GHz
• Exceptional linearity performance ideal for CDMA,
WCDMA applications
• Very low current consumption
• Very Compact 1.1mmx1.1mm module
• No External DC blocking Capacitors Required on RF
Paths unless DC is applied externally

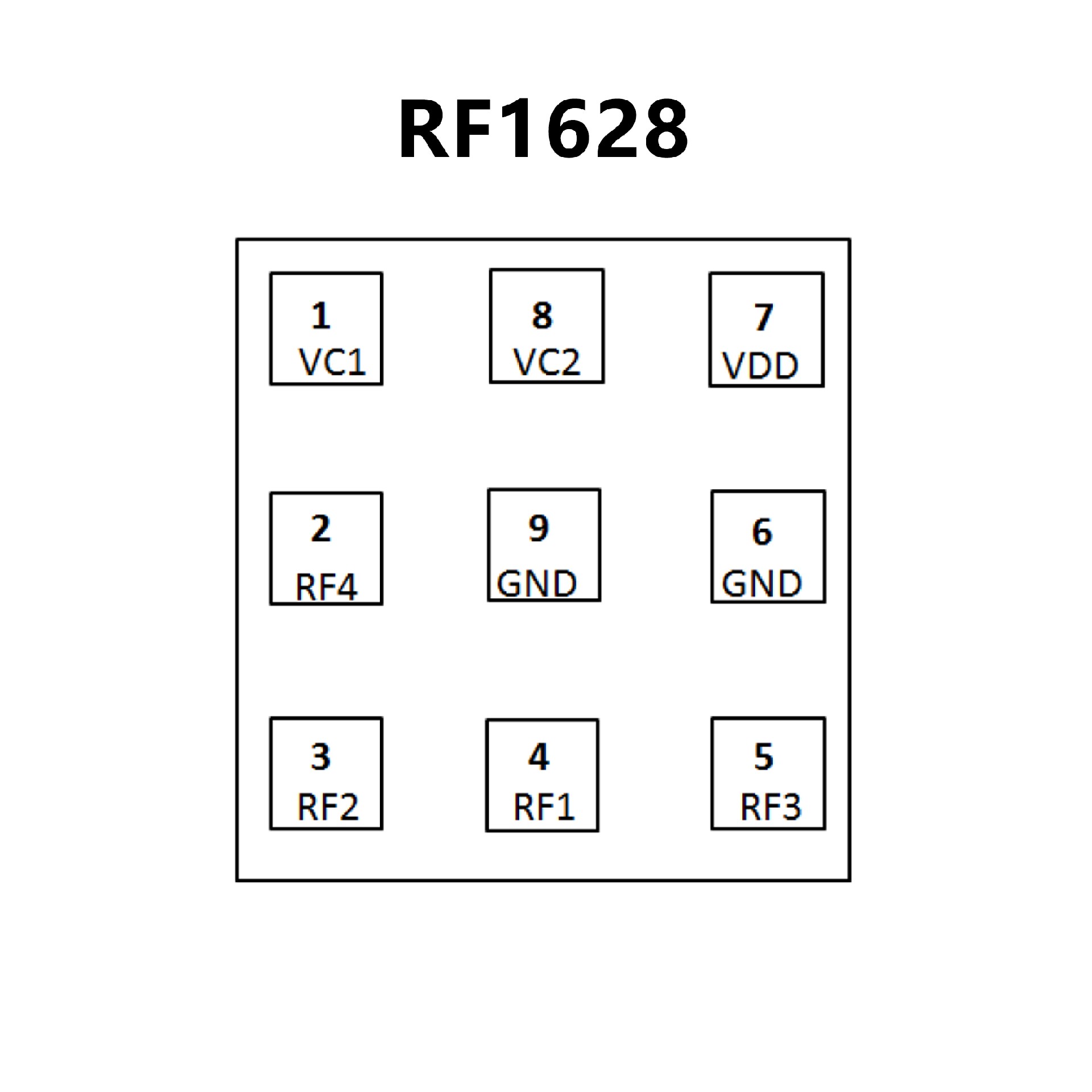

PIN CONFIGUTION
