0.4 to 3.8 GHz SP4T Switch,SGM72004A Replace SKY13626.
SGM72004A
SGM72004A.pdf
SGM72004A.pdfFEATURES
• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 3GHz
• Advanced Silicon-On-Insulator (SOI) Process
• Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
• High Isolation: 18dB (MIN) at 2.7GHz
• No External DC Blocking Capacitors Required
• Available in a Green ULGA-1.1×1.1-9L Package

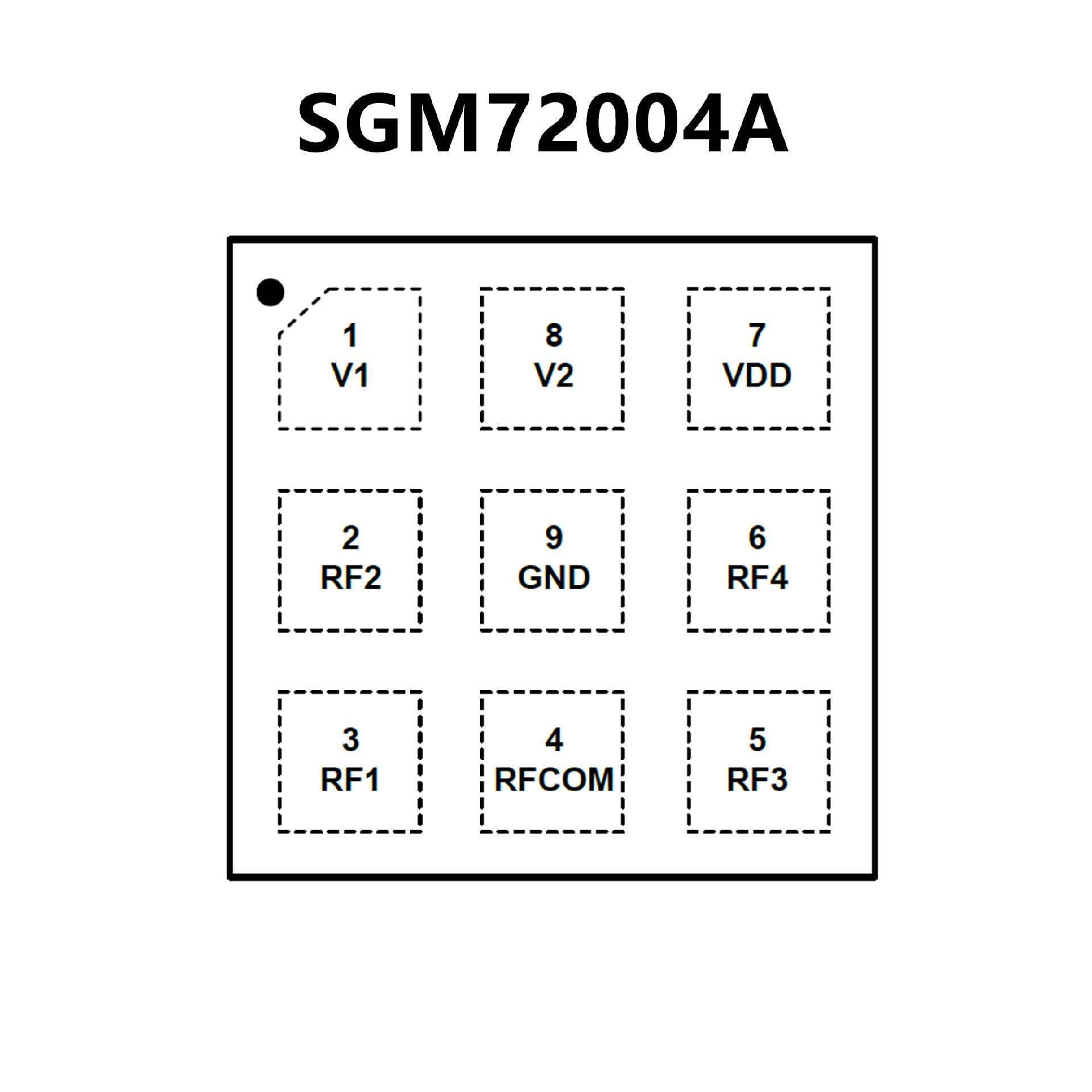

PIN CONFIGUTION
优势替代

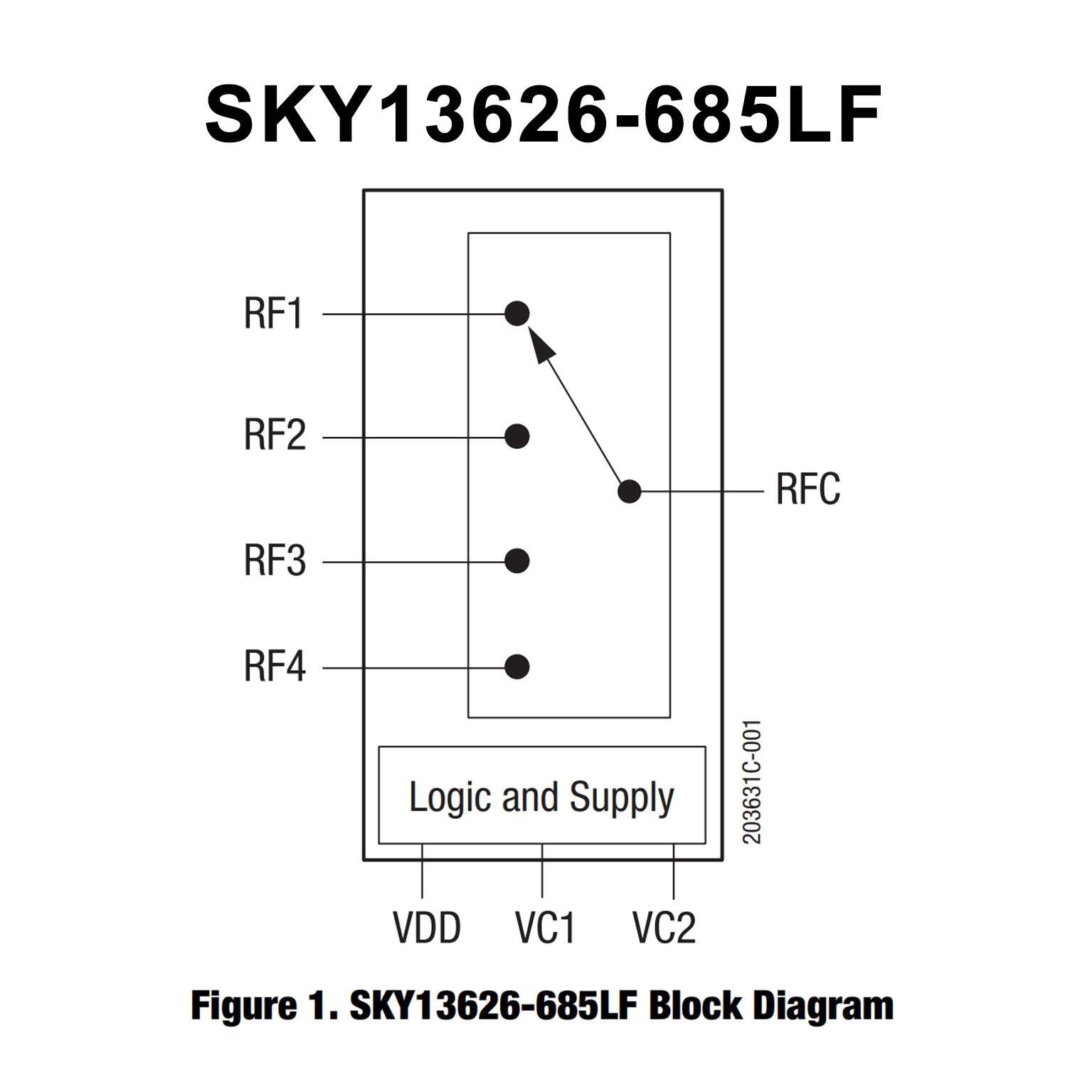

FEATURES
• Broadband frequency range: 0.4 to 3.8 GHz
• Low insertion loss
• High isolation
• Integrated GPIO interface
• No DC blocking capacitors required
• Lead (Pb)-free and RoHS-compliant
• Small-size QFN (9-pin, 1.1 ´ 1.1 ´ 0.5 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
PIN CONFIGUTION
