0.1GHz – 3GHz SP4T Antenna Switch,SGM72004A Replace WS7854.
SGM72004A
SGM72004A.pdf
SGM72004A.pdfFEATURES
• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 3GHz
• Advanced Silicon-On-Insulator (SOI) Process
• Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
• High Isolation: 18dB (MIN) at 2.7GHz
• No External DC Blocking Capacitors Required
• Available in a Green ULGA-1.1×1.1-9L Package

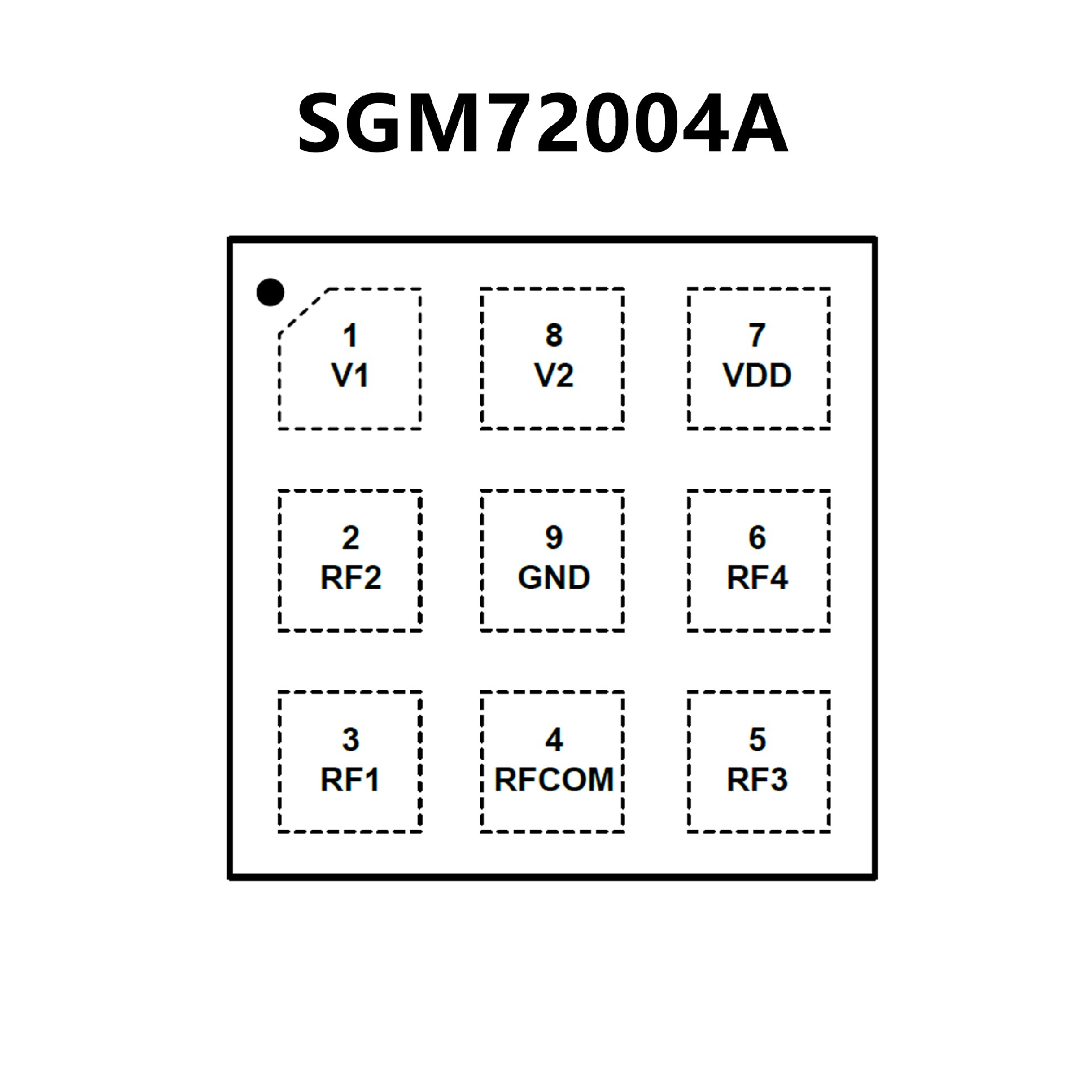

PIN CONFIGUTION
优势替代
FEATURES
• Small, low profile package 1.1mm x 1.1mm x
0.55mm
• Working frequency up to 3GHz
• Very low insertion loss
• Excellent isolation performance
• Low power consumption
• Exceptional linearity performance for WCDMA/
LTE application
• Low harmonic generation
• Very good ESD performance

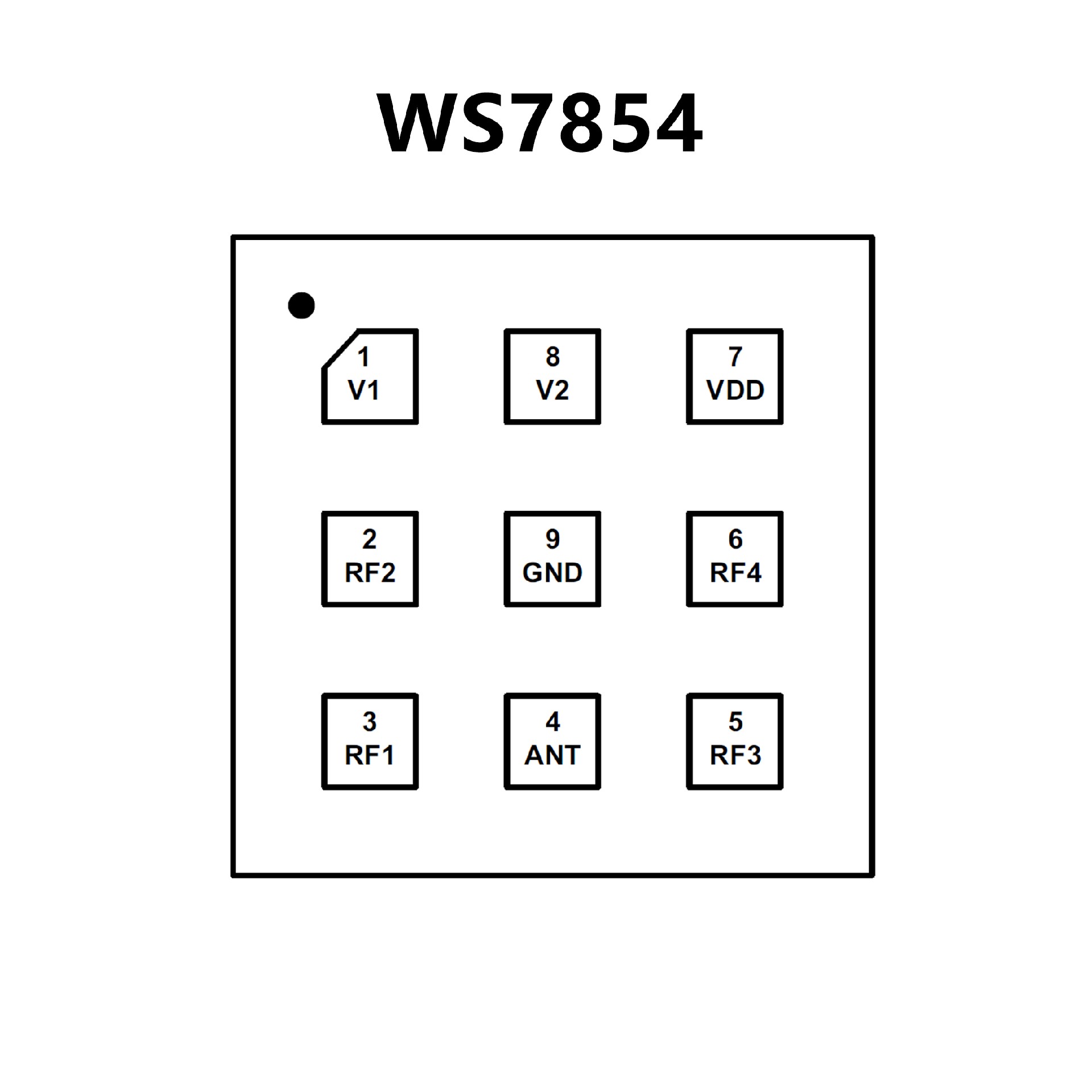

PIN CONFIGUTION
