0.1 to 6.0 GHz SP6T Antenna Switch,SGM72006 Replace SKY13416.
SGM72006
SGM72006.pdf
SGM72006.pdfFEATURES
• Supply Voltage Range: 2.4V to 3.4V
• GPIO Controller
• Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
• Operating Frequency Range: 0.1GHz to 3GHz
• High Isolation: 20dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-2×2-14L Package

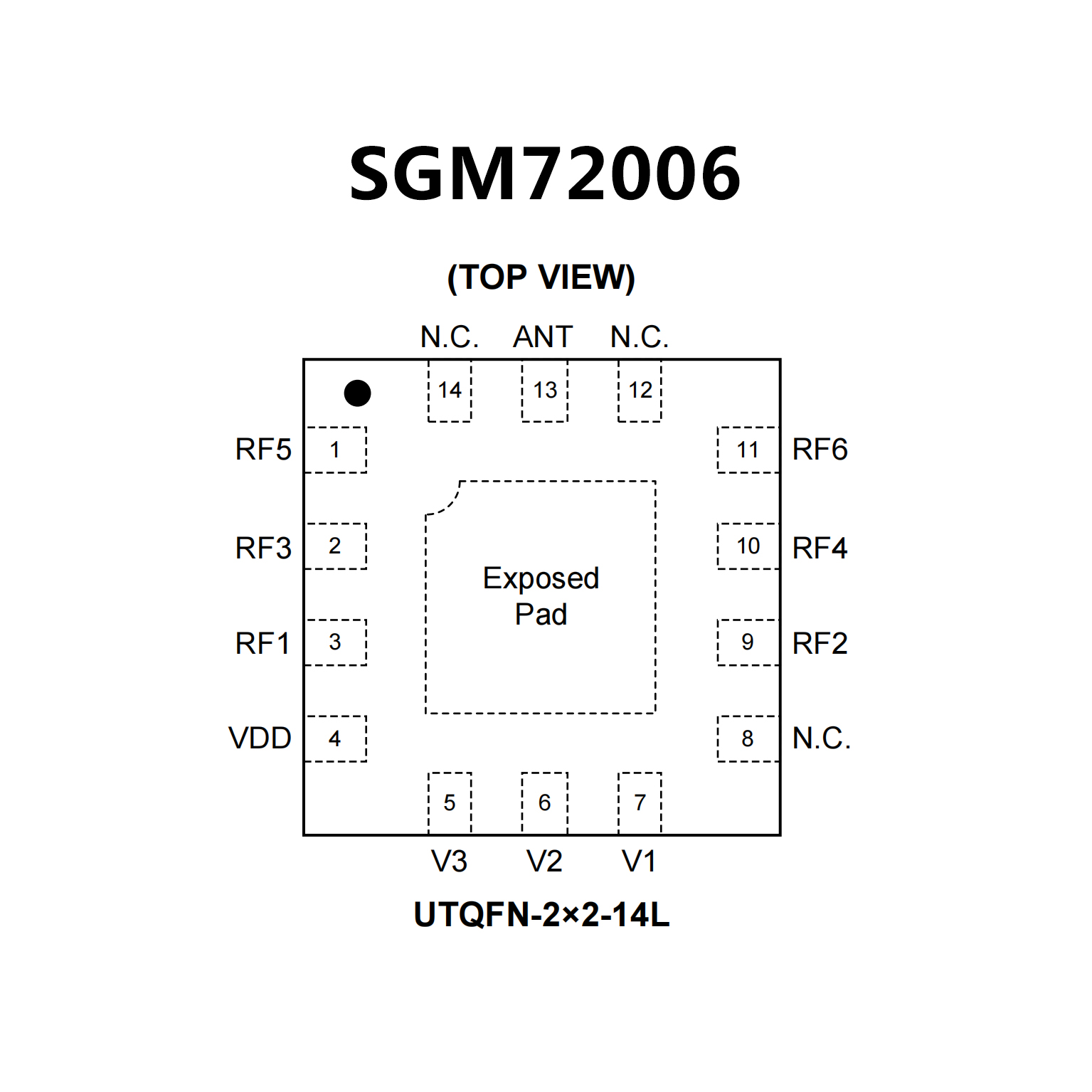

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.1 to 6.0 GHz
• Low insertion loss: 0.6 dB typical @ 5.0 GHz
• High isolation: >26 dB @ 2.7 GHz
• Integrated logic
• Small QFN (14-pin, 2.0 x 2.0 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

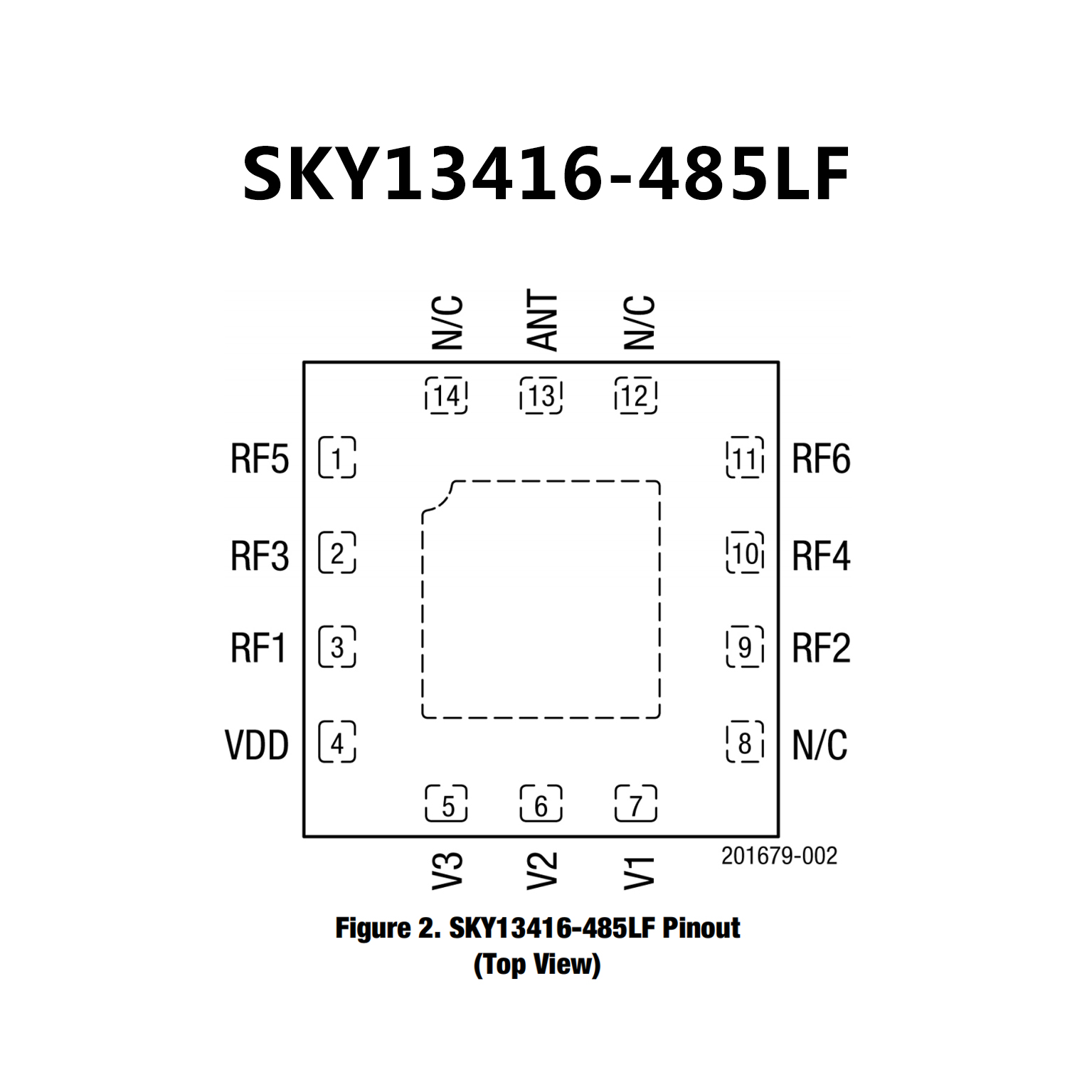

PIN CONFIGUTION
