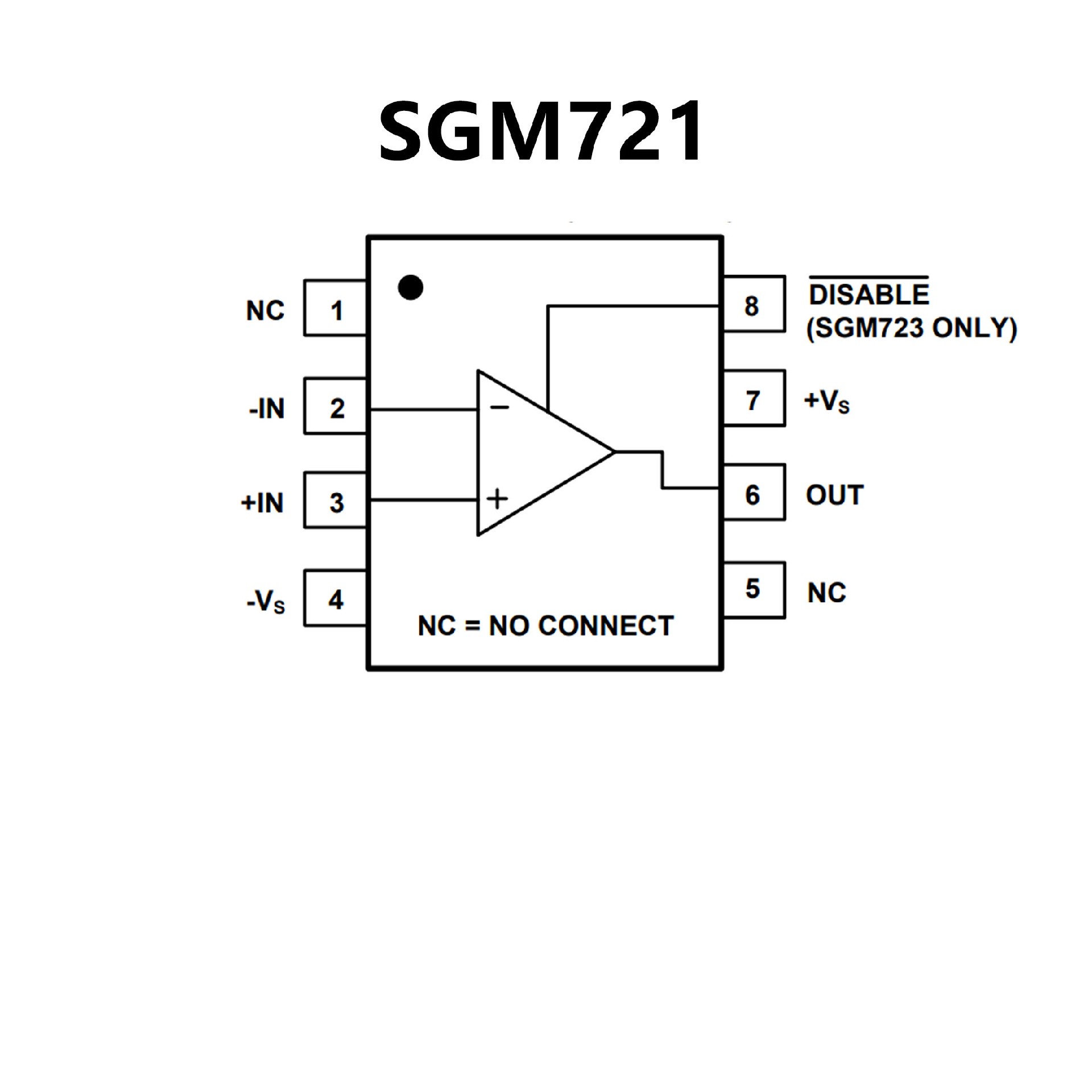

SGM721.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM721 Available in Green SC70-5,SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8 SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages
• Low Input Voltage-Noise Density: 4.5nV/√Hz
• Low Input Current-Noise Density: 0.5fA/√Hz
• Low Distortion: 0.0002% THD+N (1kΩ load)
• Single-Supply Operation from +2.7V to +5.5V
• Input Common-Mode Voltage Range IncludesGround
• Rail-to-Rail Output Swings with a 1kΩ Load
• 10MHz GBW Product, Unity-Gain Stable
(MAX4475–MAX4478)

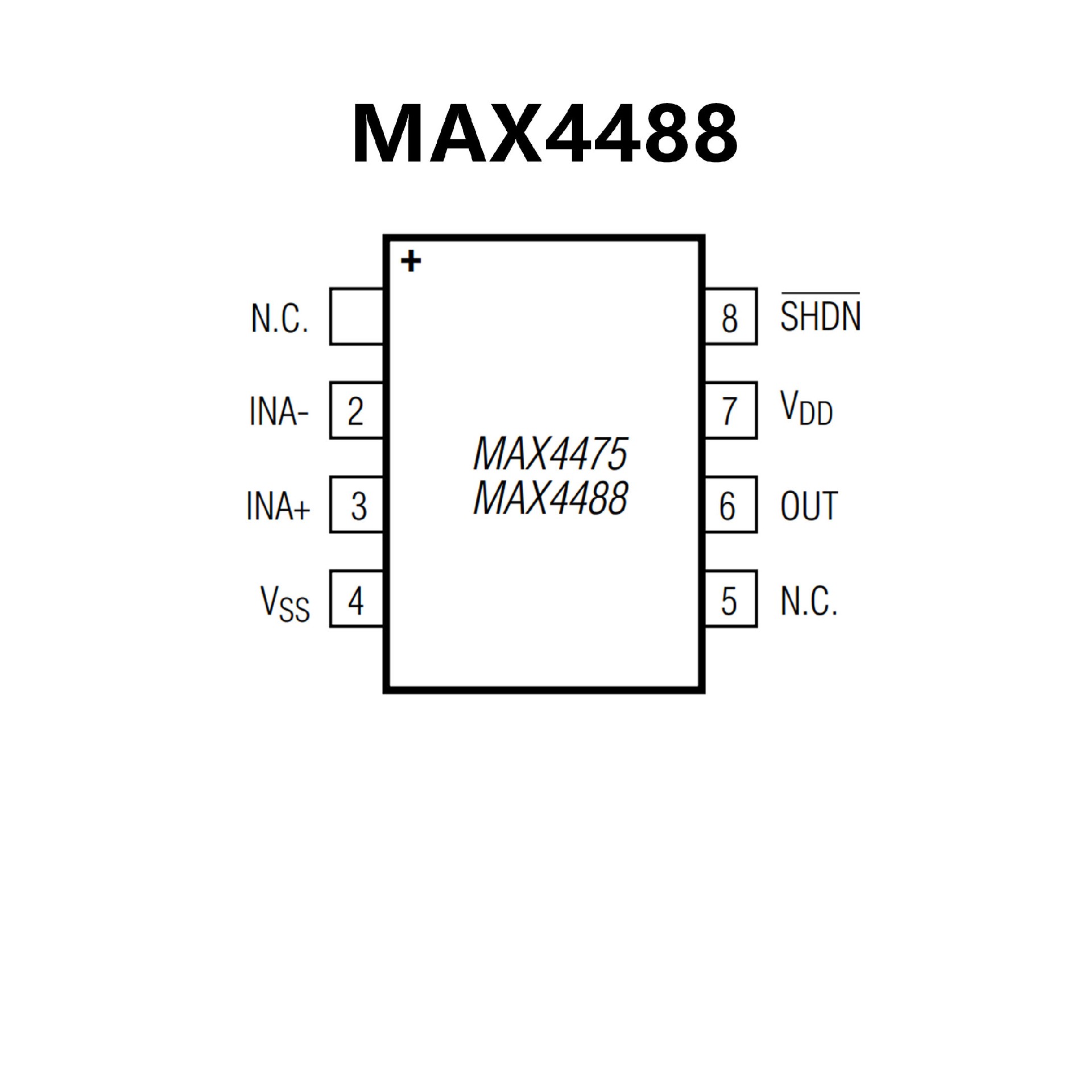

• 42MHz GBW Product, Stable with AV ≥ +
5V/V(MAX4488/MAX4489)
• Excellent DC CharacteristicsVOS = 70µVIBIAS = 1pA
Large-Signal Voltage Gain = 120dB
• Low-Power Shutdown Mode: Reduces Supply
Current to 0.01µAPlaces Output in High-Impedance State
• Available in Space-Savin
