SP8T Switch with MIPI for LTE Diversity,SGM72109 Replace MXD8686.
SGM72109.pdf优势替代
FEATURES
• Excellent insertion loss
0.50 dB Insertion Loss at 2.7GHz
• P0.1dB @ 27dBm
• Multi-Band operation 700MHz to 3000MHz
• RFFE serial control interface
• Compact 2mm x 2mm in QFN-14 package
• No DC blocking capacitors required (unless
external DC is applied to the RF ports)

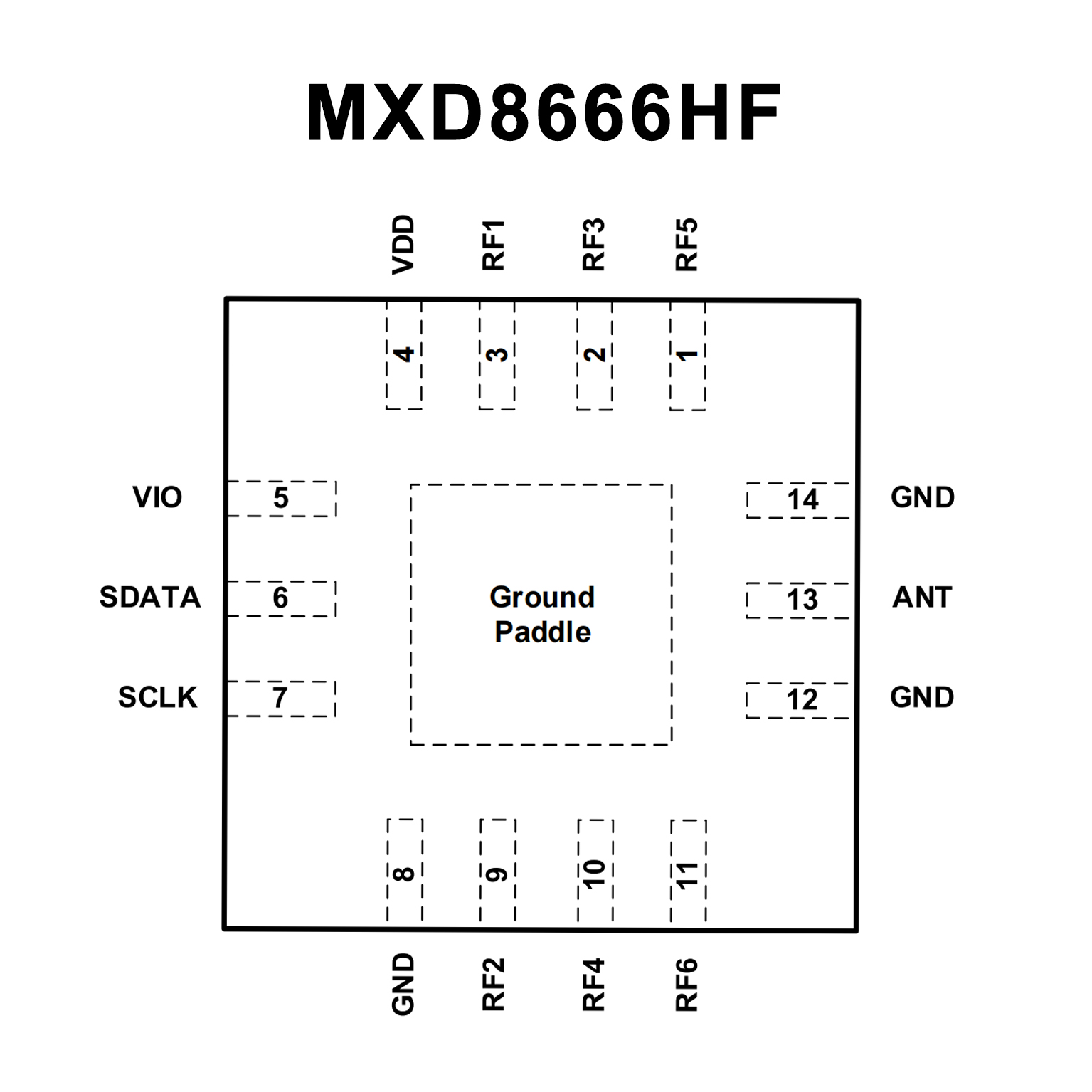

PIN CONFIGUTION
