0.4 to 2.7 GHz SP10T LTE Transmit/Receive Switch with MIPI RFFE Interface,Replace SKY13473.
SGM72110
SGM72110.pdf
SGM72110.pdfFEATURES
• Supply Voltage Range: 2.4V to 4.8V
• Advanced Silicon-On-Insulator (SOI) Process
• Frequency Range: 0.1GHz to 3.0GHz
• Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
• MIPI RFFE Interface Compatible
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-2.4×2.4-20L Package

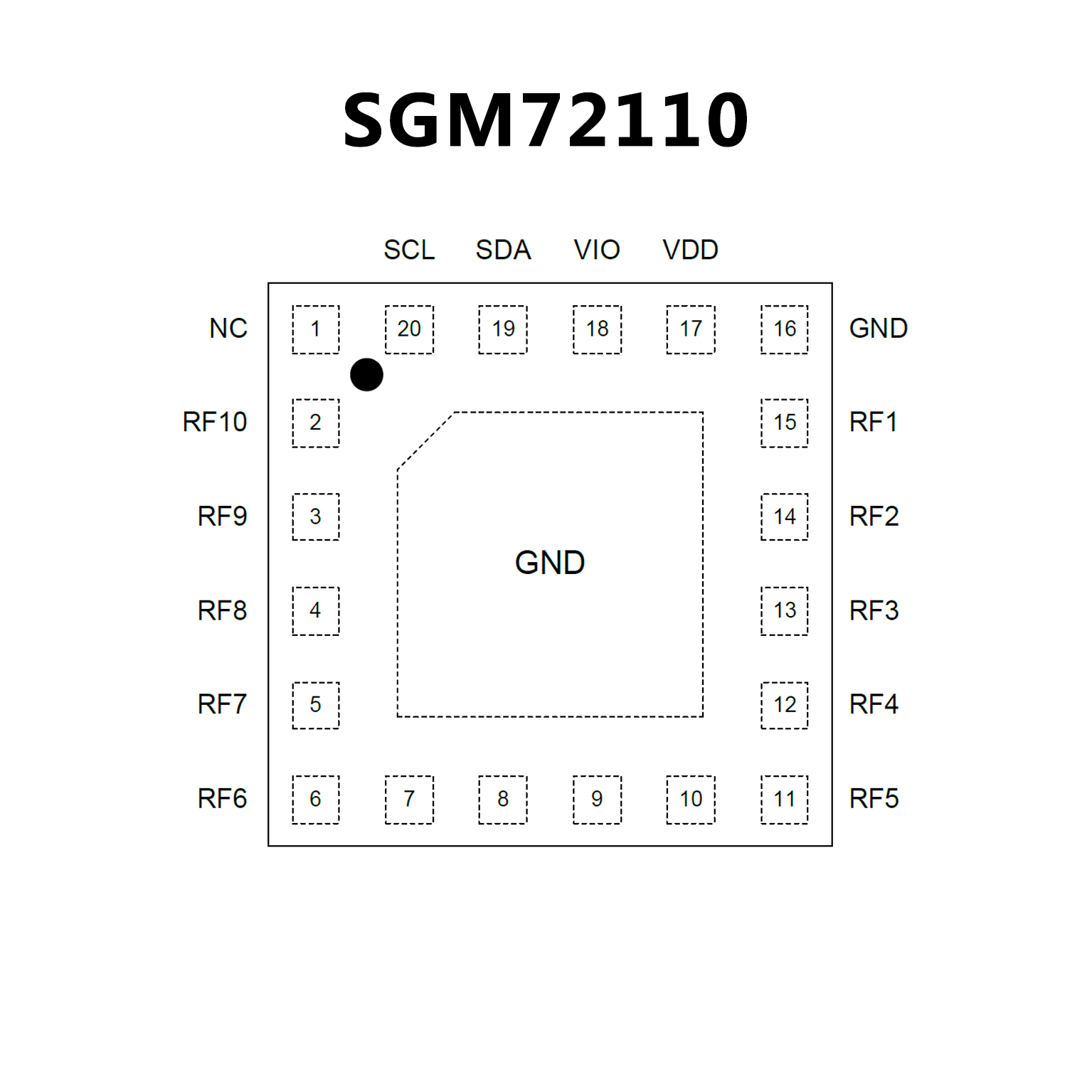

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.4 to 2.7 GHz
• Low insertion loss
• High isolation and linearity
• Integrated, programmable MIPI interface
• Default USID = 1011
• Ten linear TRX ports with isolation greater than 20 dB
@ 2.7 GHz
• Small QFN (20-pin, 2.4 x 2.4 x 0.75 mm) package
(MSL1, 260 °C per JEDEC J-STD–020)

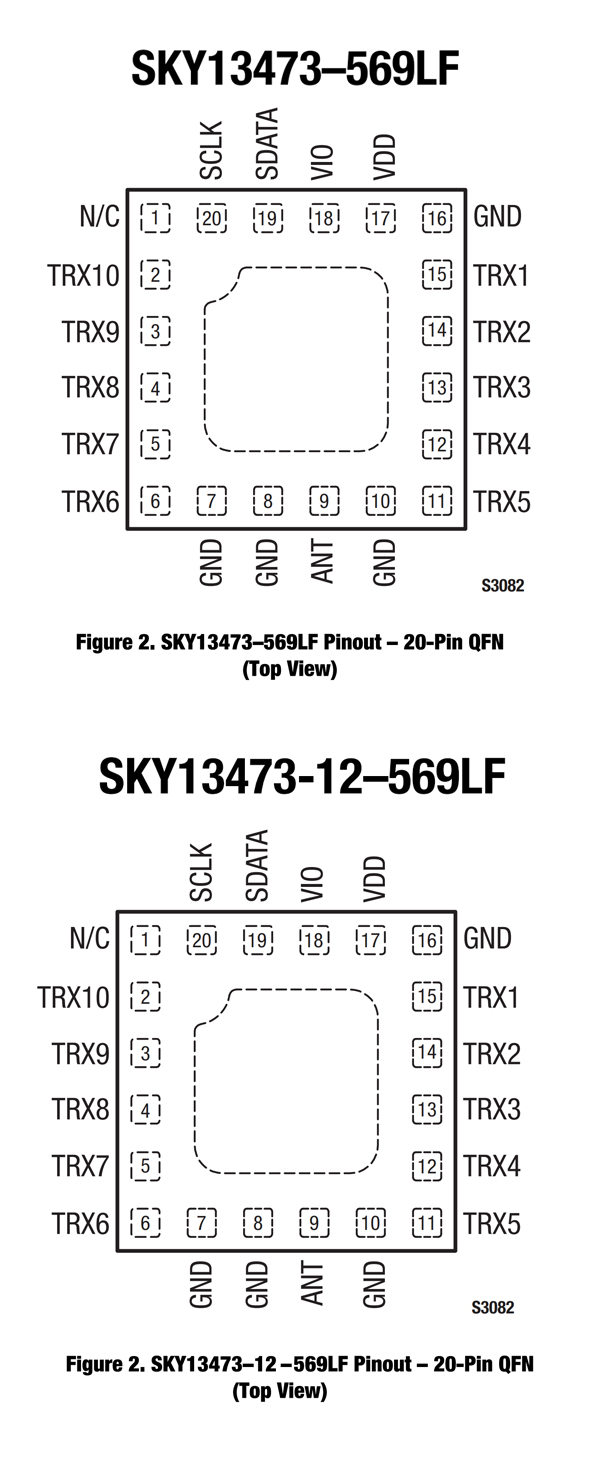

PIN CONFIGUTION
