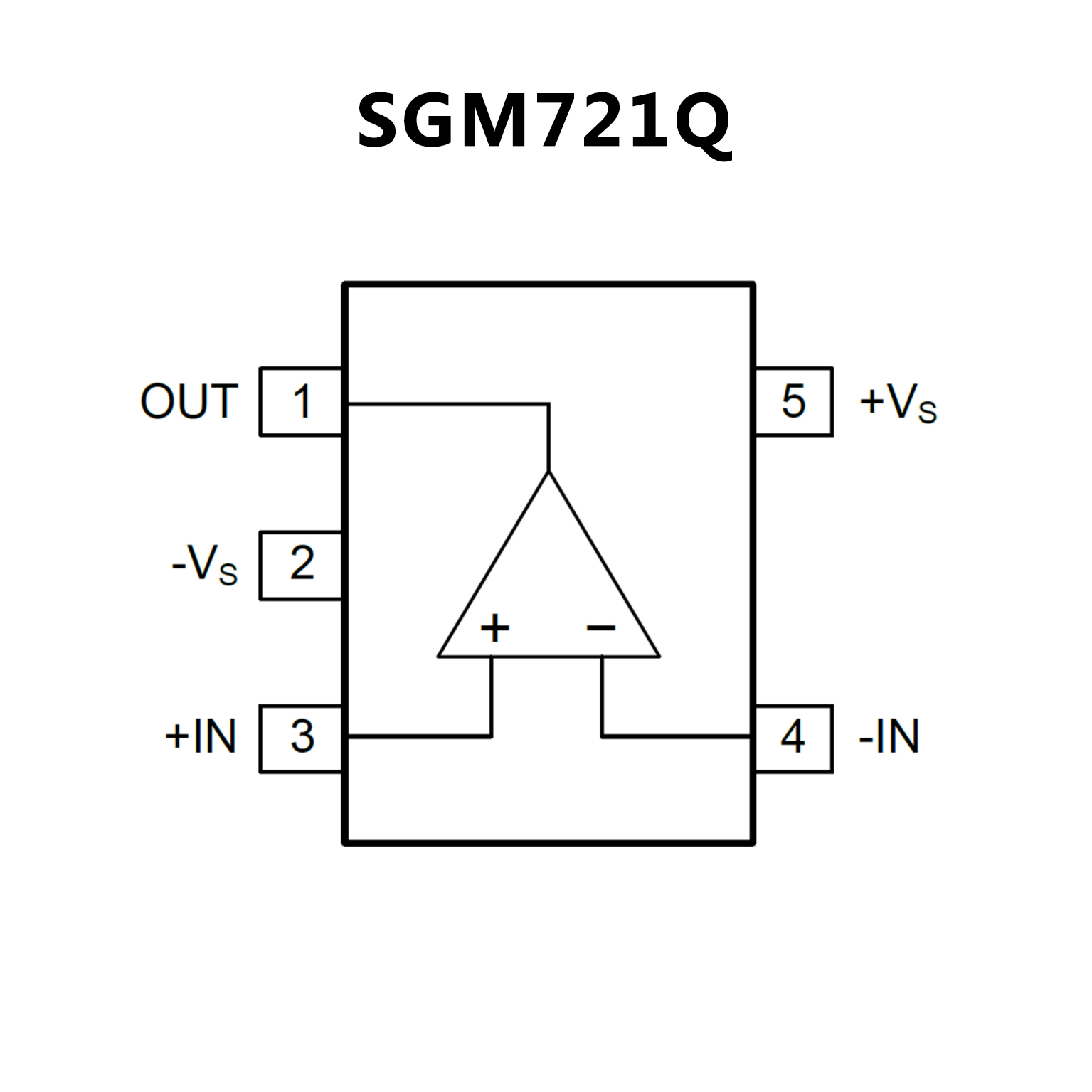

SGM721Q.pdf• AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
• Input Offset Voltage: 1.5mV (TYP)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 7V/μs
• Settling Time to 0.1% with 2V Step: 0.4μs
• Overload Recovery Time: 0.5μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Quiescent Current: 1.2mA (TYP)
• Available in a Green SOT-23-5 Package

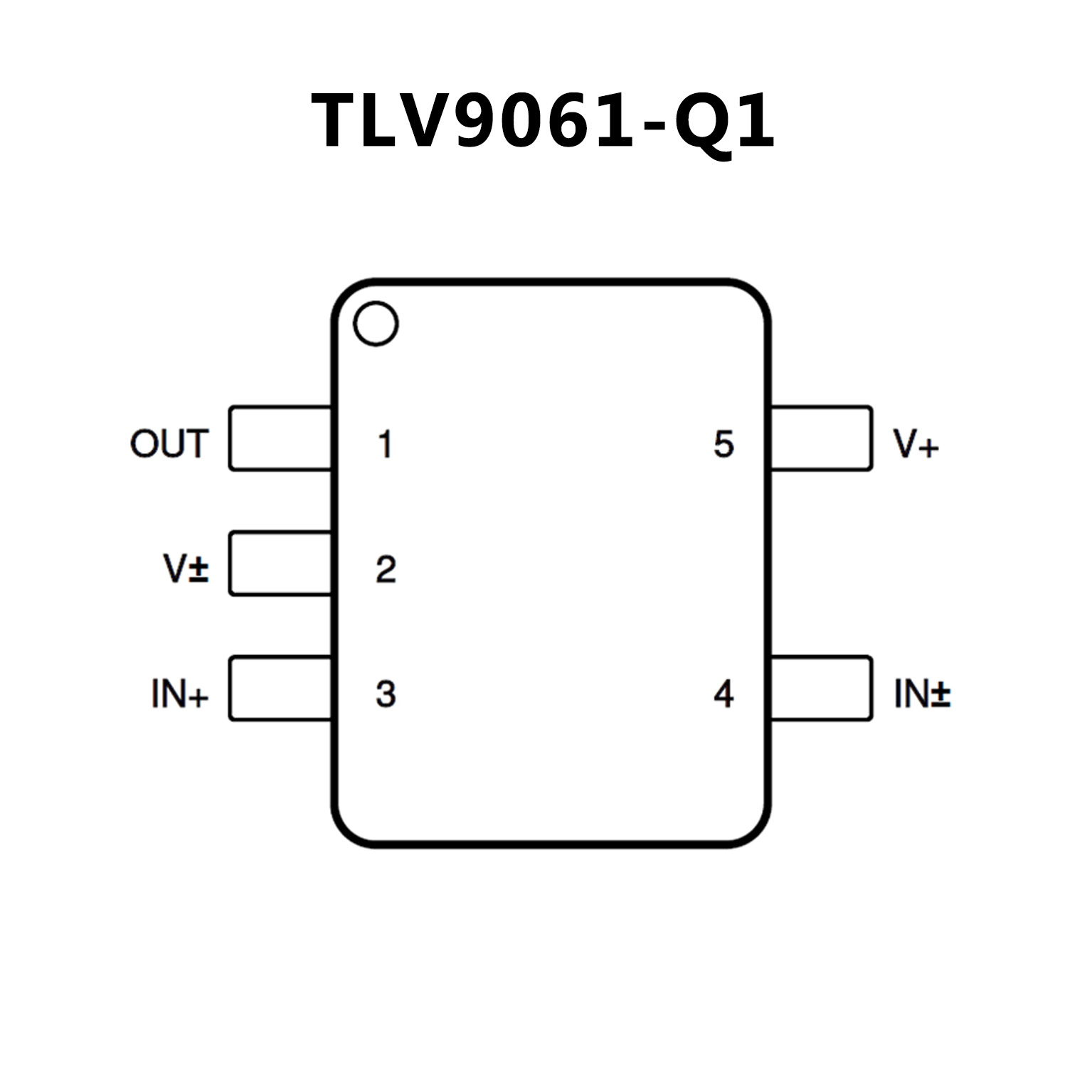

• AEC-Q100 qualified for automotive applications
Temperature grade 1: –40°C to +125°C, TA
Device HBM ESD classification level 3A
Device CDM ESD classification level C6
• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: 10 nV/√ Hz
• Low input bias current: 0.5 pA
• Low quiescent current: 538 µA
• Unity-gain stable
• Internal RFI and EMI filter
• Wide supply range: 1.8 V to 5.5 V
• Easier to stabilize with higher
capacitive load due to resistive open-loop output impedance
• Shutdown version: TLV906xS
• Functional Safety-Capable
Documentation available to aid
functional safety system design
