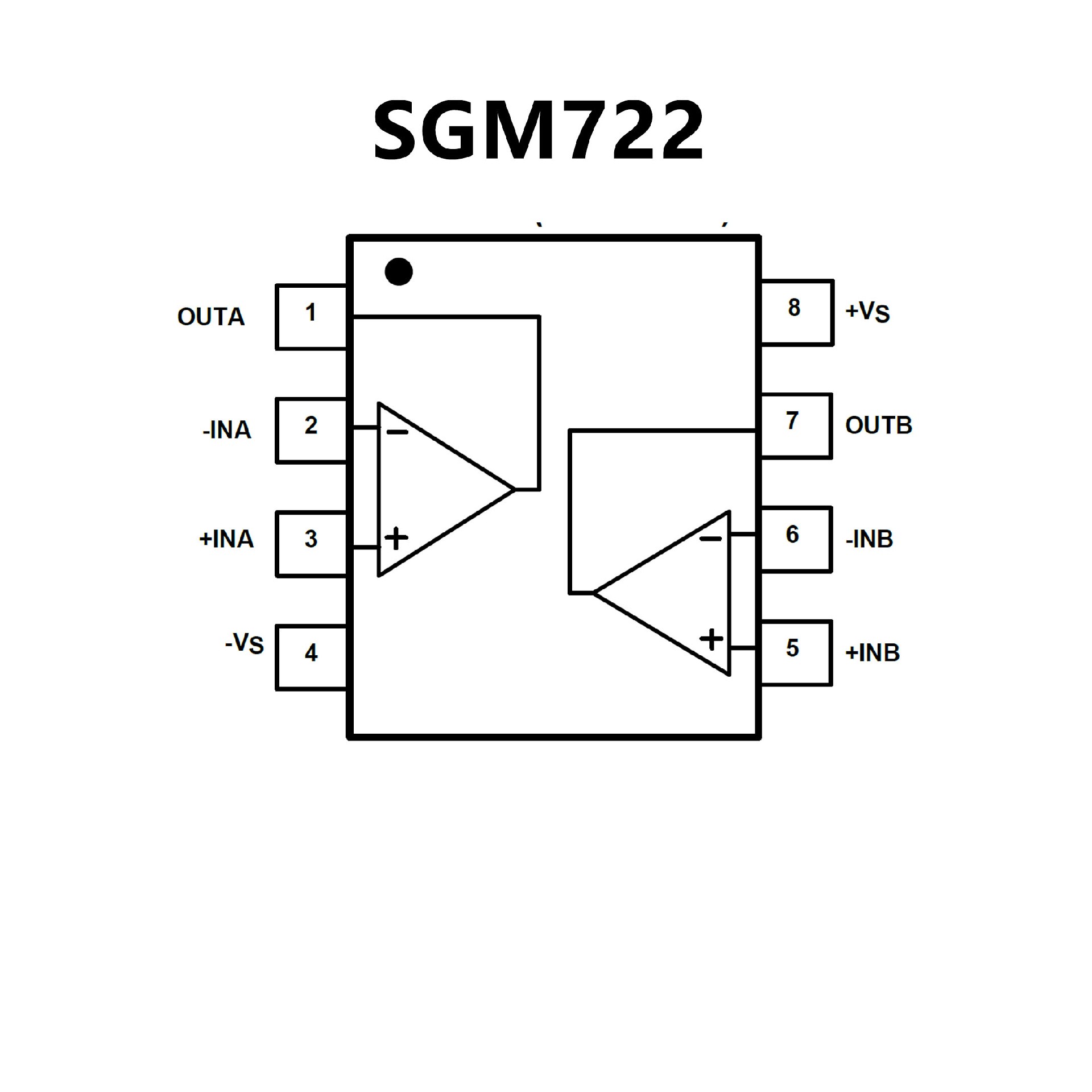

SGM722.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM721 Available in Green SC70-5,
SOT-23-5 and SOIC-8 Packages
SGM722 Available in Green MSOP-8,
SOIC-8 and TSSOP-8 Packages
SGM723 Available in Green
SOT-23-6 and SOIC-8 Packages
SGM724 Available in Green
TSSOP-14 and SOIC-14 Packages

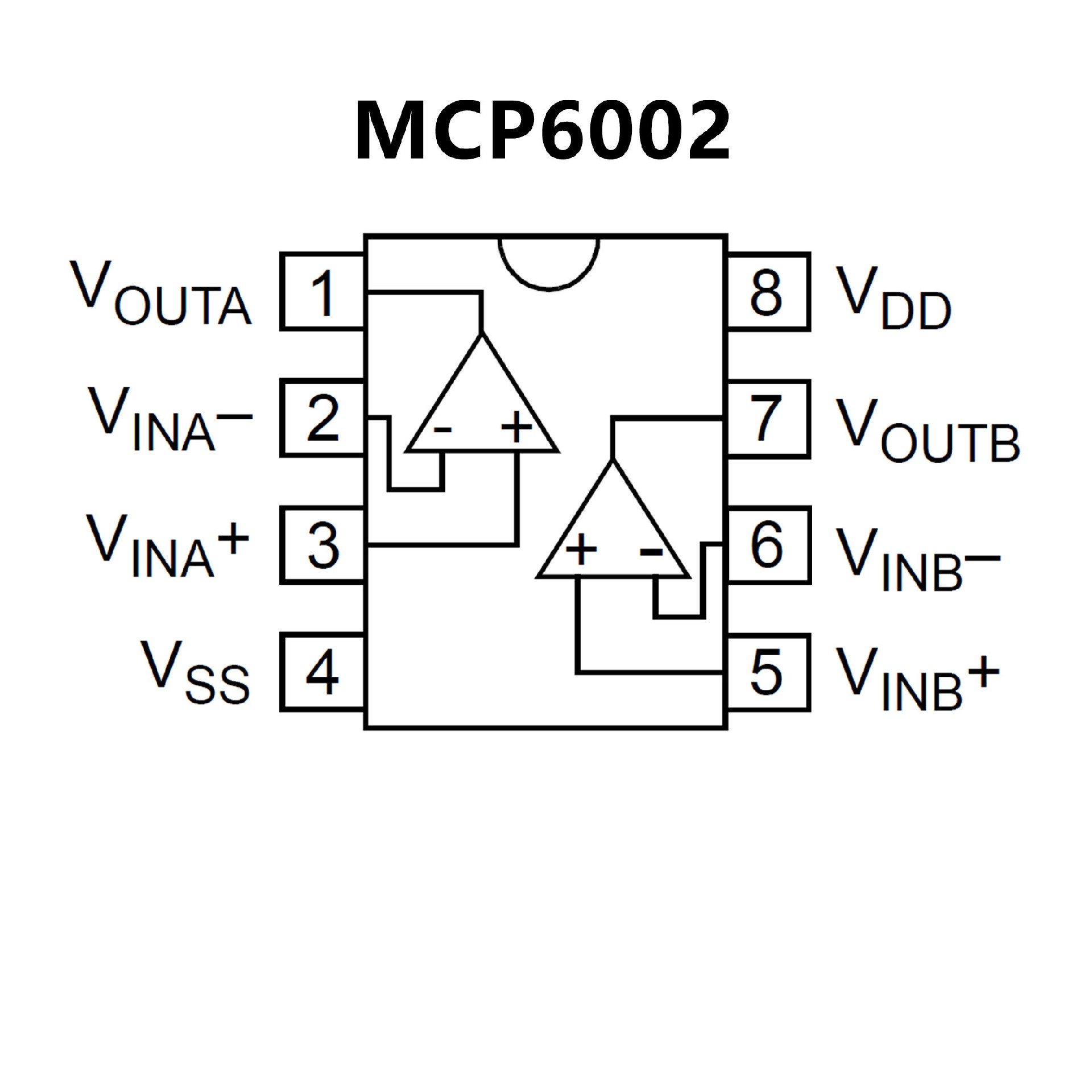

• Available in SC-70-5 and SOT-23-5 packages
• Gain Bandwidth Product: 1 MHz (typical)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 6.0V
• Supply Current: IQ = 100 µA (typical)
• Phase Margin: 90° (typical)
• Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages
