• Rail-to-Rail Input and Output

• Input Offset Voltage: 4mV (MAX)

• High Gain-Bandwidth Product: 11MHz

• High Slew Rate: 8.5V/μs

• Settling Time to 0.1% with 2V Step: 0.21μs

• Overload Recovery Time: 0.6μs

• Low Noise: 8.5nV/√Hz at 10kHz

• Supply Voltage Range: 2.1V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with V_S = 5.5V

• Low Power:

  SGM721/3: 1.2mA (TYP)

  SGM722/4: 1.1mA/Amplifier (TYP)

  SGM723 Less than 1μA when Disabled

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM721 Available in Green SC70-5, SOT-23-5 and

  SOIC-8 Packages

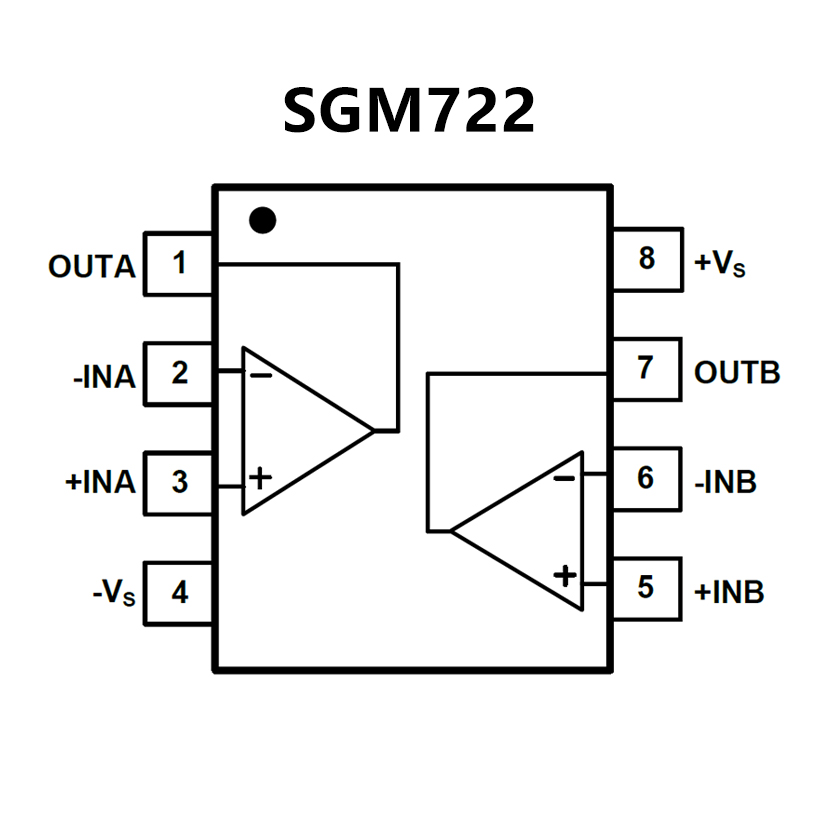

  SGM722 Available in Green MSOP-8, SOIC-8 and

  TSSOP-8 Packages

  SGM723 Available in Green SOT-23-6 and SOIC-8

  Packages

  SGM724 Available in Green TSSOP-14 and

  SOIC-14 Packages
