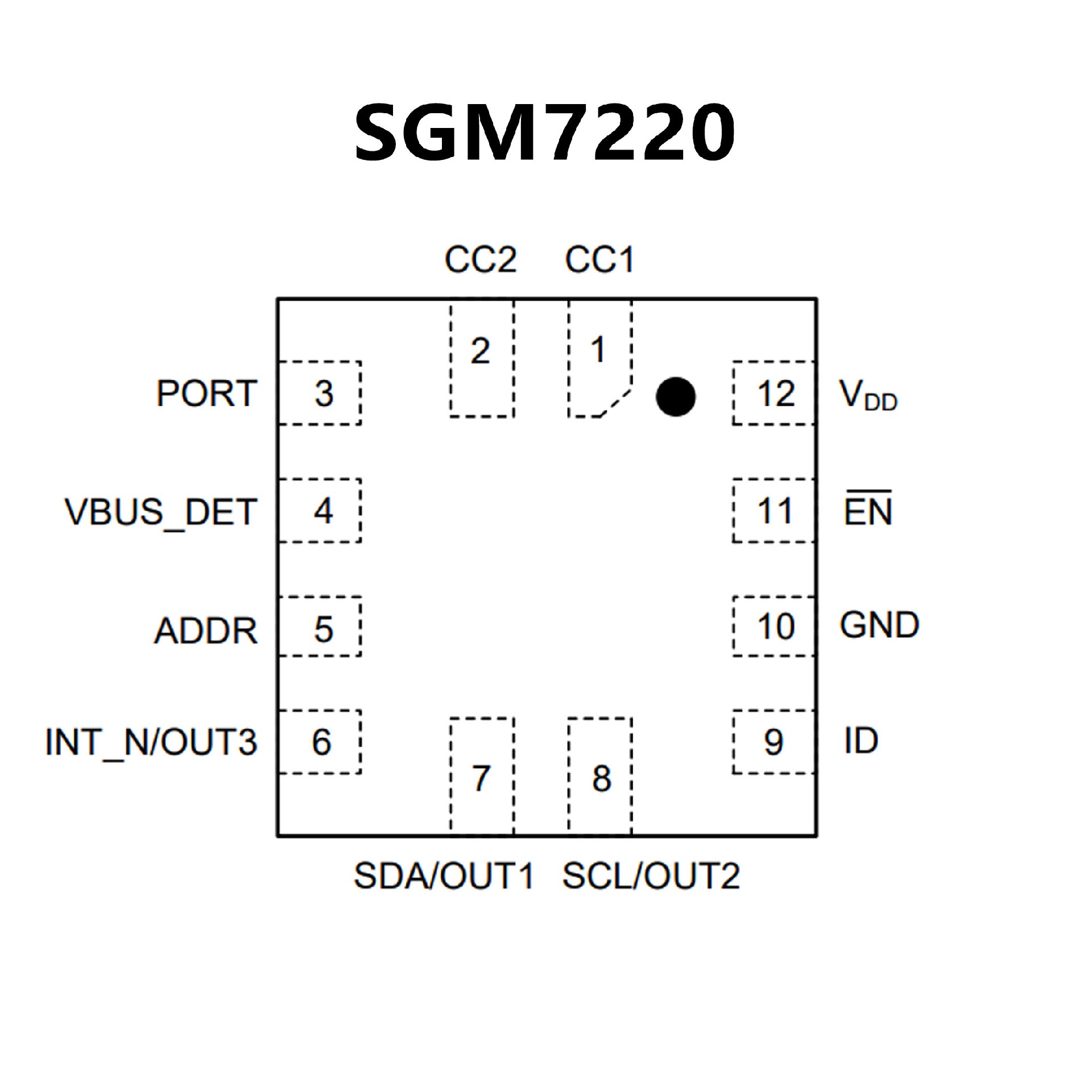

SGM7220.pdf• Supply Voltage Range: 2.7V to 5V
• Supports USB Type-C Specification 1.1
• Enable Control: Active Low (EN Pin)
• Backward Compatible with USB
Type-CSpecification 1.0
• Supports up to 3A of Current
Advertisement andDetection
• Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
• Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
• VBUS Detection
• I2C or GPIO Control
• Role Configuration Control through I2C
• Low Current Consumption
• -40℃ to +125℃ Operating Temperature Range
• Available in Green UTQFN-1.6×1.6-12L Package

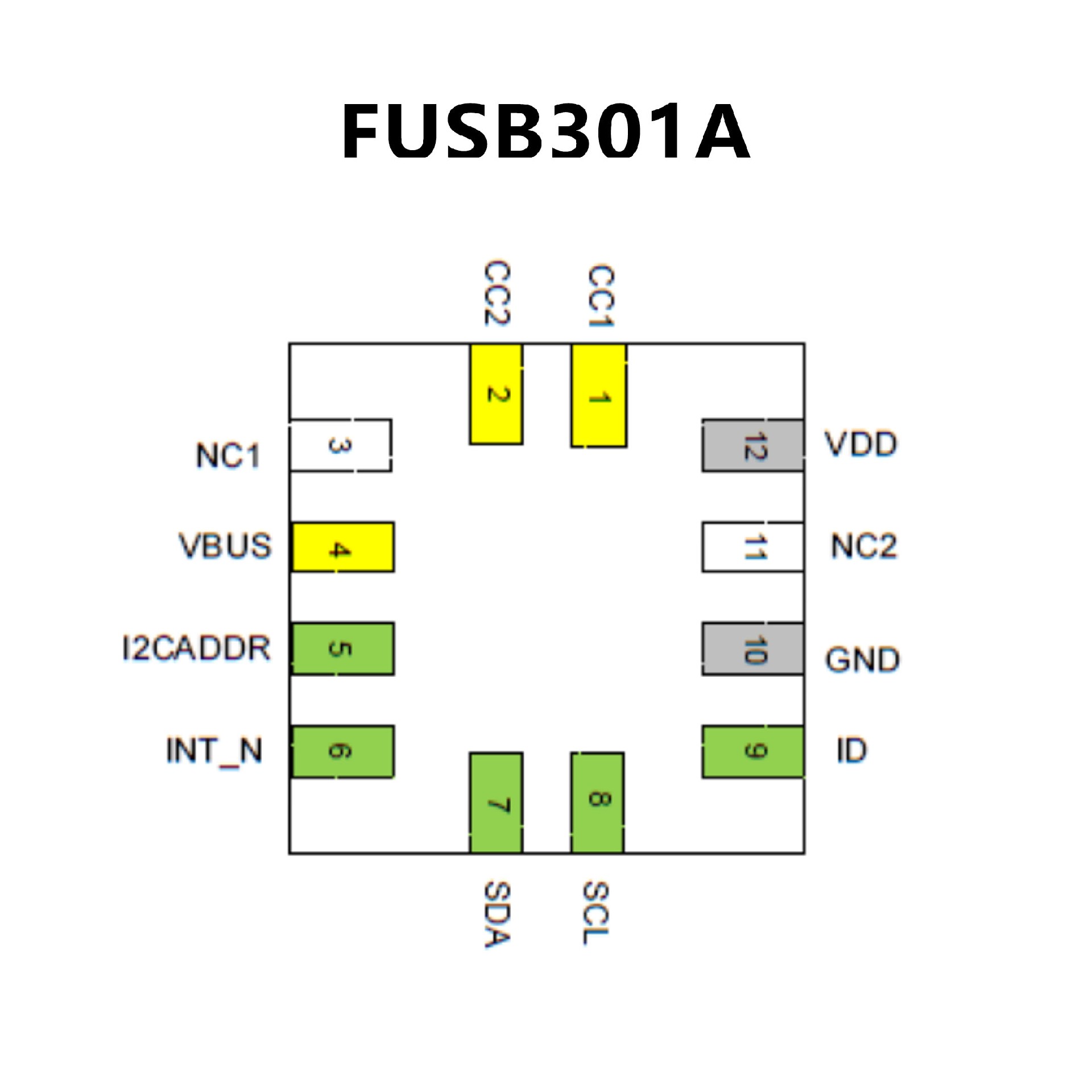

• Fully Autonomous Type−C Controller
Supports Type−C Versions 1.1
and 1.0
• VDD Operating Range, 3.0 V − 5.5 V
• Low Disable Power: ICC = 2.0µA (Max.)
• Low Standby Power: ICC = 7.0µA (Max.)
• DRP Mode with Optional Accessory Support
• Configurable I2C Address
• Capable of Supporting Try.SNK and Try.SRC
• Dead Battery Support
(SINK Support when No Power Applied)
• 2 kV HBM ESD Protection
• Small Packaging, 12 Lead TMLP
(1.6 mm × 1.6 mm × 0.375 mm)
