SP4T Antenna Tuning Switch, SGM72204A Replace MXD8544A.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
• Frequency Range: 0.1GHz to 2.7GHz
• Low On-Resistance: 1.0Ω (TYP)
• Low Turn-Off Capacitance: 130fF (TYP)
• Peak-Voltage Handling: 45V (TYP)
• RF Input Power: 43dBm
• Supply Range: 2.4V to 4.5V
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-1.1×1.5-10L Package

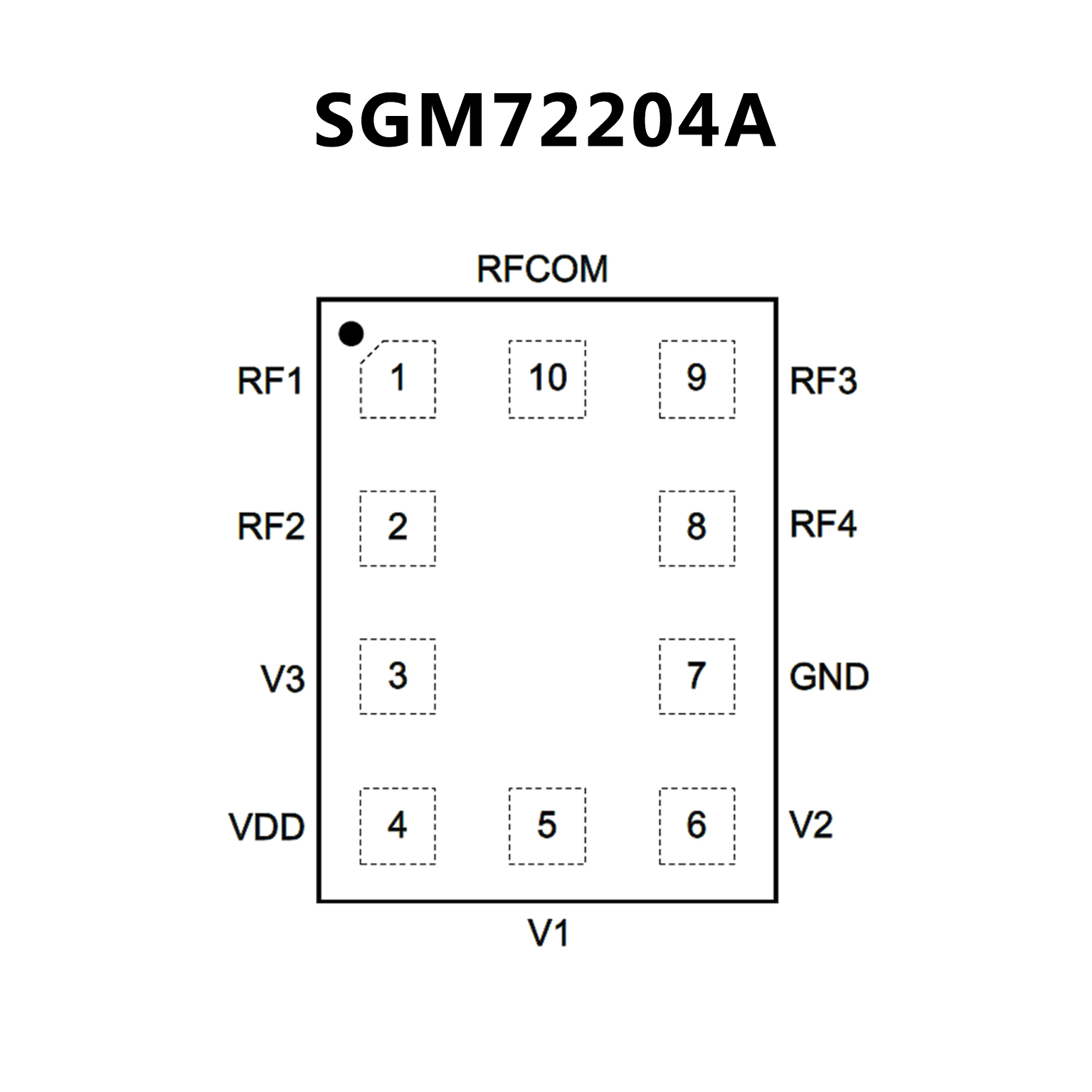

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.1 to 3.0 GHz
• Low insertion 0.50dB @ 2.7 GHz
• High P0.1dB of 43.3dBm
• Positive low voltage control: VC = 1.0 to 3.0 V,
VDD = 2.5 to 3.3 V, Small LGA (10-pin,
1.1mm x 1.5mm x 0.36mm) package

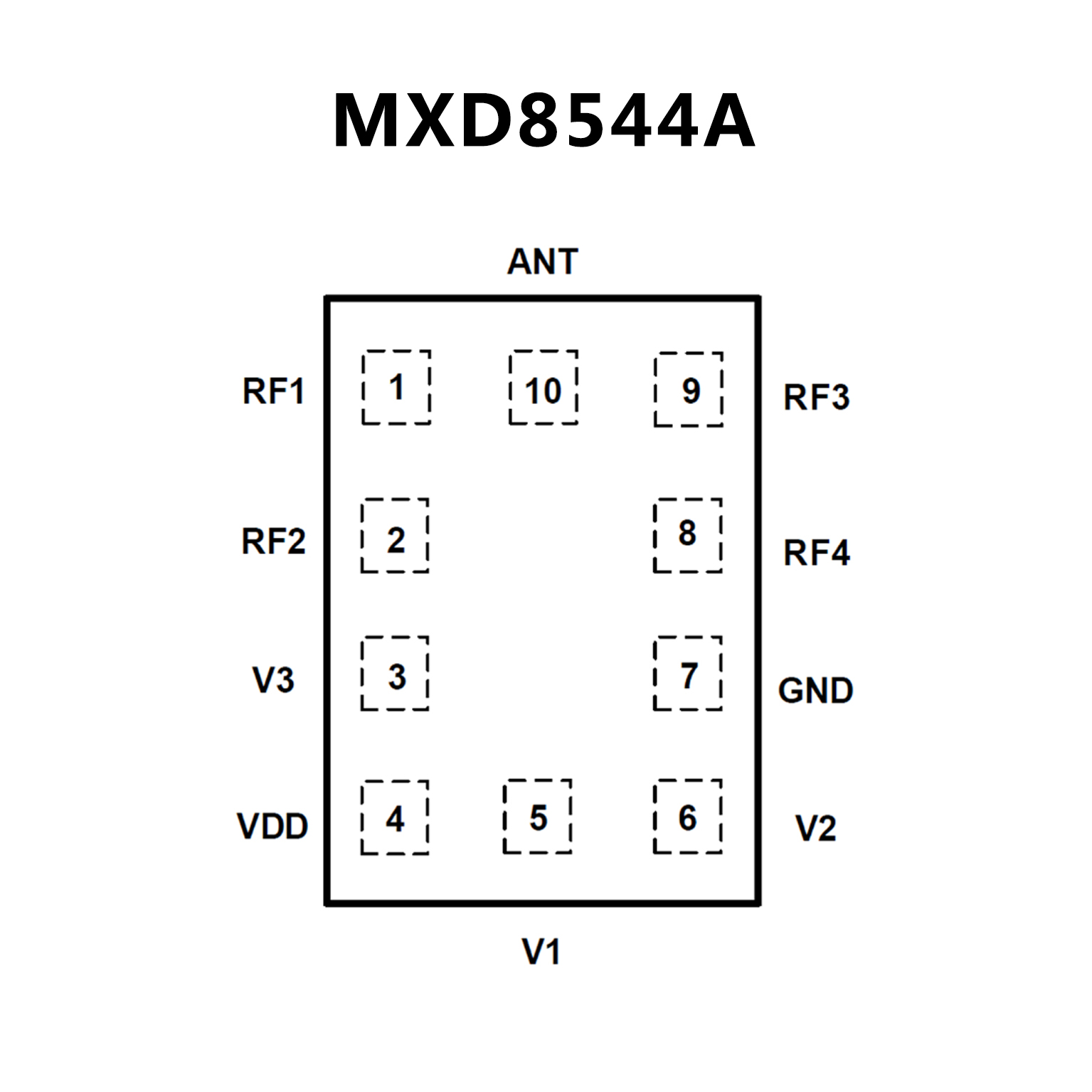

PIN CONFIGUTION
