700 - 2700 MHz SPDT Switch,SGM72204A Replace RF1694.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
• Frequency Range: 0.1GHz to 2.7GHz
• Low On-Resistance: 1.0Ω (TYP)
• Low Turn-Off Capacitance: 130fF (TYP)
• Peak-Voltage Handling: 45V (TYP)
• RF Input Power: 43dBm
• Supply Range: 2.4V to 4.5V
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-1.1×1.5-10L Package

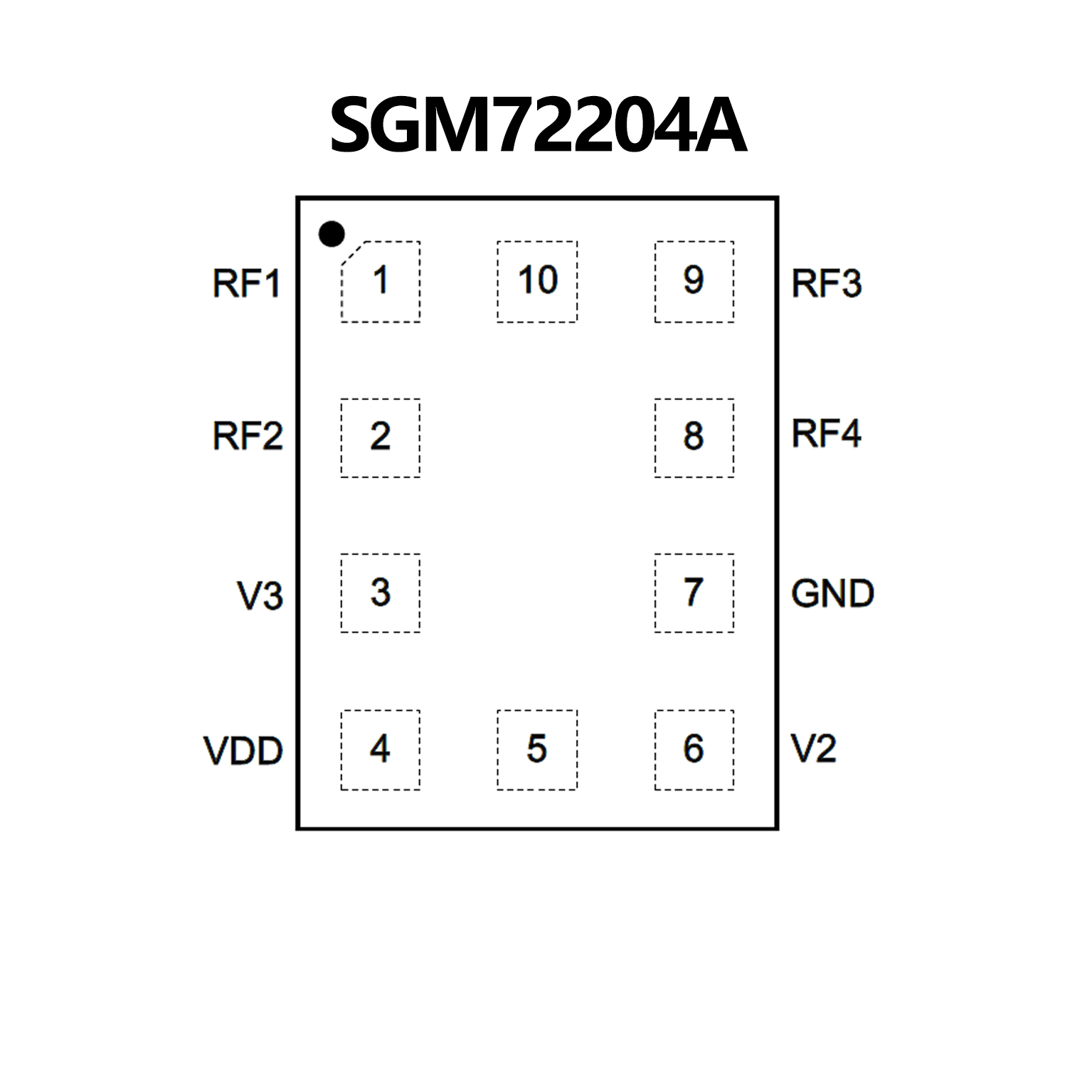

PIN CONFIGUTION
优势替代
FEATURES
• Ultra-Low On-resistance, 0.6Ω
• Very Linear Performance, 75dBm IP3
• Off Ports, ‘Open Type’
• Two pin GPIO control Interface for
standard SP4T operation
• Very Small 1.1mm x 1.5mm,
Laminate Package
• Very low profile, 0.44mm
• 2.4V to 5.8V Supply Range
(VBATT Connect)

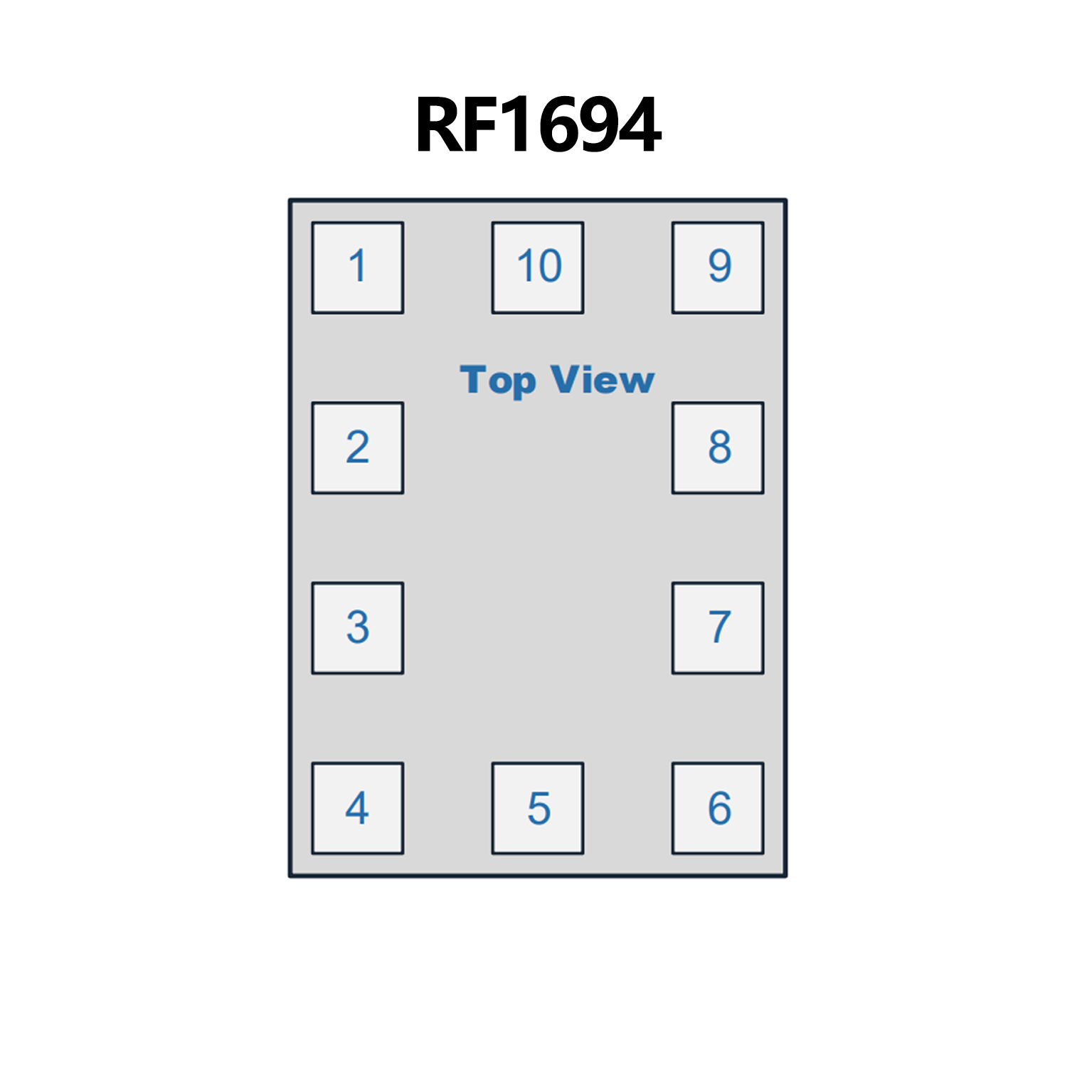

PIN CONFIGUTION
