SP4T Antenna Tuning Switch, SGM72204A Replace SKY19245.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
• Frequency Range: 0.1GHz to 2.7GHz
• Low On-Resistance: 1.0Ω (TYP)
• Low Turn-Off Capacitance: 130fF (TYP)
• Peak-Voltage Handling: 45V (TYP)
• RF Input Power: 43dBm
• Supply Range: 2.4V to 4.5V
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-1.1×1.5-10L Package

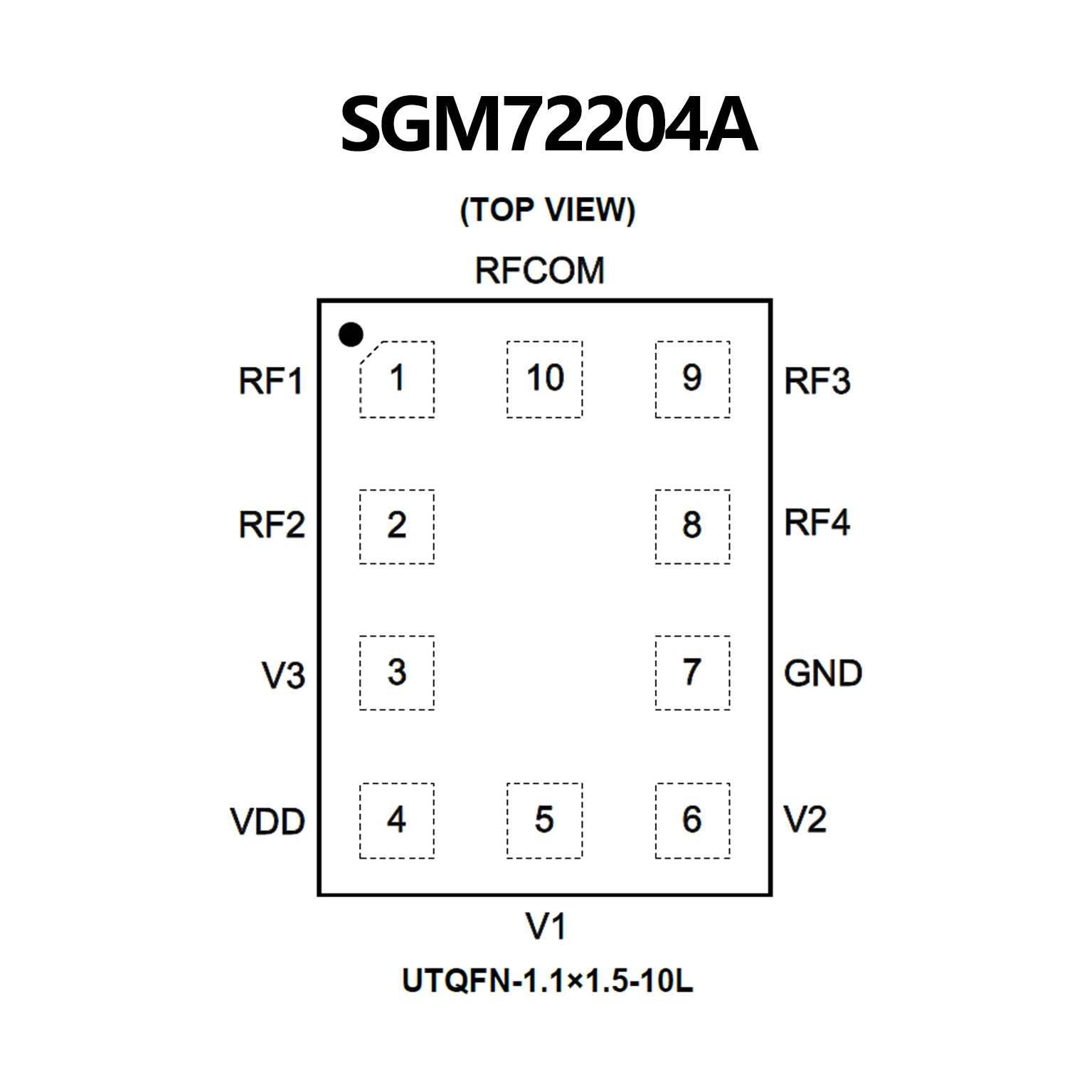

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.1 to 2.7 GHz
• Low ON-state resistance and OFF-state capacitance
• High-power and peak-voltage handling (+42 dBm/
39 V typical)
• No external DC blocking capacitors required
• Small QFN (10-pin, 1.5 1.1 0.5 mm maximum)
package (MSL1, 260 °C per JEDEC J-STD-020)
PIN CONFIGUTION
