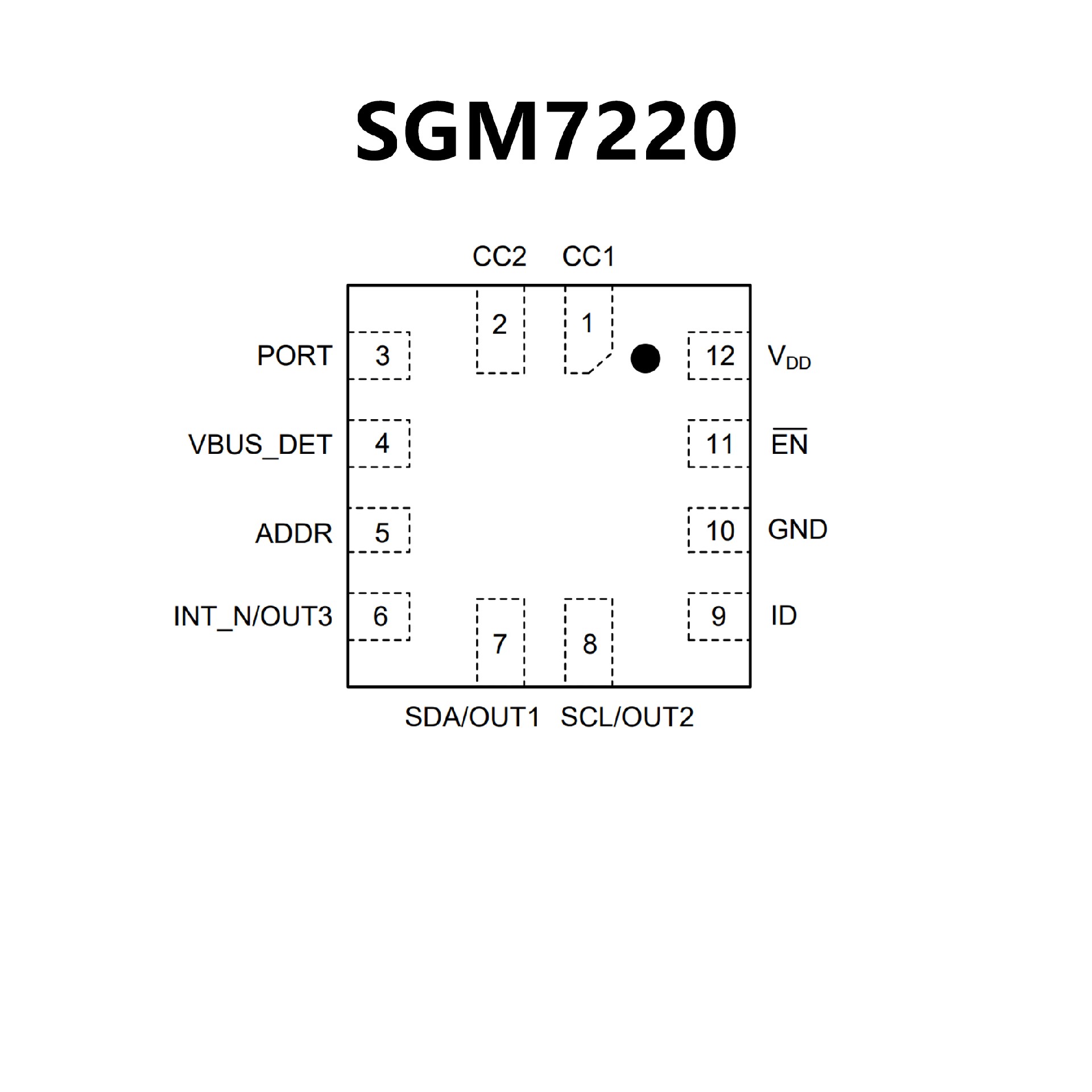

SGM7220.pdf• Supply Voltage Range: 2.7V to 5V
• Supports USB Type-C Specification 1.1
• Enable Control: Active Low (EN Pin)
• Backward Compatible with
USB Type-CSpecification 1.0
• Supports up to 3A of Current
Advertisement andDetection
• Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
• Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
• VBUS Detection
• I2C or GPIO Control
• Role Configuration Control through I2C
• Low Current Consumption
• -40℃ to +125℃ Operating Temperature Range
• Available in Green UTQFN-1.6×1.6-12L Package

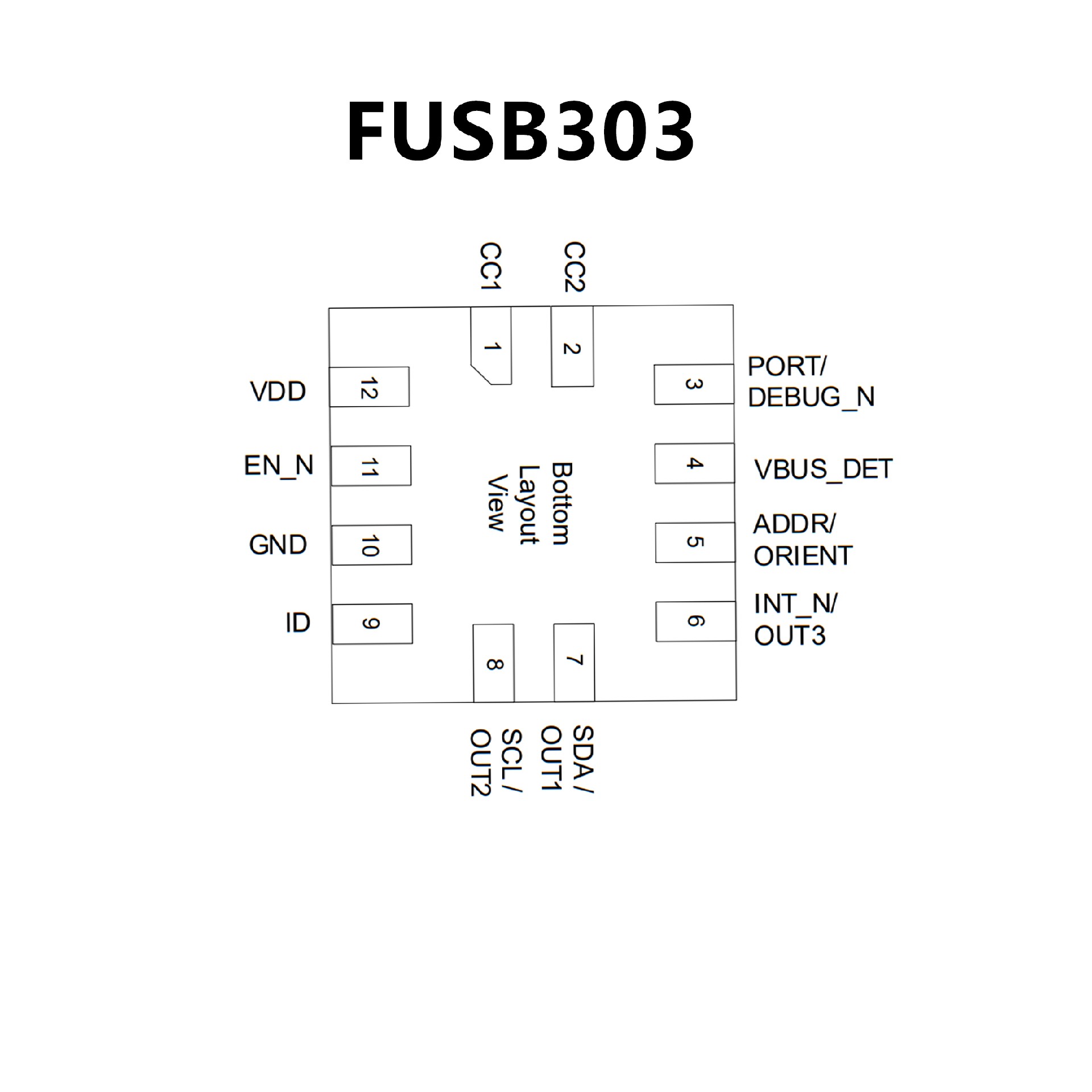

• Fully Autonomous USB−C™ Port Controller
• Supports Latest Type−C™ Specification Release 1.3
• Source, Sink, and DRP Port role Configuration
with OptionalAccessory Support
• Try.SRC and Try.SNK modes for Preferring
Source Role or SinkRole Respectively
• VDD Operating Range, 2.85 V − 5.5 V
• Typical Low Power Operation: ICC < 10µA
• GPIO and I2C Configuration
• Max 28 V DC Tolerance on ID,
VBUS_DET, CC1 and CC2
• Dead Battery Support
(Sink Port role when No Power Applied)
• 4 kV HBM ESD Protection for Connector Pins
• Small Packaging, 12 Lead QFN
(1.6 mm × 1.6 mm × 0.375 mm）
