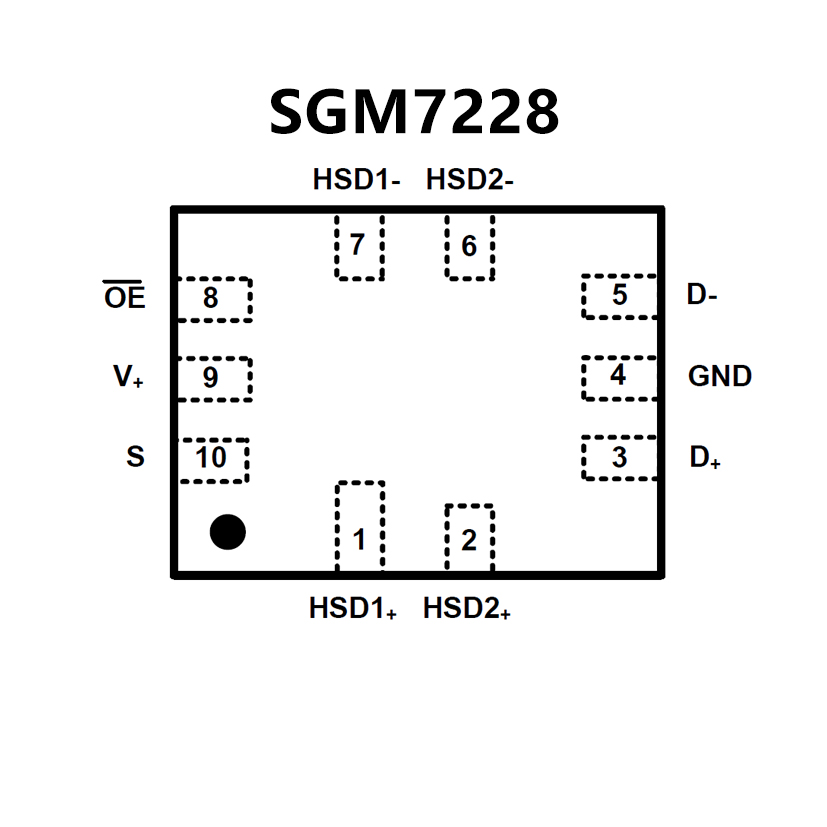

SGM7228YWQ10G.pdf• Low Cost
• RON is Typically 6Ω at 3.0V
• Low Bit-to-Bit Skew: 50ps (TYP)
• Voltage Operation: 1.8V to 4.3V
• Fast Switching Times:
tON 10ns
tOFF 22ns
• Low Crosstalk: -40dB at 250MHz
• Power-Off Protection when V＋ = 0V,
D+/D- Pins can Tolerate up to 5.25V
• High Off-Isolation: -35dB at 250MHz
• Rail-to-Rail Input and Output Operation
• Break-Before-Make Switching
• Extended Industrial Temperature Range:
-40℃ to +85℃
• Small Package:
TQFN-1.8×1.4-10L

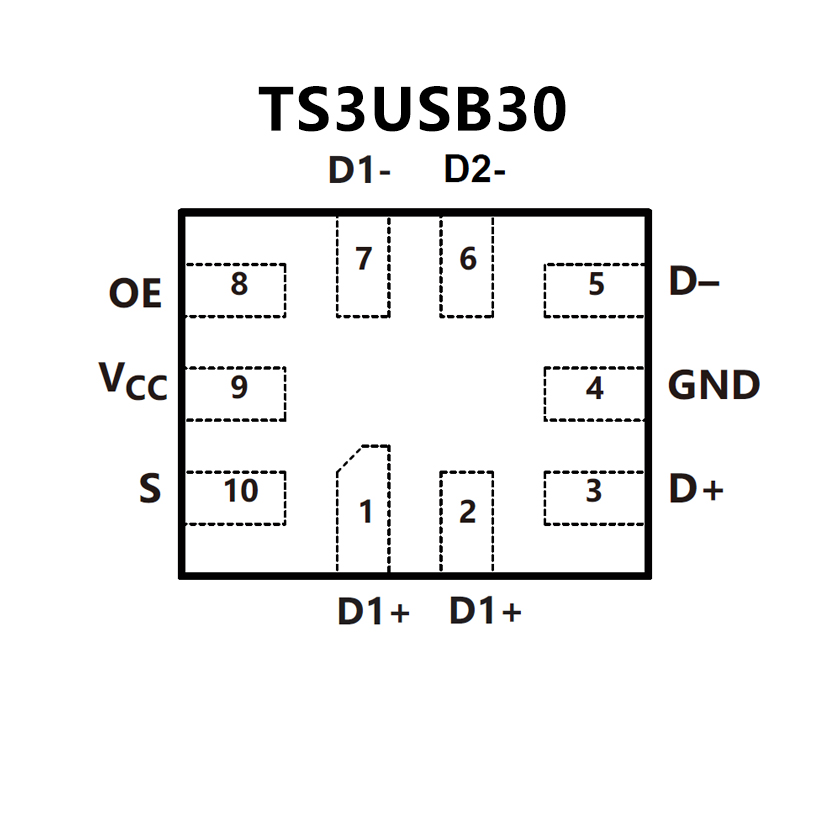

• VCC Operation at 3 V and 4.3 V
• 1.8-V Compatible Control-Pin Inputs
• IOFF Supports Partial Power-Down-Mode Operation
• Ron = 10 Ω Maximum
ΔRon <0.35 Ω Typical
• Cio(ON) = 7 pF Typical
• Low Power Consumption (1 μA Maximum)
• ESD Performance Tested Per JESD 22
6000-V Human Body Model (HBM)
(A114-B, Class II)
1000-V Charged-Device Model (C101)
250-V Machine Model (A115-A)
• –3-dB Bandwidth = 955 MHz Typical
• Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
