High-Speed USB 2.0 (480Mbps) DPDT Analog Switch, SGM7229 Replace FSUSB42.
SGM7229
SGM7229.pdf
SGM7229.pdfFEATURES
• Supply Voltage Range: 1.8V to 5.5V
• On-Resistance: 5.5Ω (TYP) at 3V
• Fast Switching Times:tON=40nstOFF=15ns
• Crosstalk: -20dB at 250MHz
• Off-Isolation: -22dB at 250MHz
• Rail-to-Rail Input and Output Operation
• Break-Before-Make Switching
• -40℃ to +85℃ Operating Temperature Range
• Available in Green UTQFN-1.8×1.4-10L and
MSOP-10 Packages

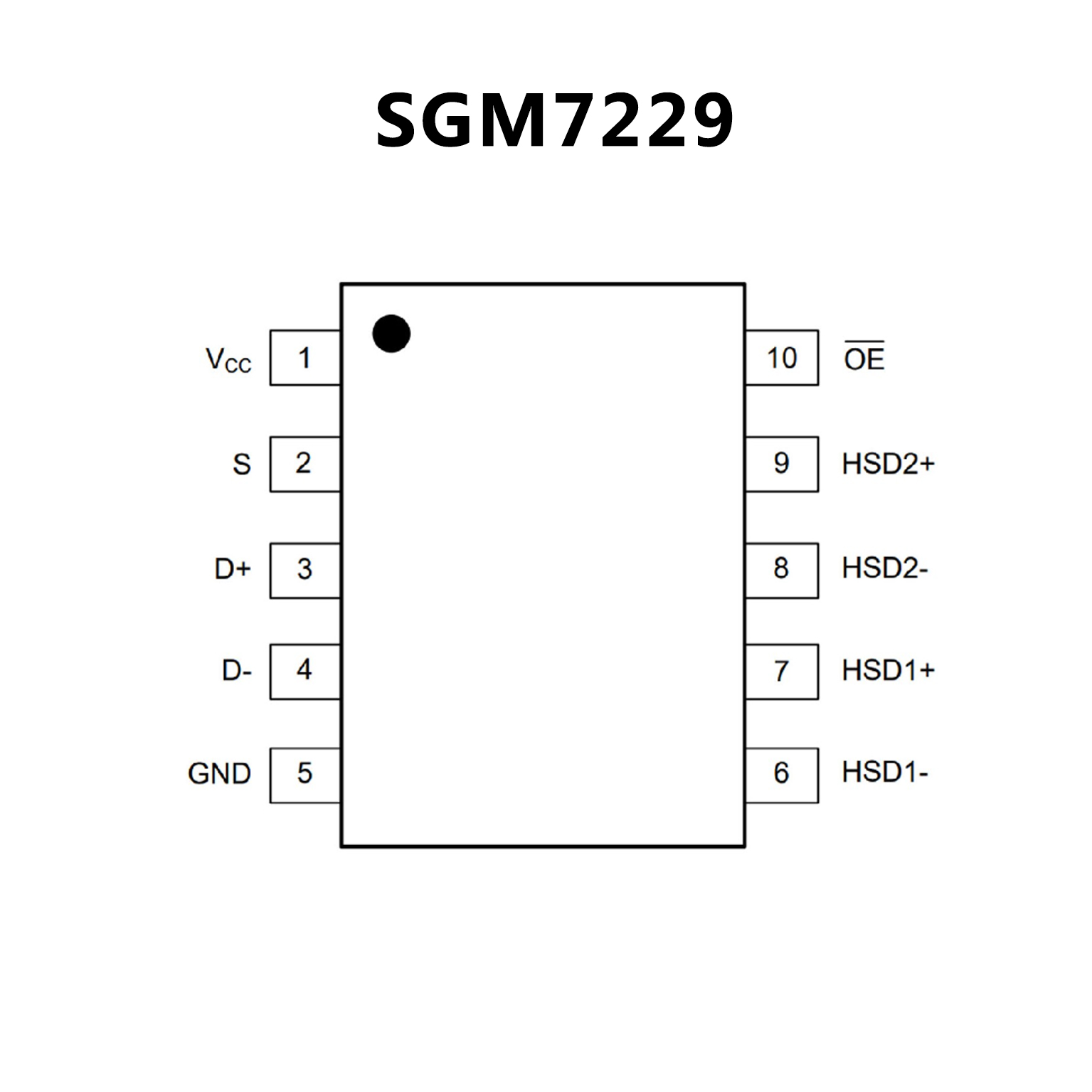

PIN CONFIGUTION
优势替代
FEATURES
• 低导通电容: 3.7 pF典型值
• 低导通电阻: 3.9 Ω 典型值
• 低功耗: 1 μA最大值
在扩展的电压范围内（VIN=1.8 V, VCC=4.4 V),
最大ICCT电流为15μA
• 宽广的 -3 db带宽: > 720 MHz
• Packaged in:
10-Lead UMLP (1.4 x 1.8 mm)
10-Lead MSOP
• 8 kV的ESD, >16 kV 电源对地ESD
• 当VCC=0V时所有管脚有断电保护
D+/D-管脚耐压达5.25 V
• 在无需额外元件的情况下所有的USB端口可耐过压
高达5.25 V

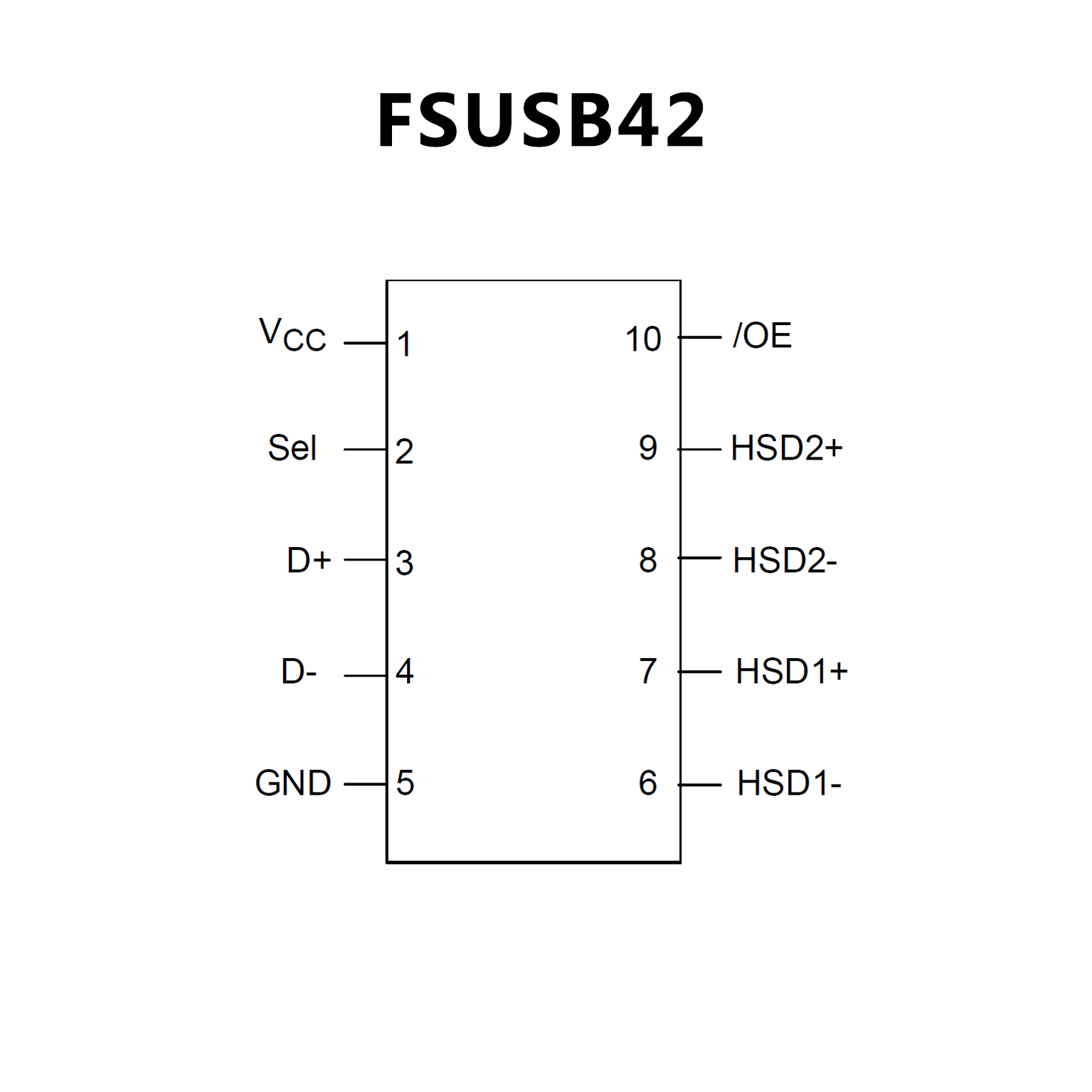

PIN CONFIGUTION
