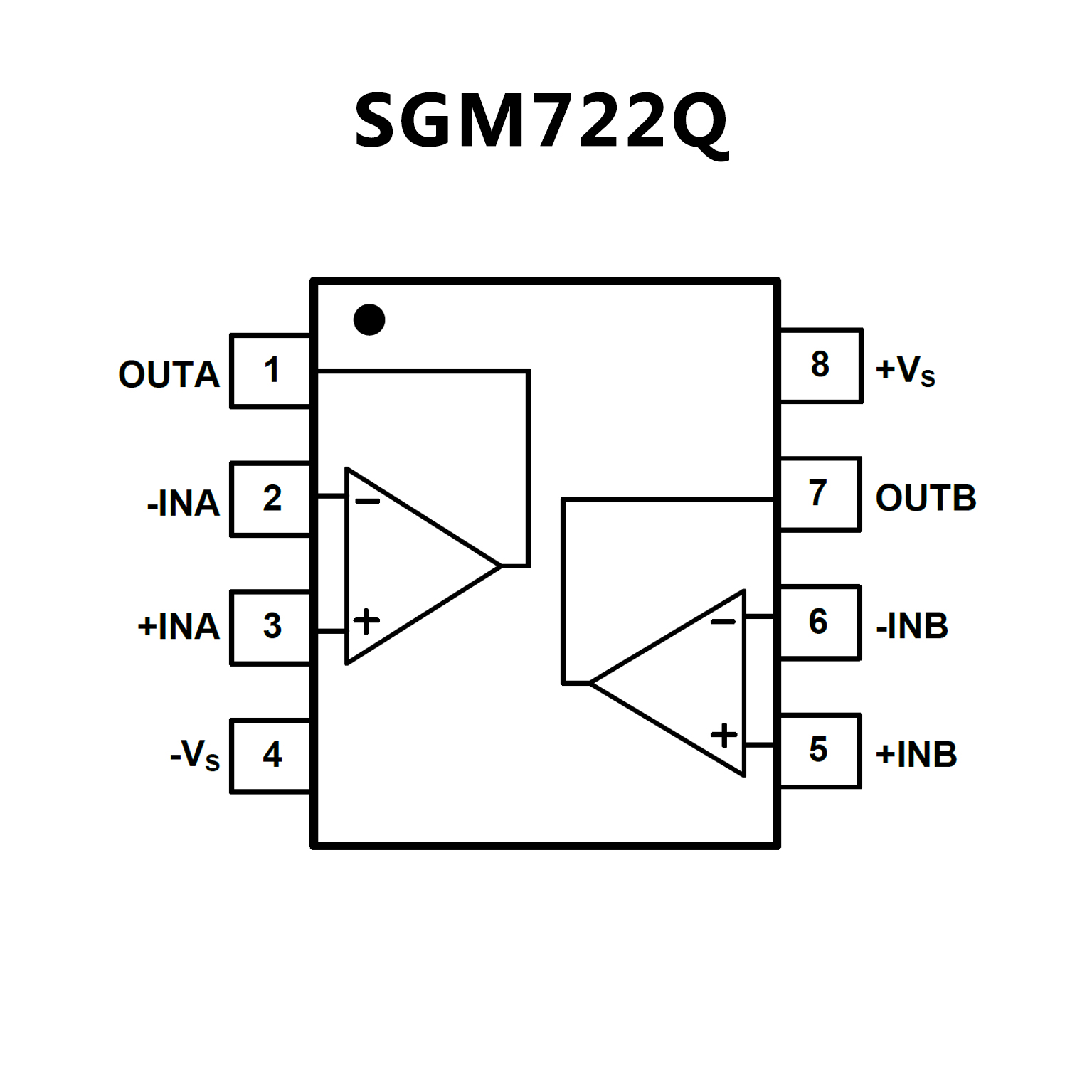

SGM722Q.pdf• AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
• Input Offset Voltage: 1.5mV (TYP)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 7V/μs
• Settling Time to 0.1% with 2V Step: 0.4μs
• Overload Recovery Time: 0.5μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Quiescent Current: 2.4mA (TYP)
• Available in Green SOIC-8 and MSOP-8 Packages
• Qualified for Automotive Applications
Device Temperature Grade : –40°C to
125°C Ambient Operating Temperature Range
Device HBM Classification Level 2
Device CDM Classification Level C6

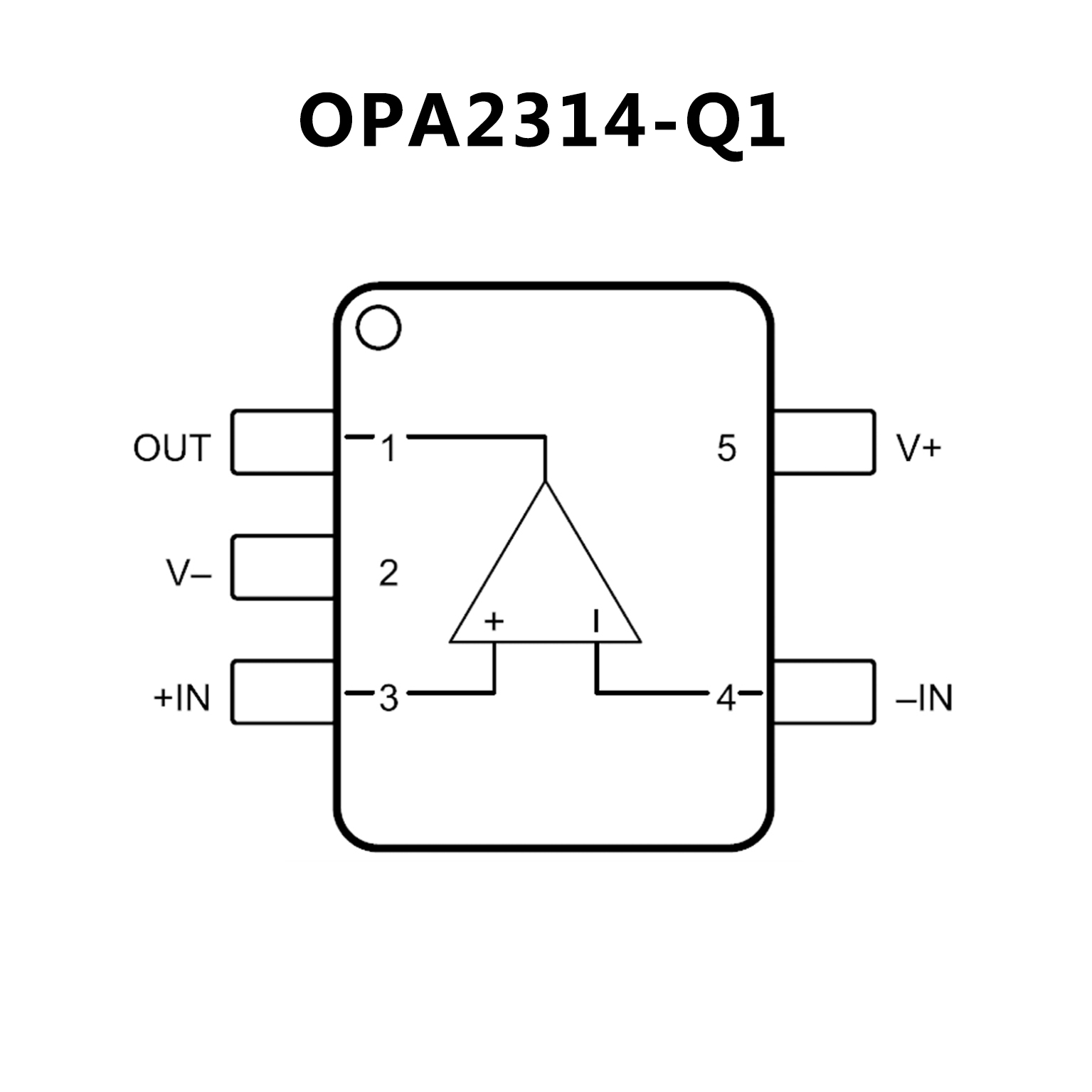

• Low IQ: 150 µA/ch
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 14 nV/√Hz at 1 kHz
• Gain Bandwidth: 3 MHz
• Low Input Bias Current: 0.2 pA
• Low Offset Voltage: 0.5 mV
• Unity-Gain Stable
• Internal RF and EMI Filter
• Specified Temperature Range:
40°C to +125°C
