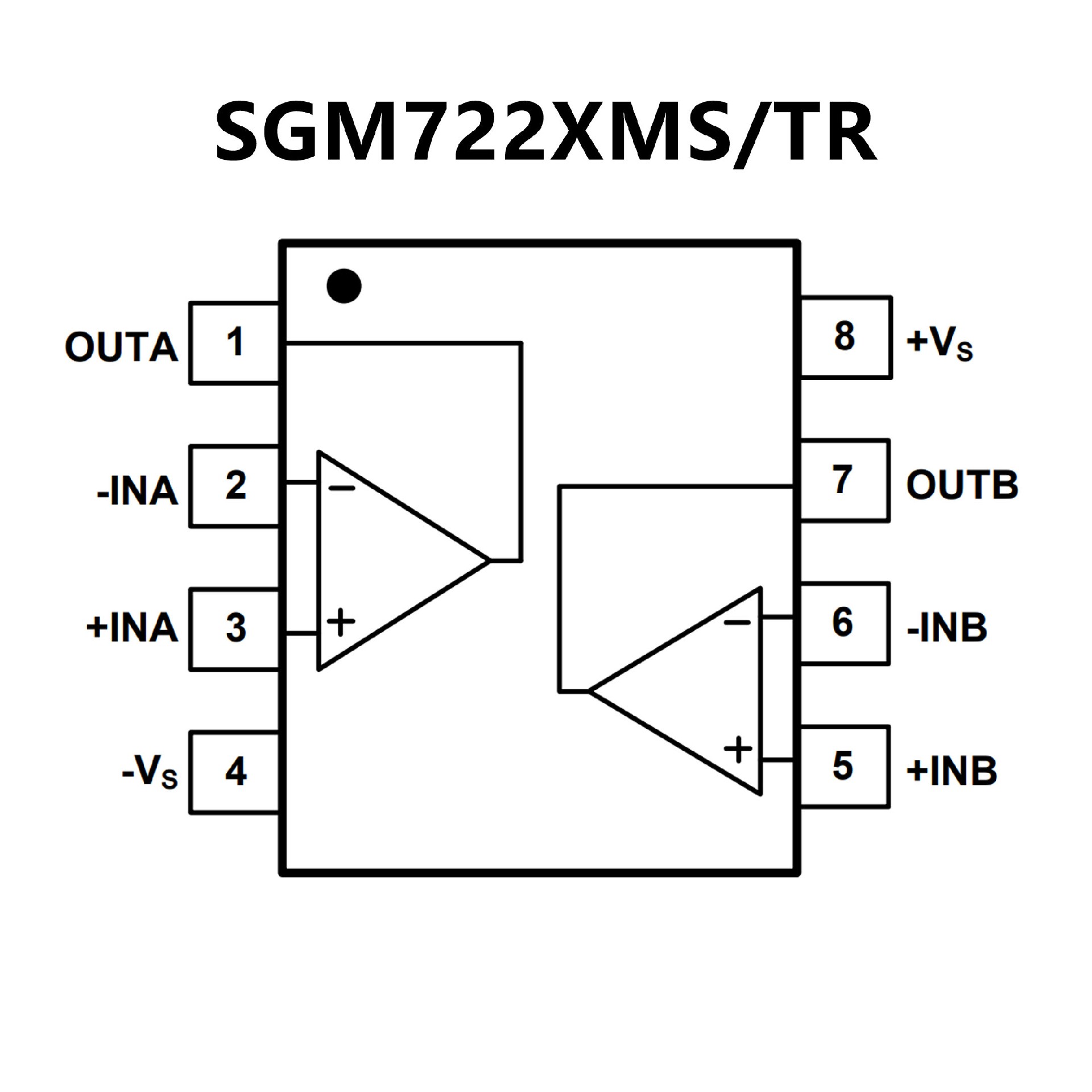

SGM722XMSTR.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:SGM721/3: 1.2mA (TYP)SGM722/4:
1.1mA/Amplifier (TYP)SGM723 Less than 1μA when Disabled
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM721 Available in Green SC70-5, SOT-23-5 andSOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 andTSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8Packages
SGM724 Available in Green TSSOP-14 andSOIC-14 Packages
• 200µA Supply Current per Amplifier
• 3.7 MHz Bandwidth
• Output Swing to Within 10 mV of Either Rail
• Input Voltage Range Exceeds the Rails
• 3 V/µs Slew Rate
• 25 nV/√Hz Input Voltage Noise
• Replaces KM4170 and KM4270
• FAN4174 Competes with OPA340 and
TLV2461; Available in a SOT23−5 Package

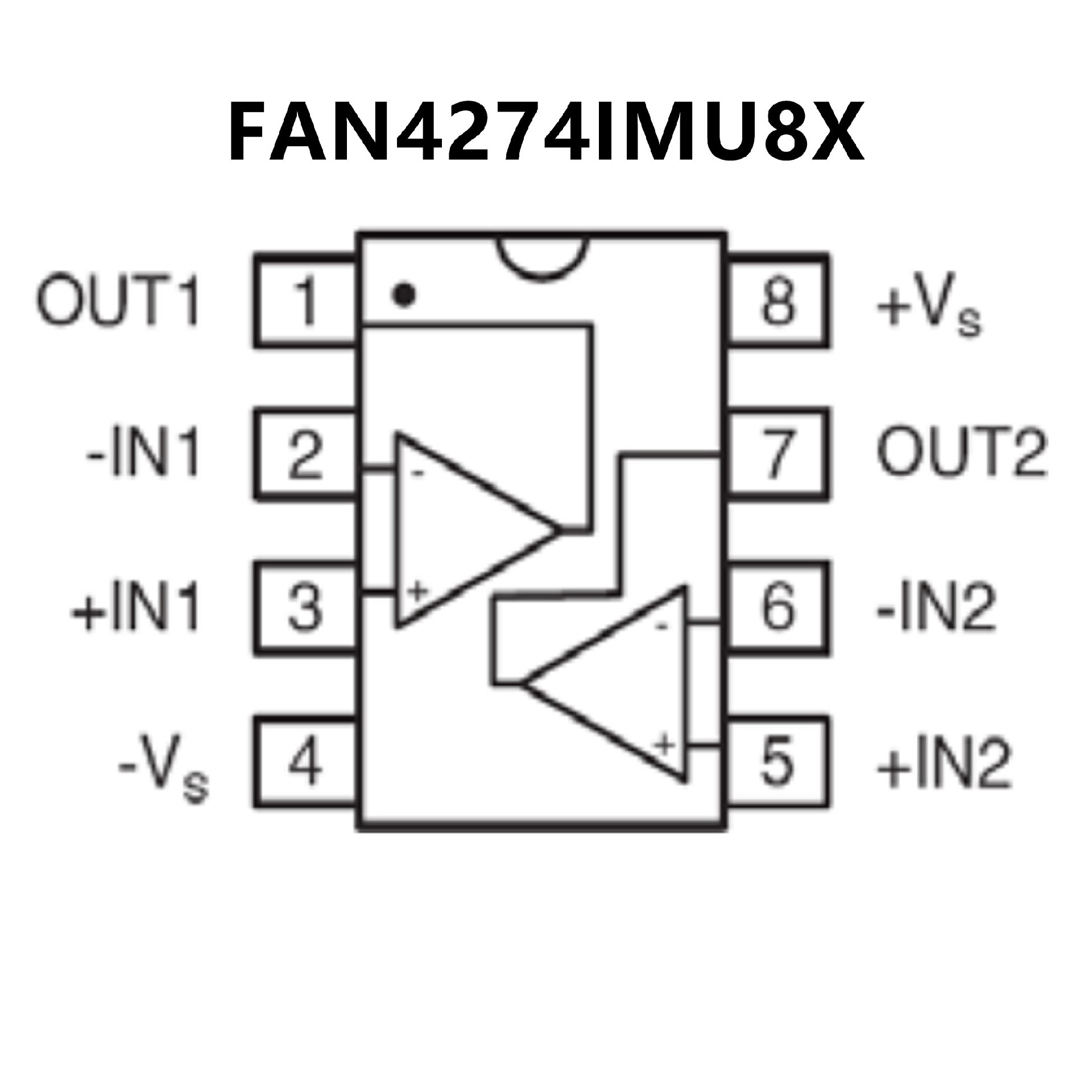

• FAN4274 Competes with OPA2340 and
TLV2462; Available in MSOP−8 Package
• Fully Specified at +5 V Supplies
• These are Pb−Free Devices
