• Rail-to-Rail Input and Output

• Input Offset Voltage: 4mV (MAX)

• High Gain-Bandwidth Product: 11MHz

• High Slew Rate: 8.5V/μs

• Settling Time to 0.1% with 2V Step: 0.21μs

• Overload Recovery Time: 0.6μs

• Low Noise: 8.5nV/√Hz at 10kHz

• Supply Voltage Range: 2.1V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

• Low Power:SGM721/3: 1.2mA (TYP)SGM722/4:

   1.1mA/Amplifier (TYP)SGM723 Less than

   1μA when Disabled

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:SGM721 Available in Green

  SC70-5, SOT-23-5 andSOIC-8 PackagesSGM722

   Available in Green MSOP-8, SOIC-8 andTSSOP-8

   PackagesSGM723 Available in Green SOT-23-6

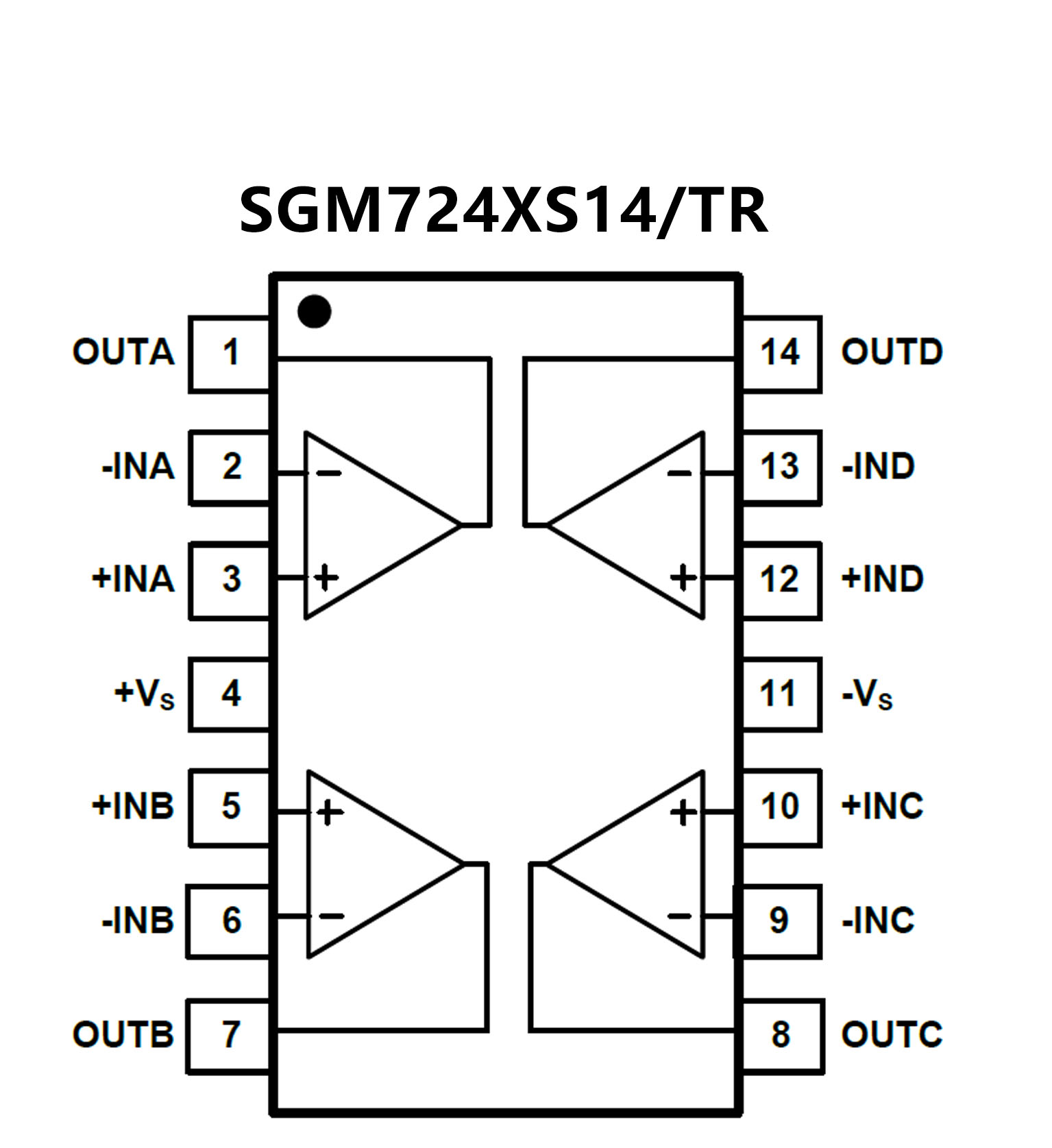

   and SOIC-8 PackagesSGM724 Available in

   Green TSSOP-14 andSOIC-14 Packages
