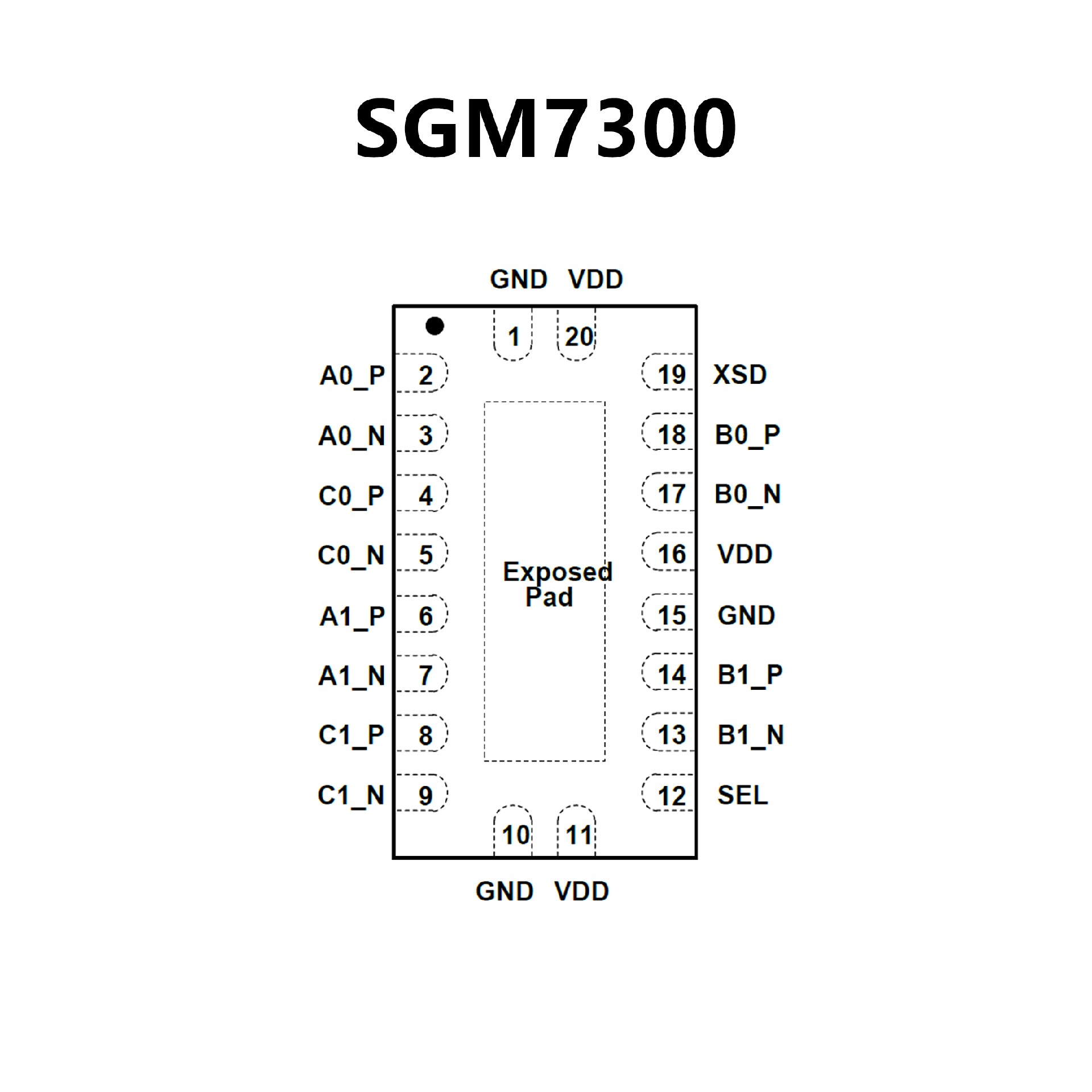

SGM7300.pdf• 2 Bidirectional Differential Channel, 2:1
Multiplexer/Demultiplexer
• High-Speed Signal Switching for 10Gbps
Applications
• High Bandwidth: 10GHz at -3dB
• Low Insertion Loss:
-0.4dB at 100MHz
-0.9dB at 4.0GHz
• Low Return Loss: -15dB at 4GHz
• Low Crosstalk: -35dB at 4GHz
• Low Off-State Isolation: -15dB at 4GHz
• Low Intra-Pair Skew: 10ps (TYP)
• Low Intra-Pair Skew: 50ps (MAX)
• VDD Operating Range: 3.3V ± 10%
• Available in a Green TLGA-2.5×4.5-20L Package
• Provides MUX/DEMUX Solution for USB Type-
C™ Ecosystem for USB 3.1 Gen 1 and Gen 2
Data Rates
• Compatible With MIPI DSI/CSI, FPDLinkIII, LVDS,
and PCIE Gen II, III
• Operates up to 10 Gbps
• Wide –3-dB Differential BW of over 8 GHz
• Excellent Dynamic Characteristics (at 5 GHz)
Crosstalk = –32 dB
Off Isolation = –19 dB
Insertion Loss = –1.6 dB
Return Loss = –12 dB
• Bidirectional "Mux/De-Mux" Differential Switch
• Supports Common Mode Voltage 0 to 2 V
• Single Supply Voltage VCC of 3.3 V
• Commercial Temperature Range of 0°C to 70°C

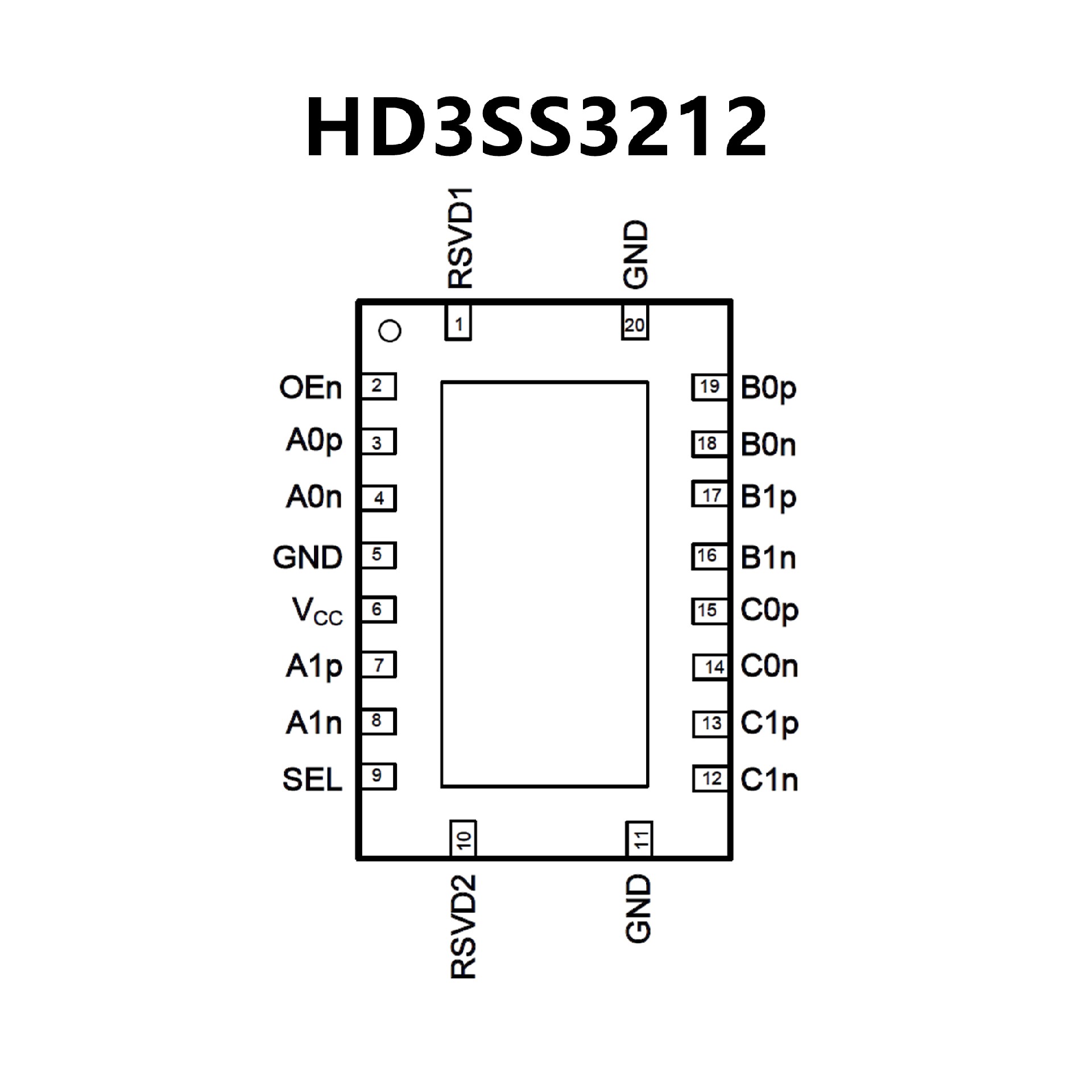

(HD3SS3212RKS)
• Industrial Temperature Range of –40°C to 85°C
(HD3SS3212IRKS)
