6GHz, 5V, 2:1(SPDT) 10 Channel MIPI Switch with 1.8V Logic Support, SGM7302 P2P TMUX646.
SGM7302
SGM7302.pdf
SGM7302.pdfFEATURES
• Supply Voltage Range: 1.5V to 5.5V
• Low RON: 5Ω (TYP)
• High Bandwidth: 6GHz
• Ultra Low Crosstalk: -40dB
• Low Power Disable Mode
• 1.2V Logic Compatible
• Bidirectional Signal Path
• Available in a Green FOCSP-2.43×2.43-36B Package

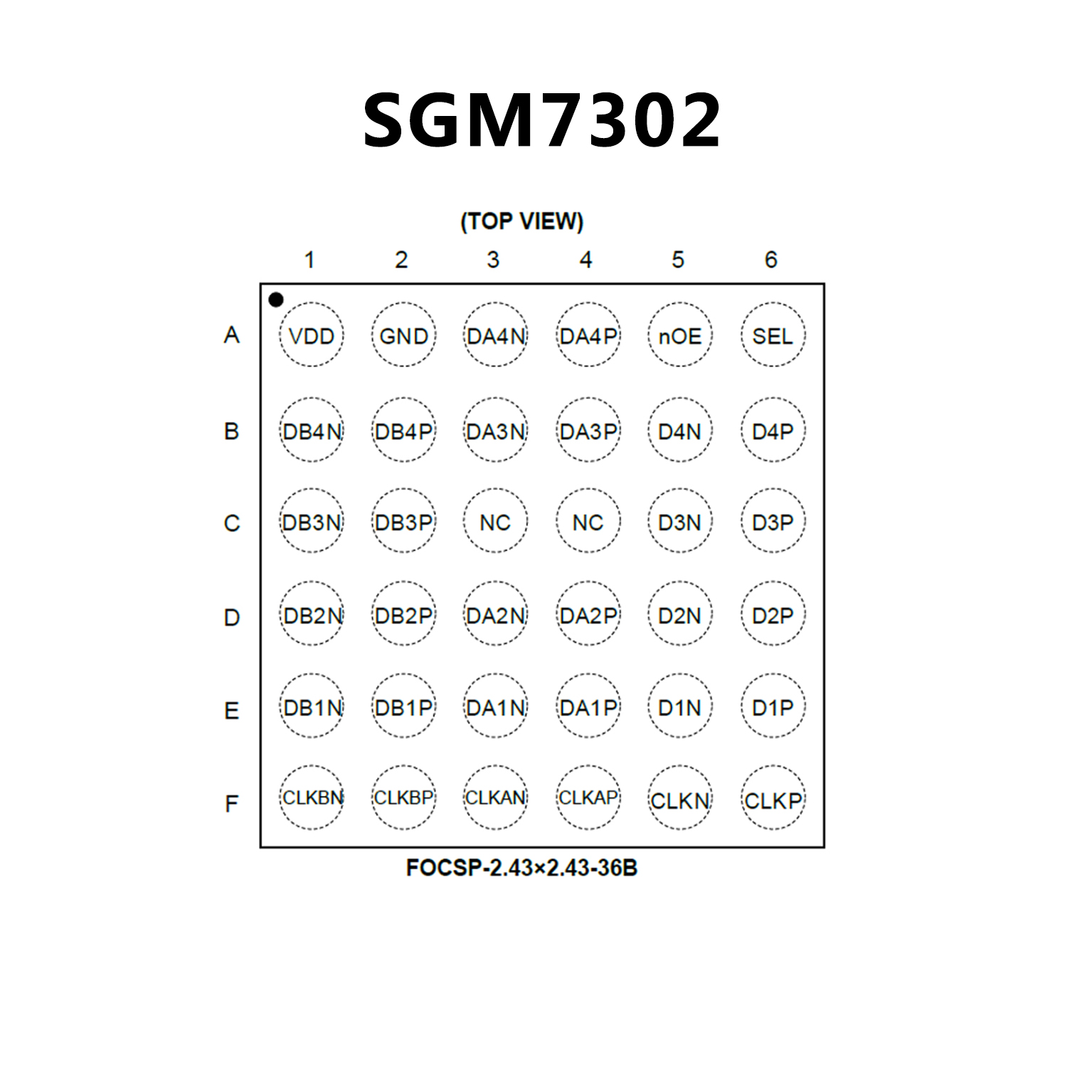

PIN CONFIGUTION
优势替代
FEATURES
• Supply range of 1.5 V to 5.5 V
• 10-Channel 2:1 bidirectional switch
• Supports MIPI CSI/DSI, SATA,
LVDS, RGMII, DDR, ethernet interfaces
• Powered-off protection:
I/Os Hi-Z when VDD = 0 V
• Low RON: 6-Ω typical
• High bandwidth : 6 GHz
• Ultra low crosstalk: -40 dB
• Low power disable mode
• 1.2 V logic compatible
• Bidirectional signal path
• ESD protection:
6-kV human body model (HBM)
2-kV human body model (CDM)

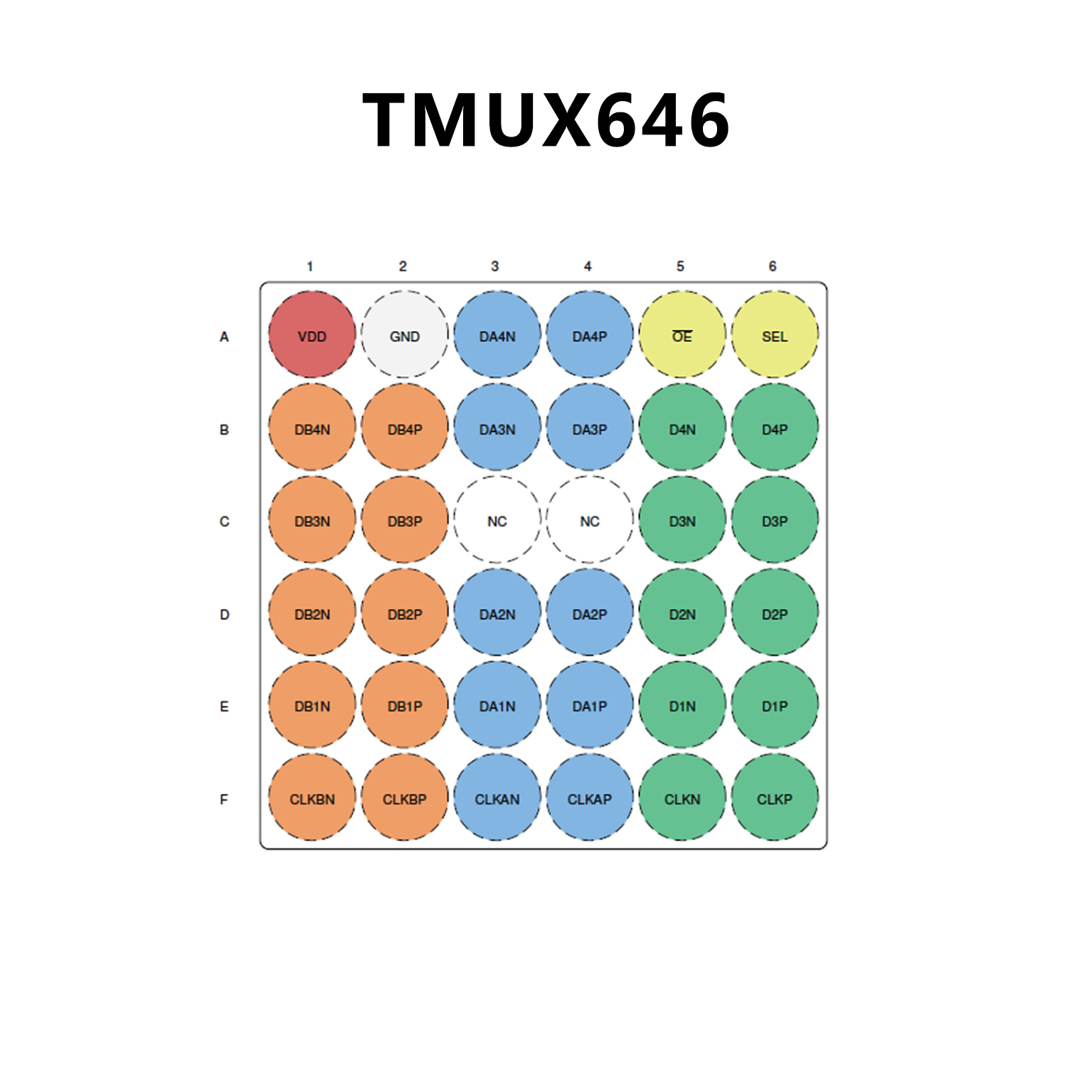

PIN CONFIGUTION
