Small Logic Inverter,SGM7SZ04XC5GTR Replace NC7S04.
SGM7SZ04
SGM7SZ04.pdf
SGM7SZ04.pdfFEATURES
• Ultra-High Speed: tPD = 4.2ns (TYP)
into 50pFat VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX
Operated atVCC = 3.3V
• Power Down High-Impedance Input/Output
• Over-Voltage Tolerant Input Facilitates
5V to 3VTranslation
• Available in Green UTDFN-1.45×1-6L,
SC70-5and SOT-23-5Packages

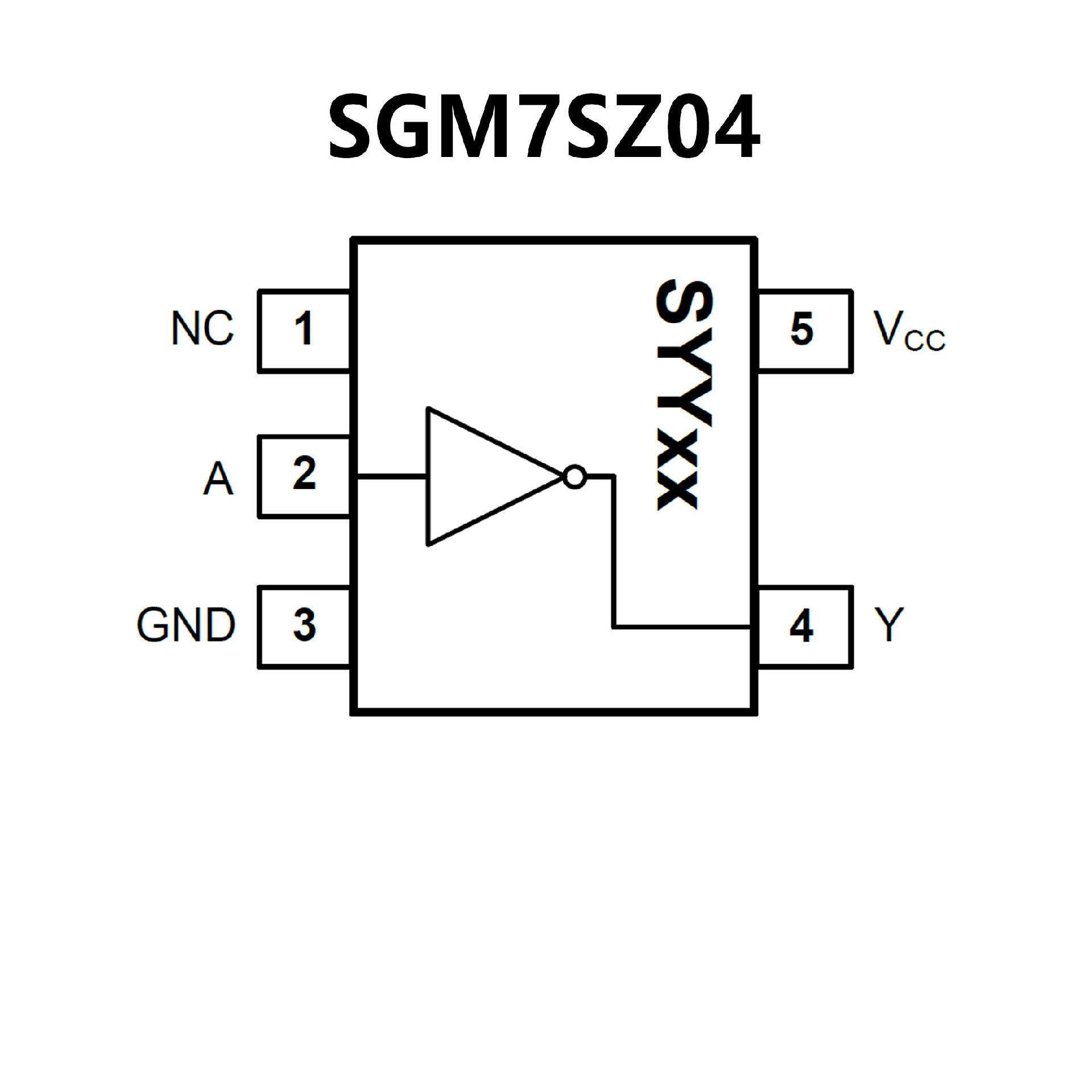

PIN CONFIGUTION
优势替代
FEATURES
• Space−Saving SC−74A and
SC−88A 5−Lead Package
• Ultra−Small MicroPak™ Leadless Package
• High Speed: tPD = 3 ns Typ
• Low Quiescent Power: ICC < 1 µA
• Balanced Output Drive: 2 mA IOL, −2 mA IOH
• Broad VCC Operating Range: 2 V – 6 V
• Balanced Propagation Delays
• Specified for 3 V Operation
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant

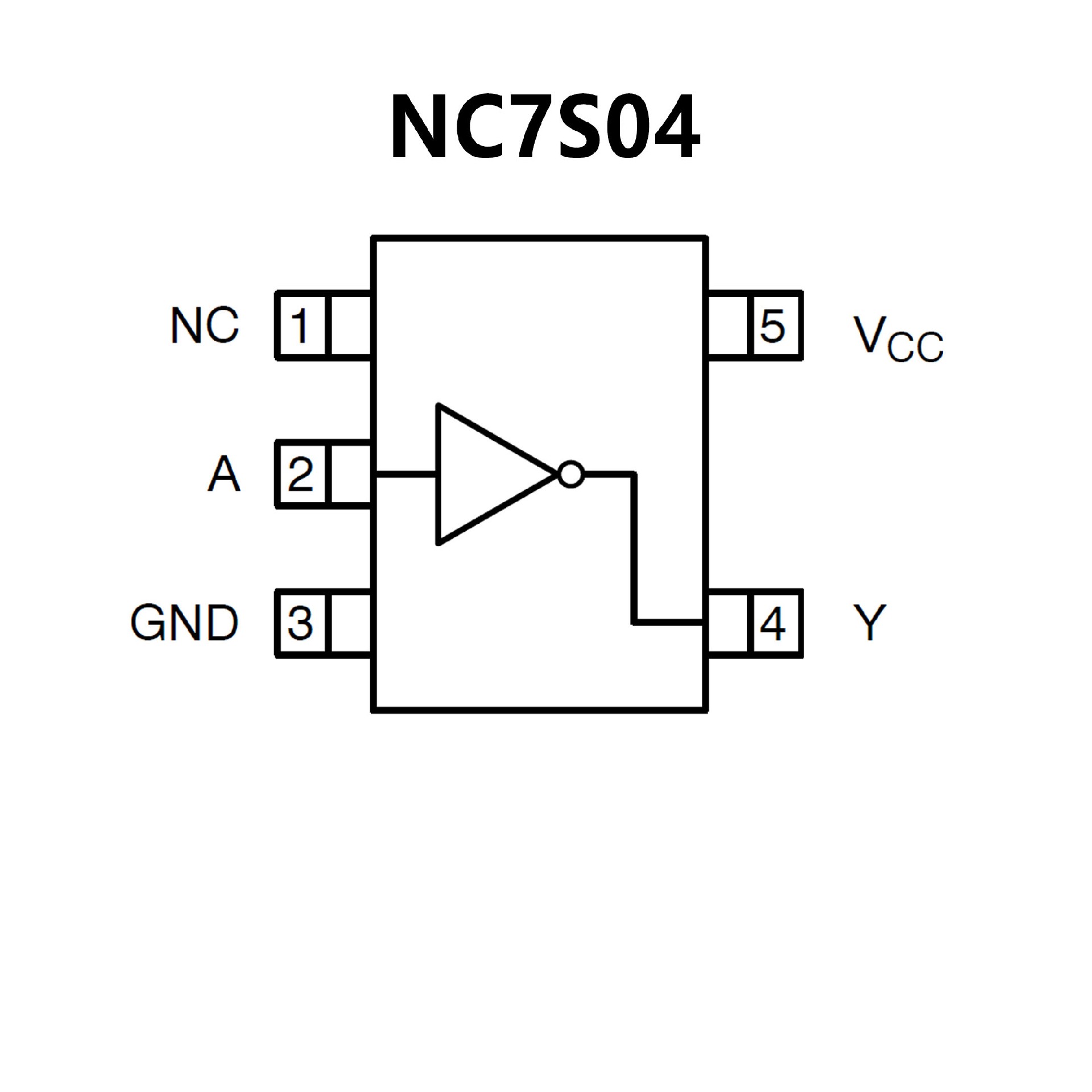

PIN CONFIGUTION
