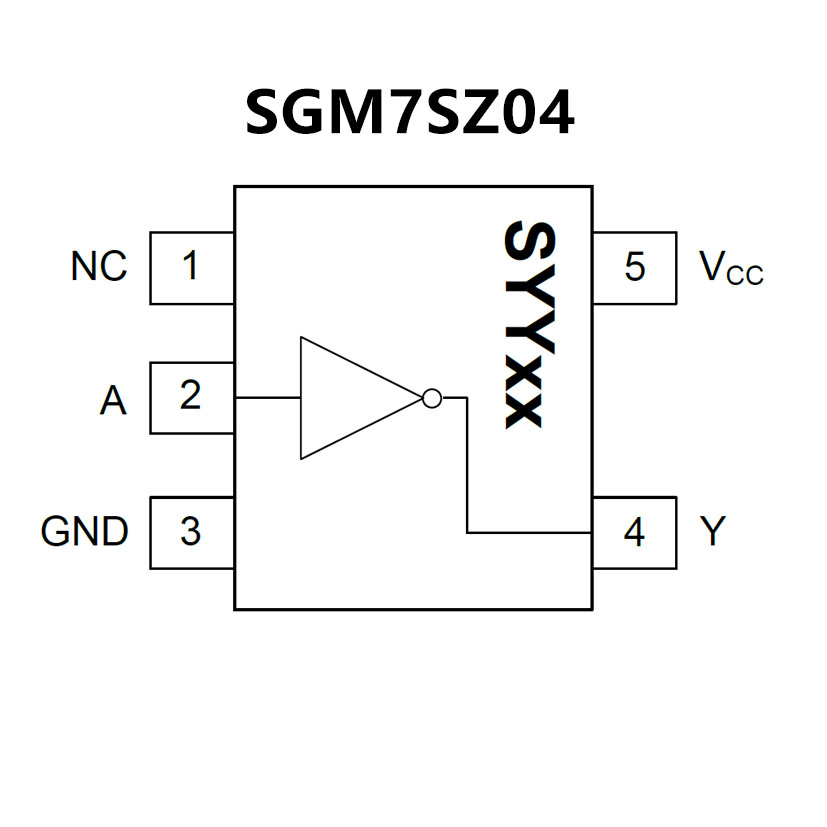

SGM7SZ04XN5G.pdf• Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at
VCC = 3.3V
• Power Down High-Impedance Input/Output
• Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
• Available in Green UTDFN-1.45×1-6L,
SC70-5and SOT-23-5 Packages
• Available in the Ultra-Small 0.64-mm2
• Package (DPW) with 0.5-mm Pitch
• Supports 5-V VCC Operation
• Inputs Accept Voltages up to 5.5 V Allowing
Down Translation to VCC
• Max tpd of 3.3 ns at 3.3-V
Low Power Consumption, 10-μA Max I
±24-mA Output Drive at 3.3-V
Ioff Supports Live-Insertion, Partial-Power
Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
