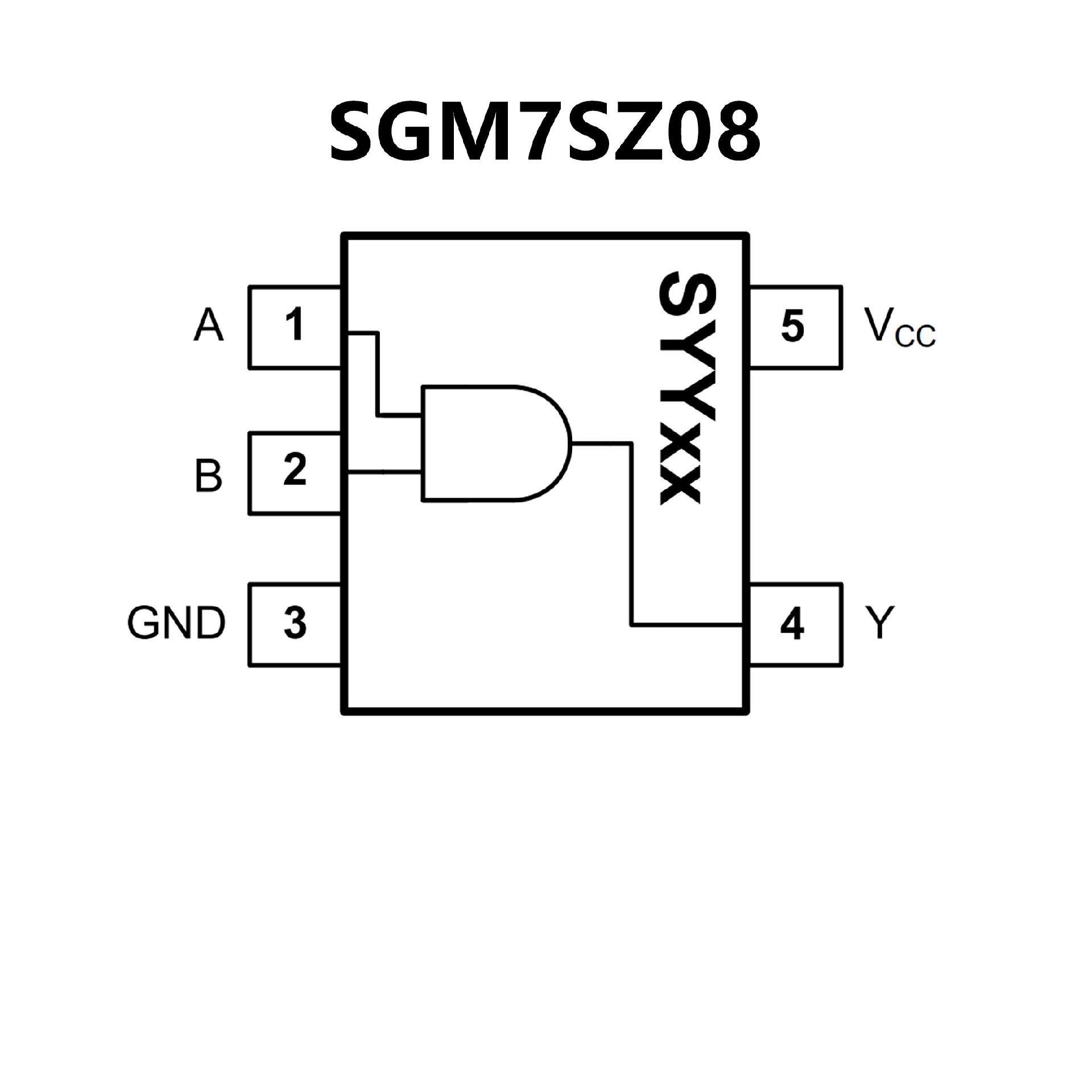

SGM7SZ08.pdf• Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L
and UTDFN-1.45×1-6L Packages
• Ultra−High Speed: tPD = 2.7 ns (Typical)
into 50 pF at 5 V VCC
• High Output Drive: ±24 mA at 3 V VCC
• Broad VCC Operating Range: 1.65 V to 5.5 V
• Matches Performance of LCX Operated at 3.3 V VCC
• Power Down High Impedance Inputs / Outputs
• Over−Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
• Proprietary Noise / EMI Reduction Circuitry
• Ultra−Small MicroPak™ Packages
• Space−Saving SC−74A and SC−88A Packages
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHSCompliant
