Small Logic Two-Input AND Gate,SGM7SZ08YC5G Replace SN74AHCT1G08.
SGM7SZ08YC5G
SGM7SZ08YC5G.pdf
SGM7SZ08YC5G.pdfFEATURES
• Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L
and UTDFN-1.45×1-6L Packages

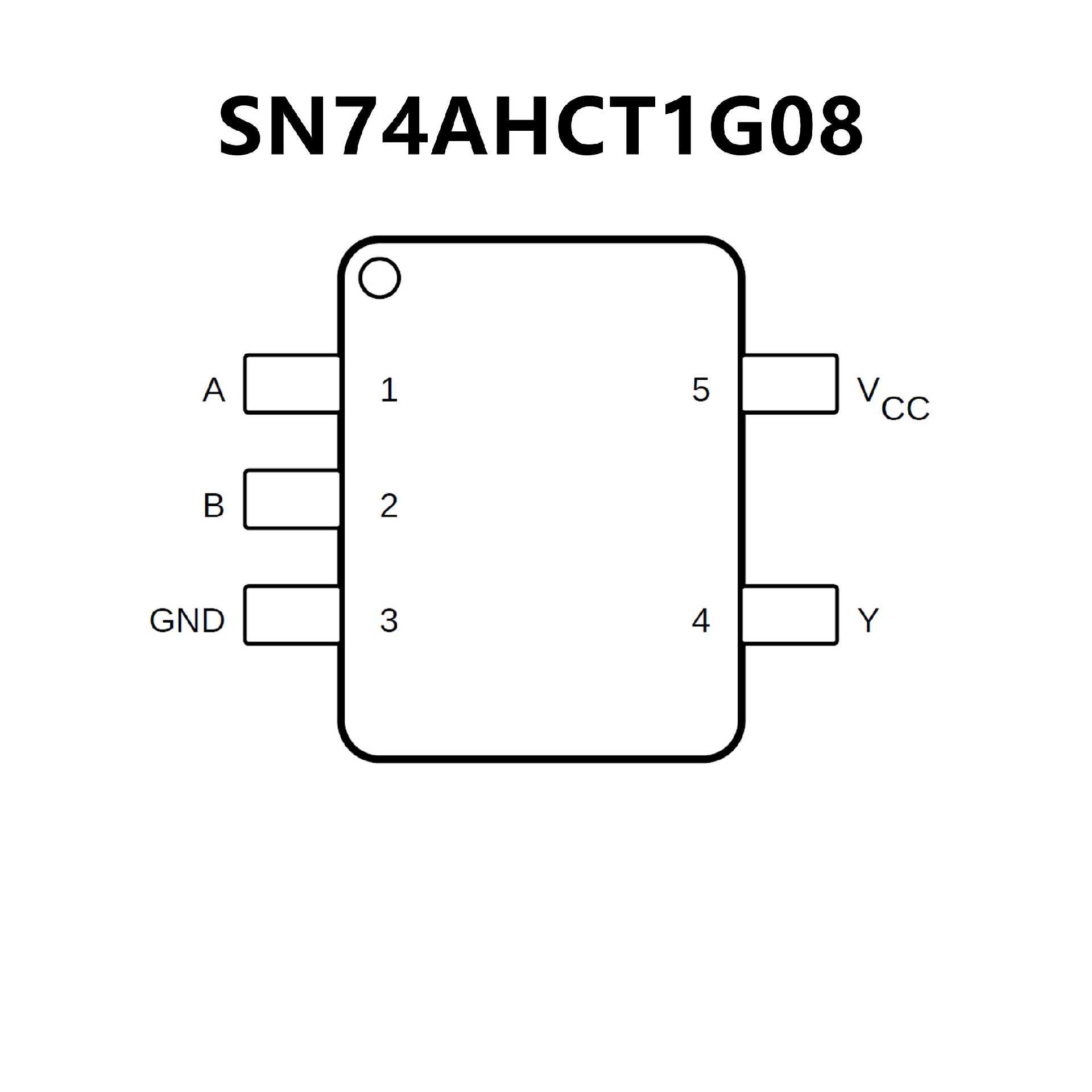

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range: 4.5 V to 5.5 V
• Maximum tpd of 7.1 ns at 5 V
• Low Power Consumption: Maximum ICC of 10-μA
• ±8-mA Output Drive at 5 V
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA
Per JESD 17

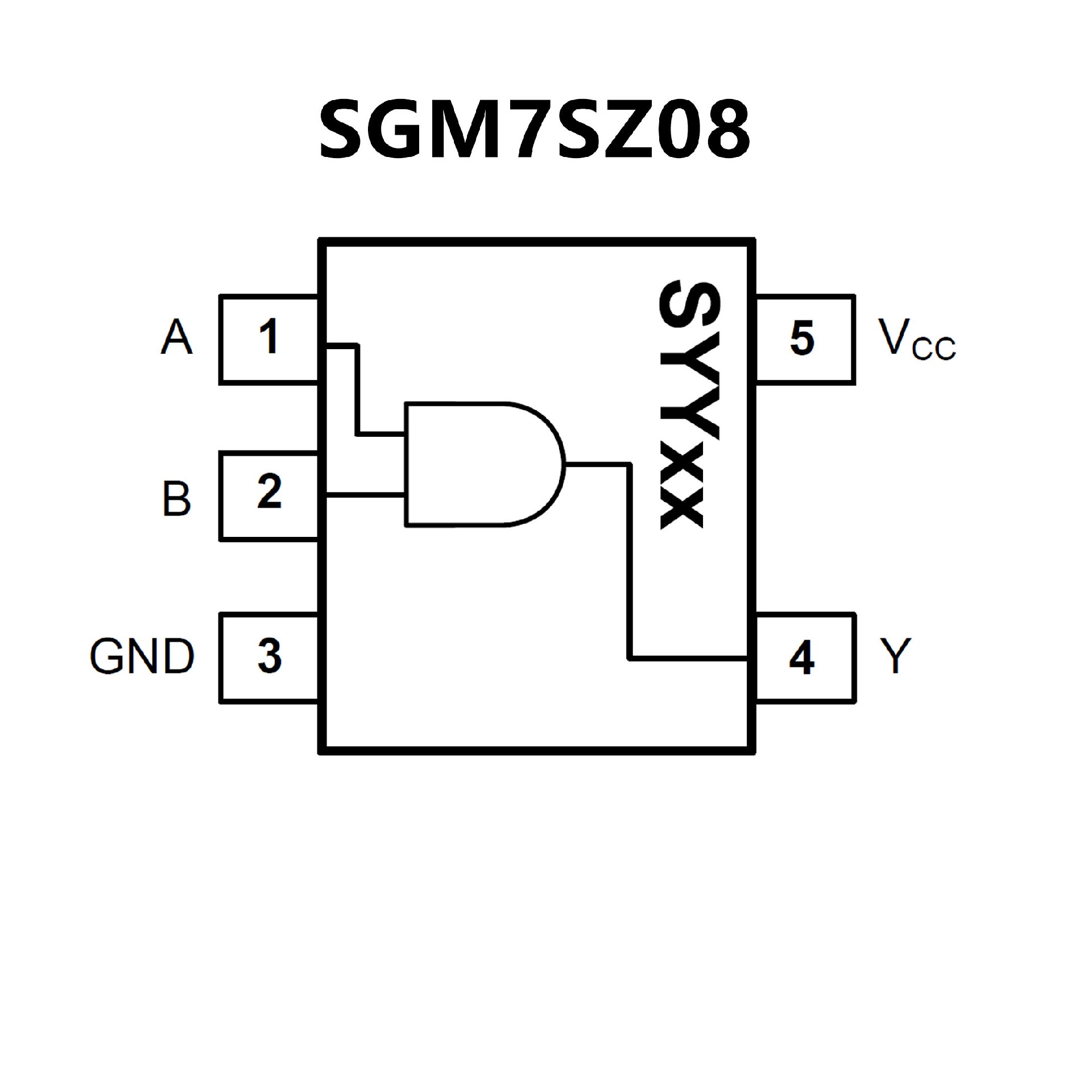

PIN CONFIGUTION
