Small Logic Buffer with Three-State Output,SGM7SZ125YC5G Replace SN74AHCT1G125.
SGM7SZ125YC5G
SGM7SZ125YC5G.pdf
SGM7SZ125YC5G.pdfFEATURES
• Ultra-High Speed: tPD = 3.5ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at
VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

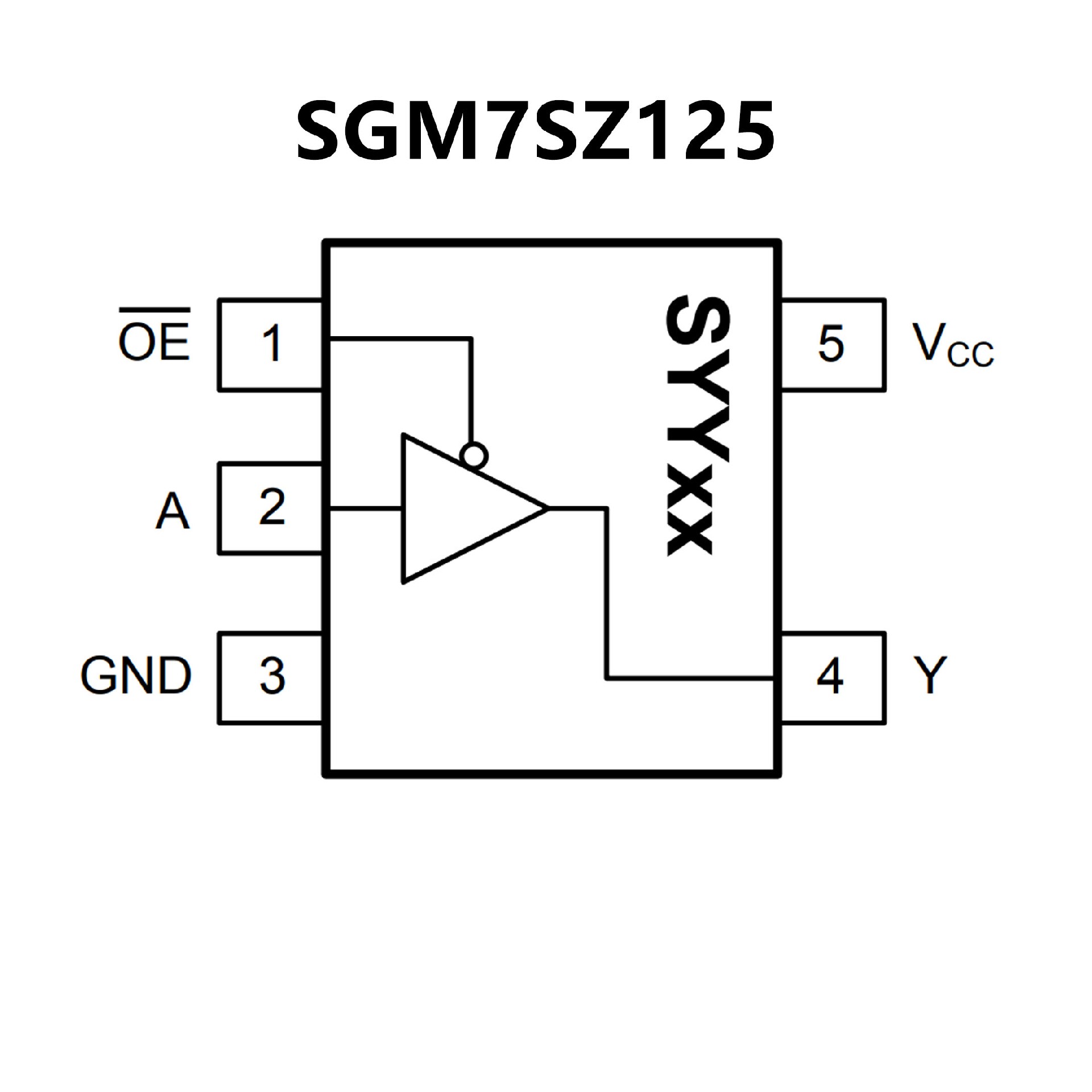

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range of 4.5 V to 5.5 V
• Max tpd of 6 ns at 5 V
• Low Power Consumption, 10-μA Max ICC
• ±8-mA Output Drive at 5 V
• Inputs are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA
Per JESD 17

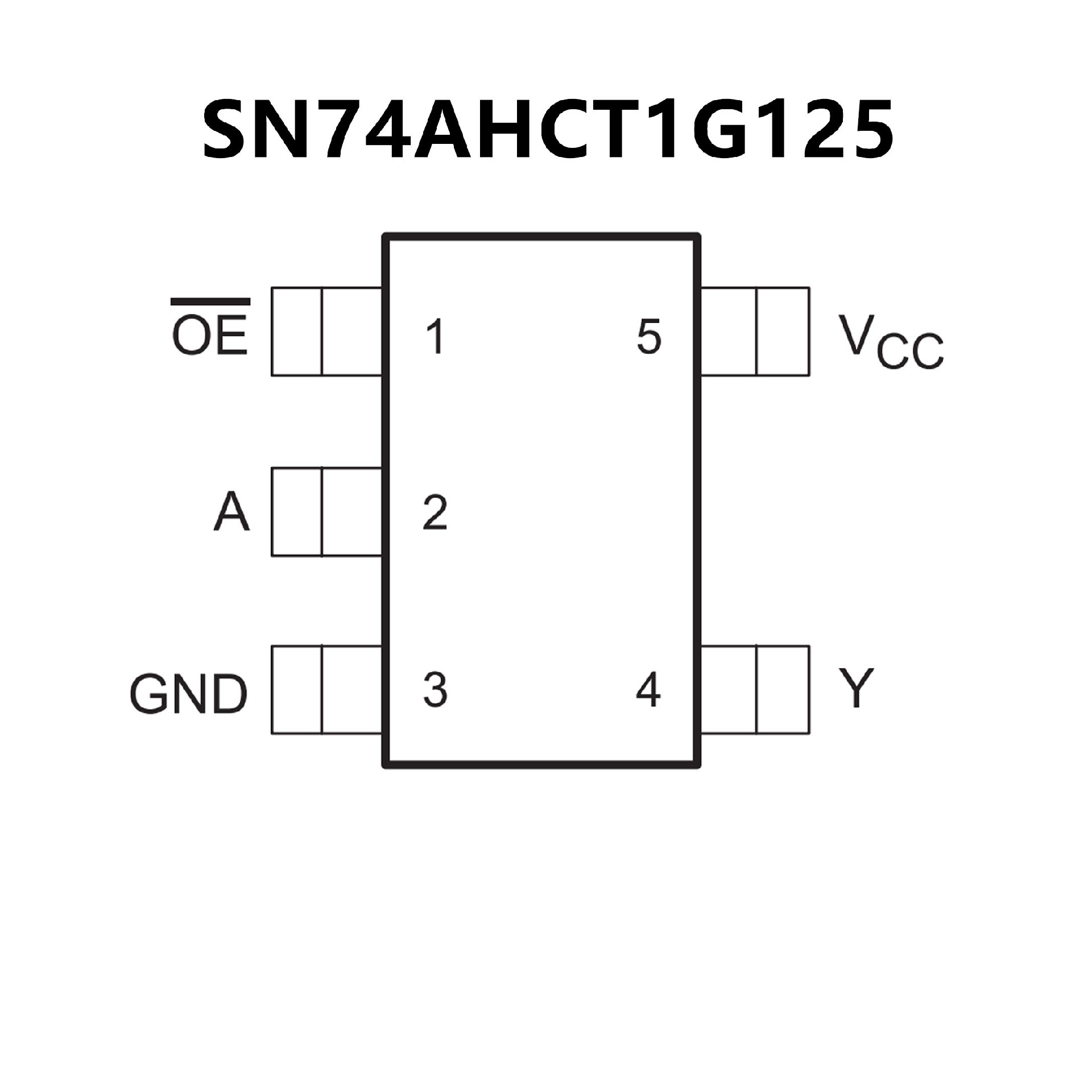

PIN CONFIGUTION
