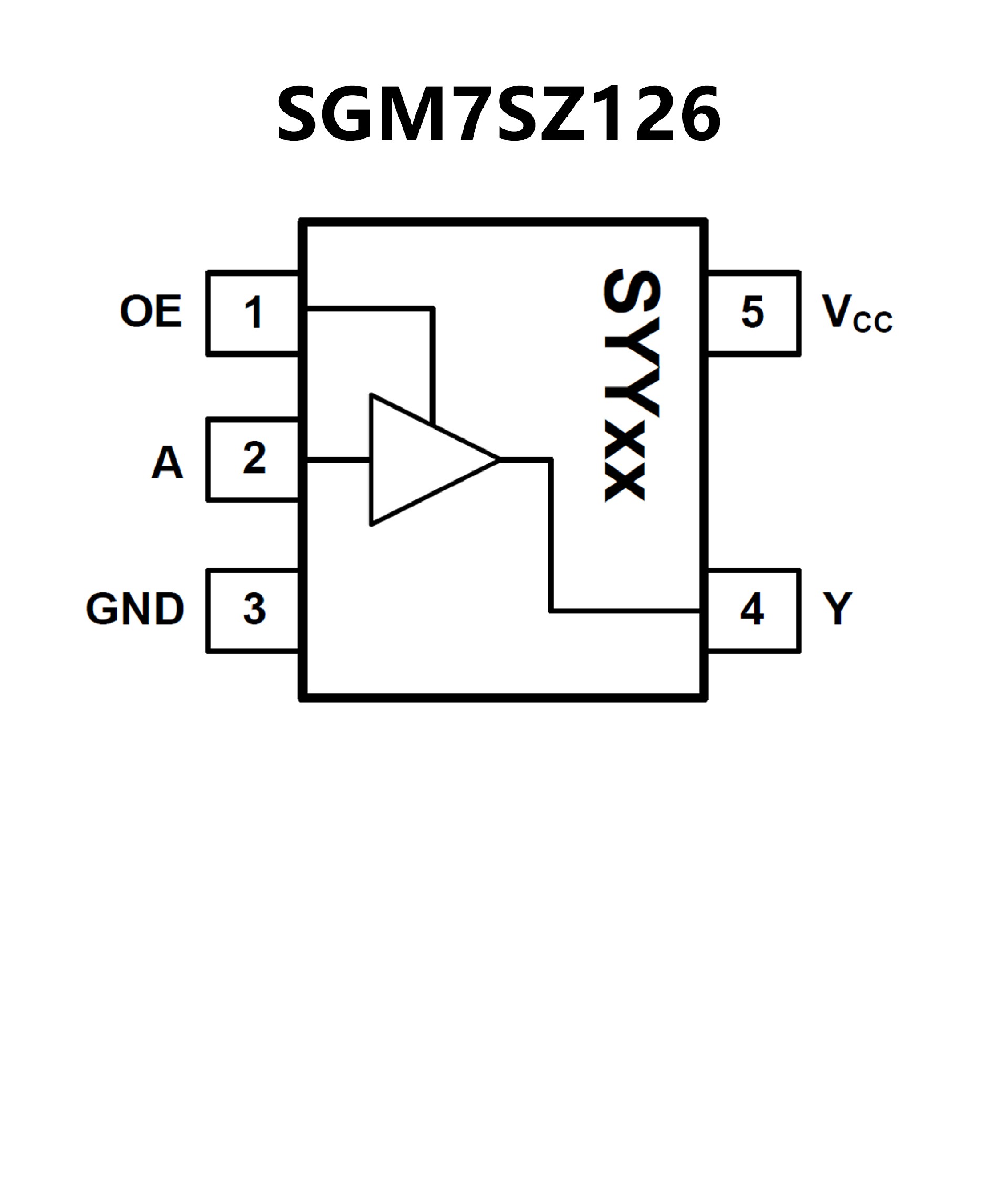

SGM7SZ126.pdf• Ultra-High Speed: tPD = 3.4ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

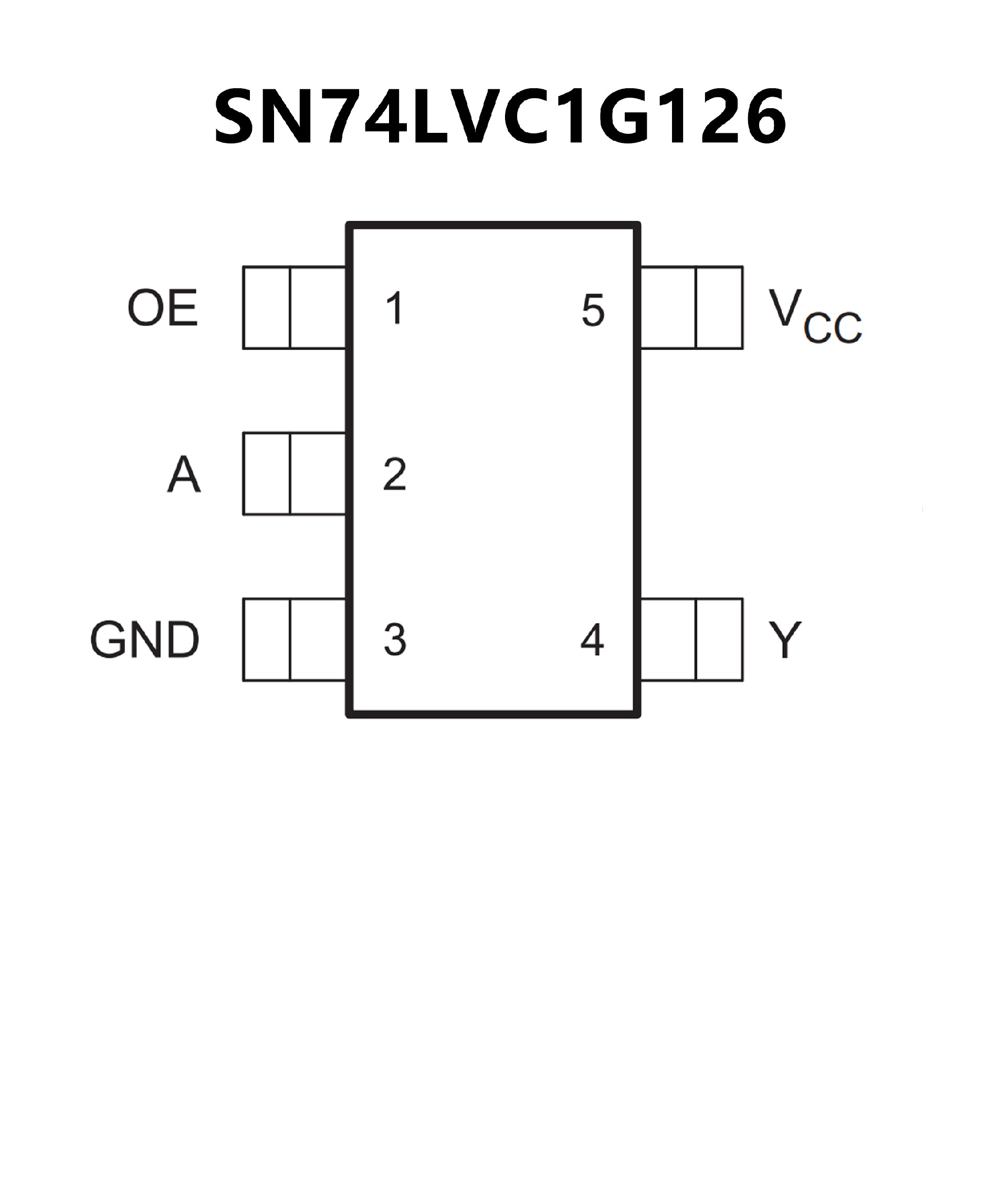

• Available in the Texas Instruments
• NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back Drive Protection
• Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model
200-V Machine Model
1000-V Charged-Device Model
