Small Logic Inverter with Schmitt Trigger Input,SGM7SZ14 Replace SN74AHC1G14.
SGM7SZ14
SGM7SZ14.pdf
SGM7SZ14.pdfFEATURES
• Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at
VCC = 3.3V
• Power Down High-Impedance Input/Output
• Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

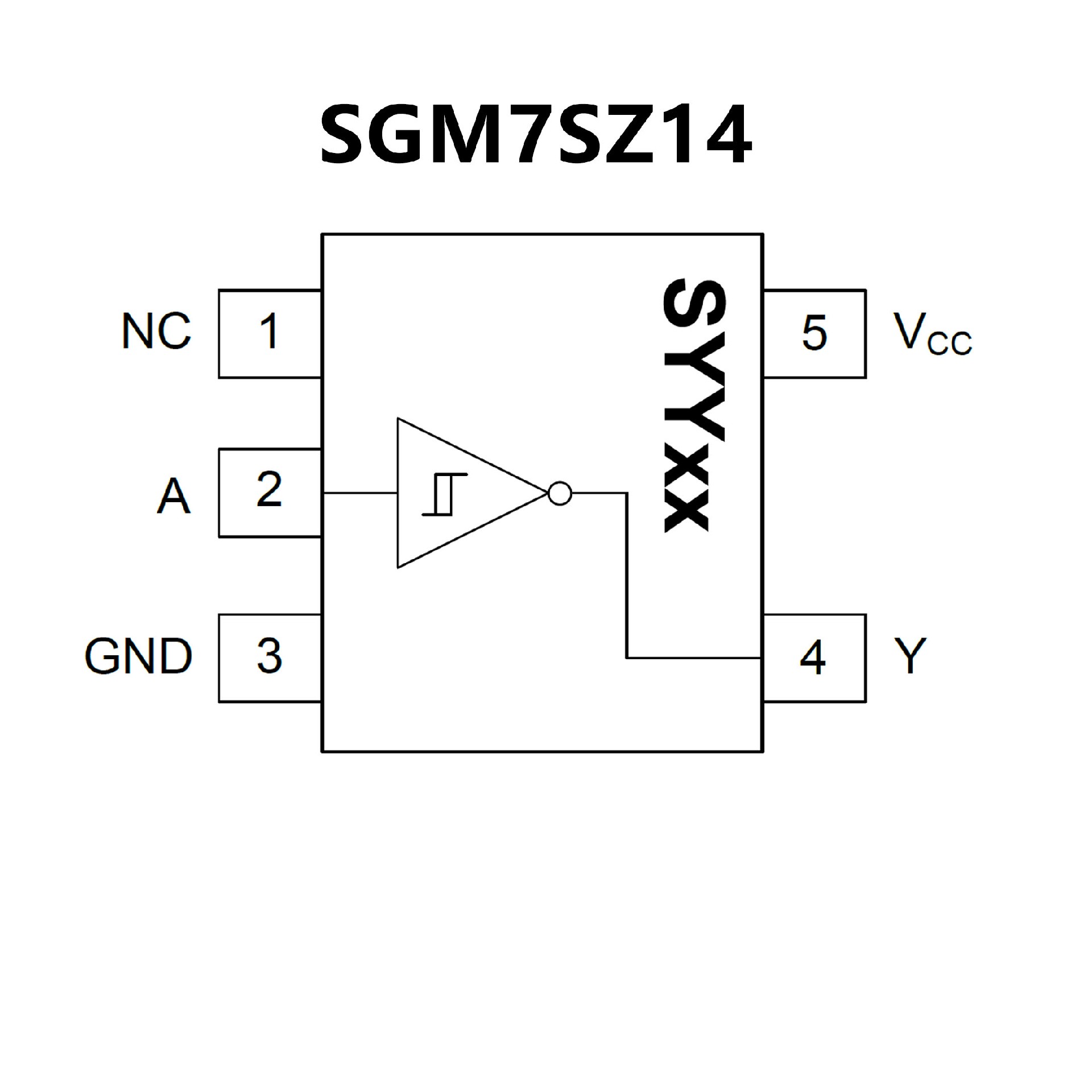

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range of 2 V to 5.5 V
• Max t pd of 6 ns at 5 V
• Low Power Consumption, 10-µA Max ICC
• ±8-mA Output Drive at 5 V

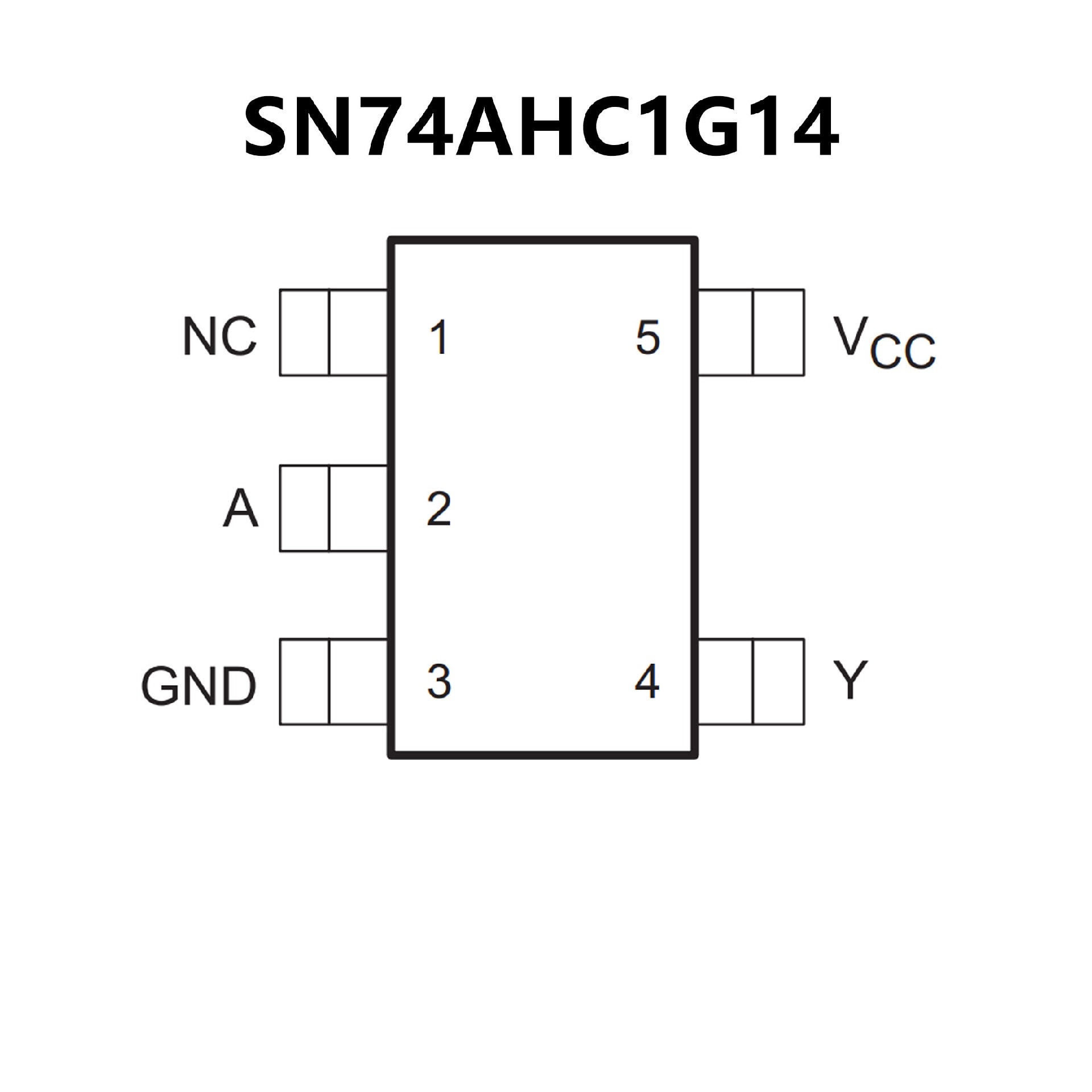

PIN CONFIGUTION
