Small Logic Inverter with Schmitt Trigger Input,SGM7SZ14XC5G Replace SN74AHCT1G14.
SGM7SZ14XC5G
SGM7SZ14XC5G.pdf
SGM7SZ14XC5G.pdfFEATURES
• Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at
VCC = 3.3V
• Power Down High-Impedance Input/Output
• Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

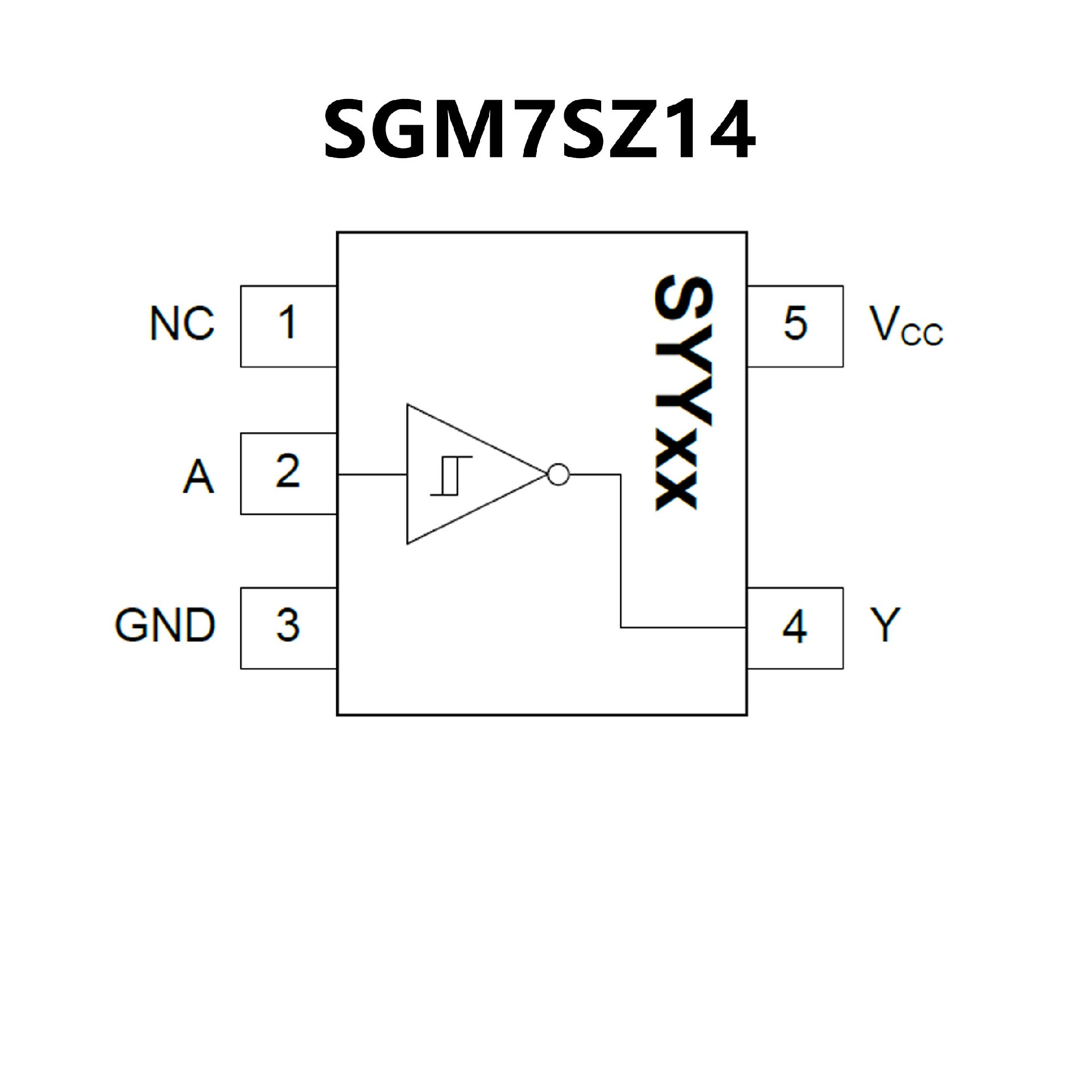

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range 4.5-V to 5.5-V
• Max tpd of 8 ns at 5-V
• Low Power Consumption, 10-μA Max ICC
• ±8-mA Output Drive at 5-V
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per
JESD 17

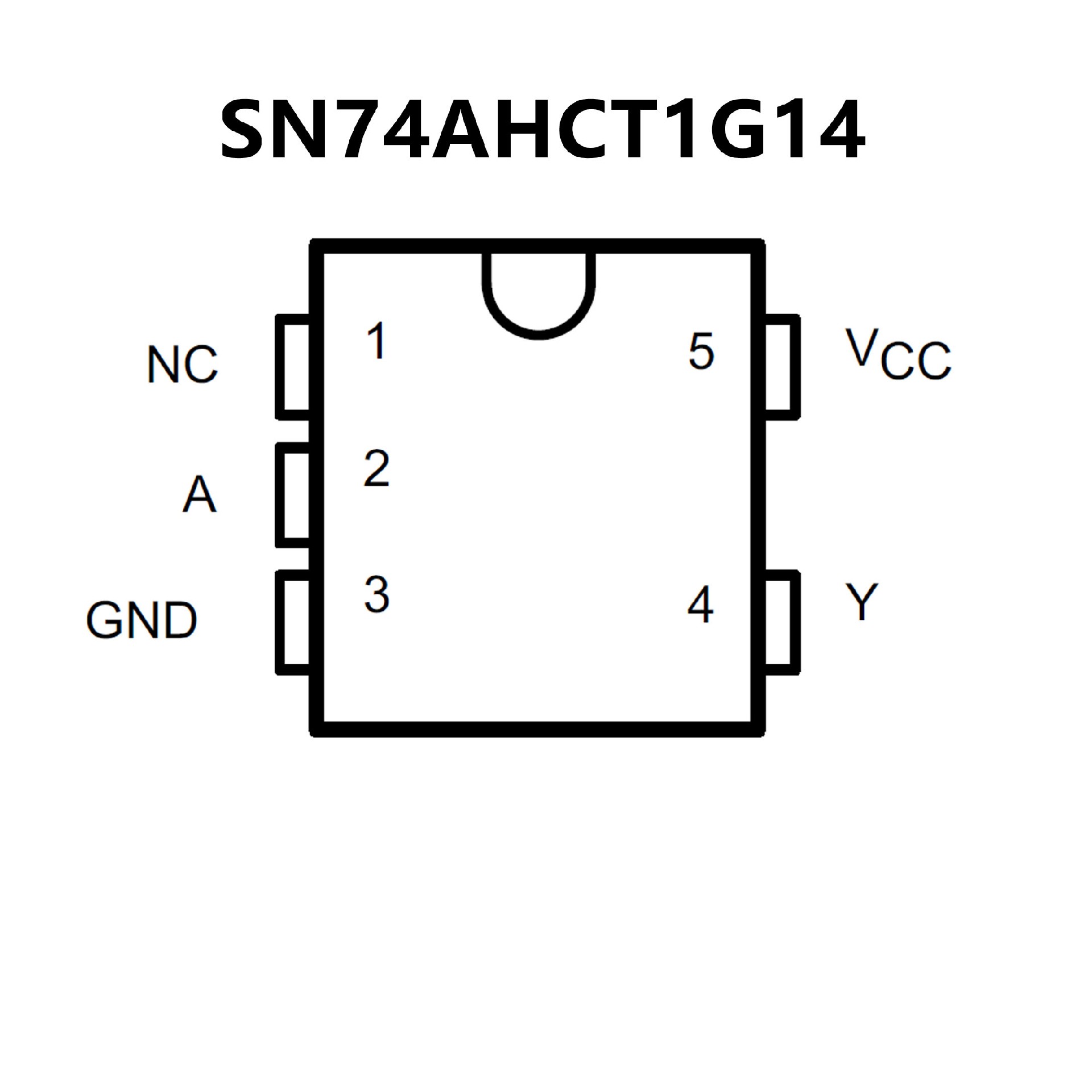

PIN CONFIGUTION
