Small Logic Inverter with Schmitt Trigger Input,SGM7SZ14XC5GTR P2P 74LVC1G14GV-125.
SGM7SZ14
SGM7SZ14.pdf
SGM7SZ14.pdfFEATURES
• Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at
VCC = 3.3V
• Power Down High-Impedance Input/Output
• Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

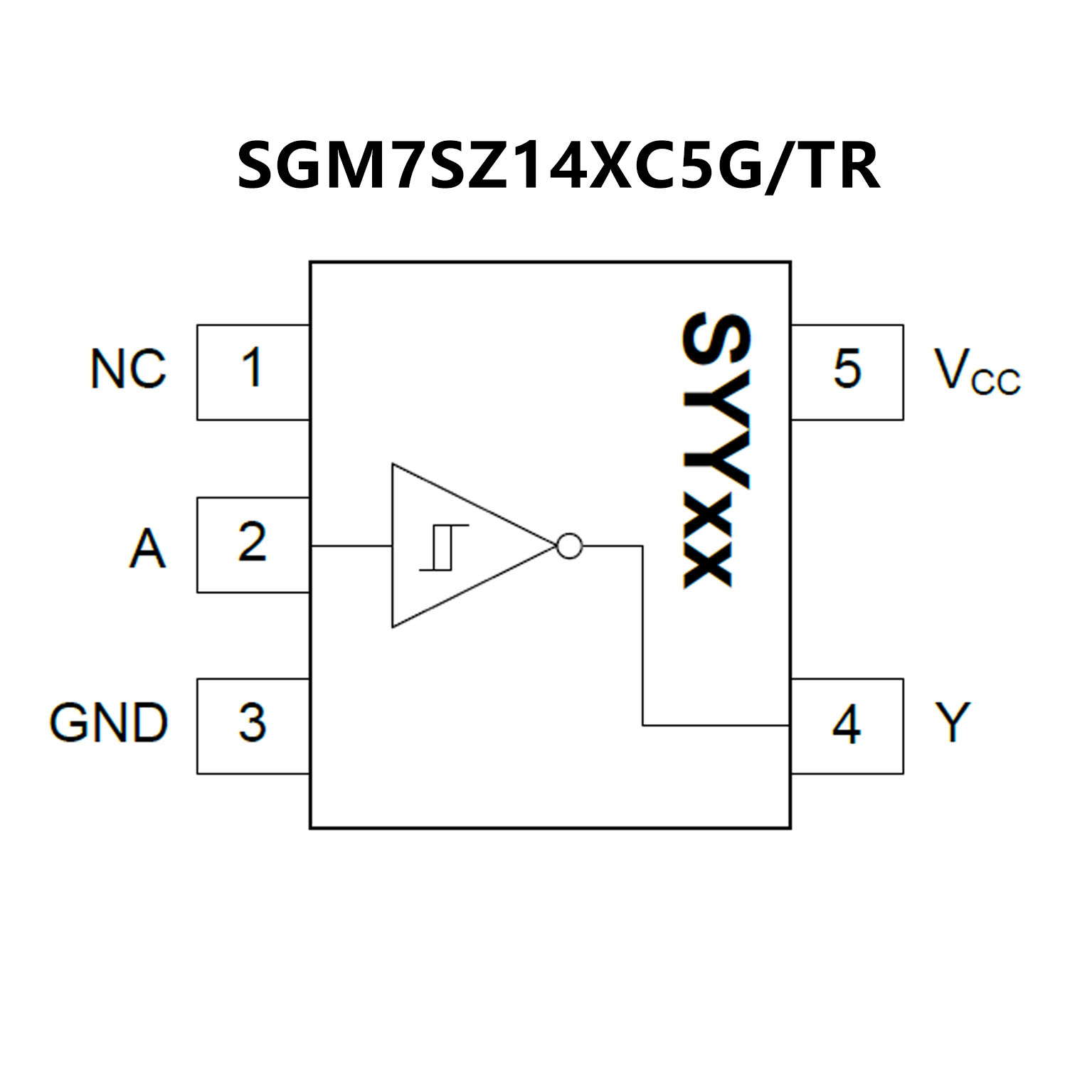

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range from 1.65 V to 5.5 V
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• IOFF circuitry provides partial Power-down mode
operation
• ±24 mA output drive (VCC = 3.0 V)
• Latch-up performance exceeds 250 mA
• Direct interface with TTL levels
• Unlimited rise and fall times
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• JESD36 (4.5 V to 5.5 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2000V
• MM: JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C.

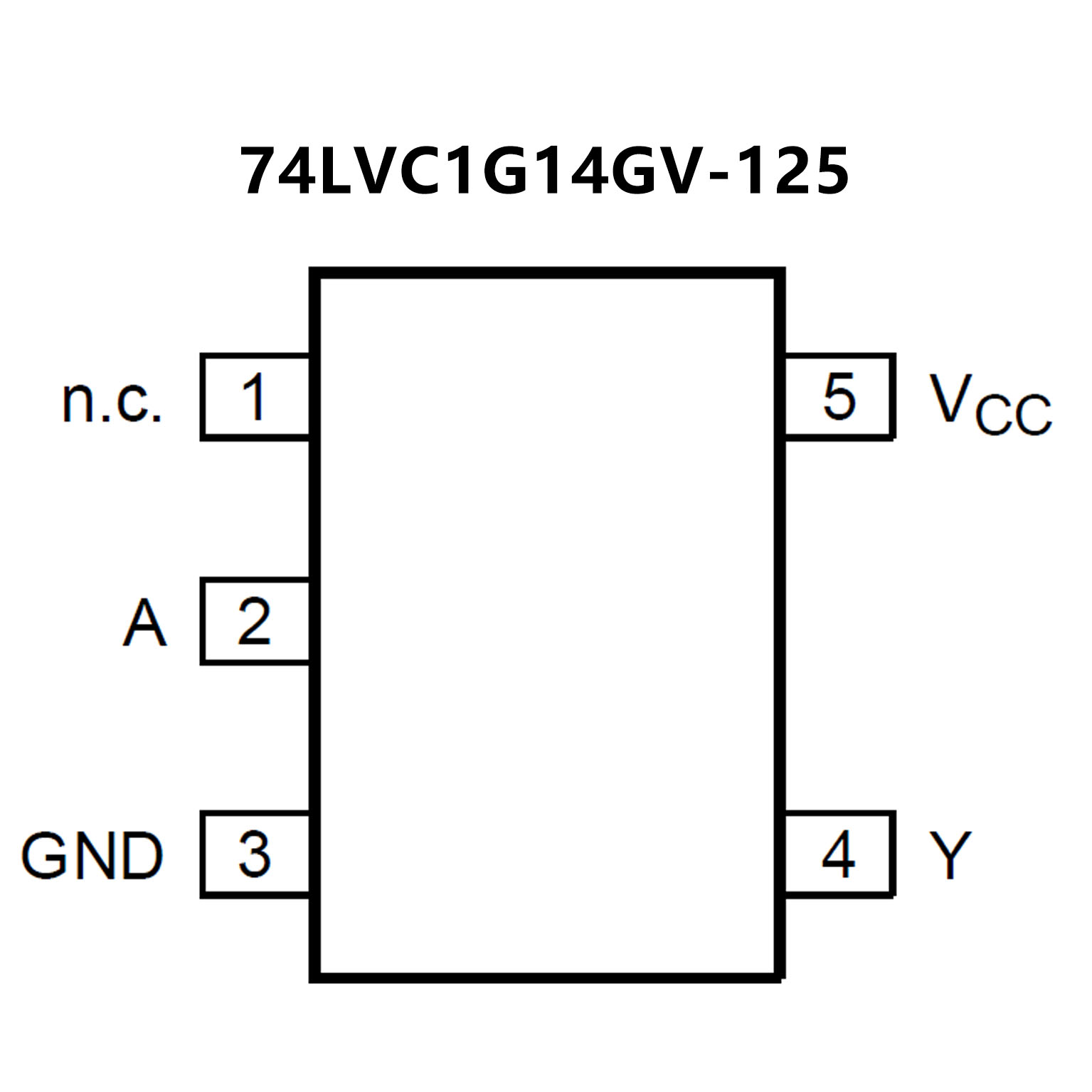

PIN CONFIGUTION
