Octal Buffers/Line Drivers,with 3-State Outputs,SGM7SZ244 Replace MC74ACT244.
SGM7SZ244
SGM7SZ244.pdf
SGM7SZ244.pdfFEATURES
• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current Outputs Drive Up to 15 LSTTLLoads
• 3-State Outputs Drive Bus Lines or
BufferMemory Address Registers
• Low Power Consumption, ICC: 25μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

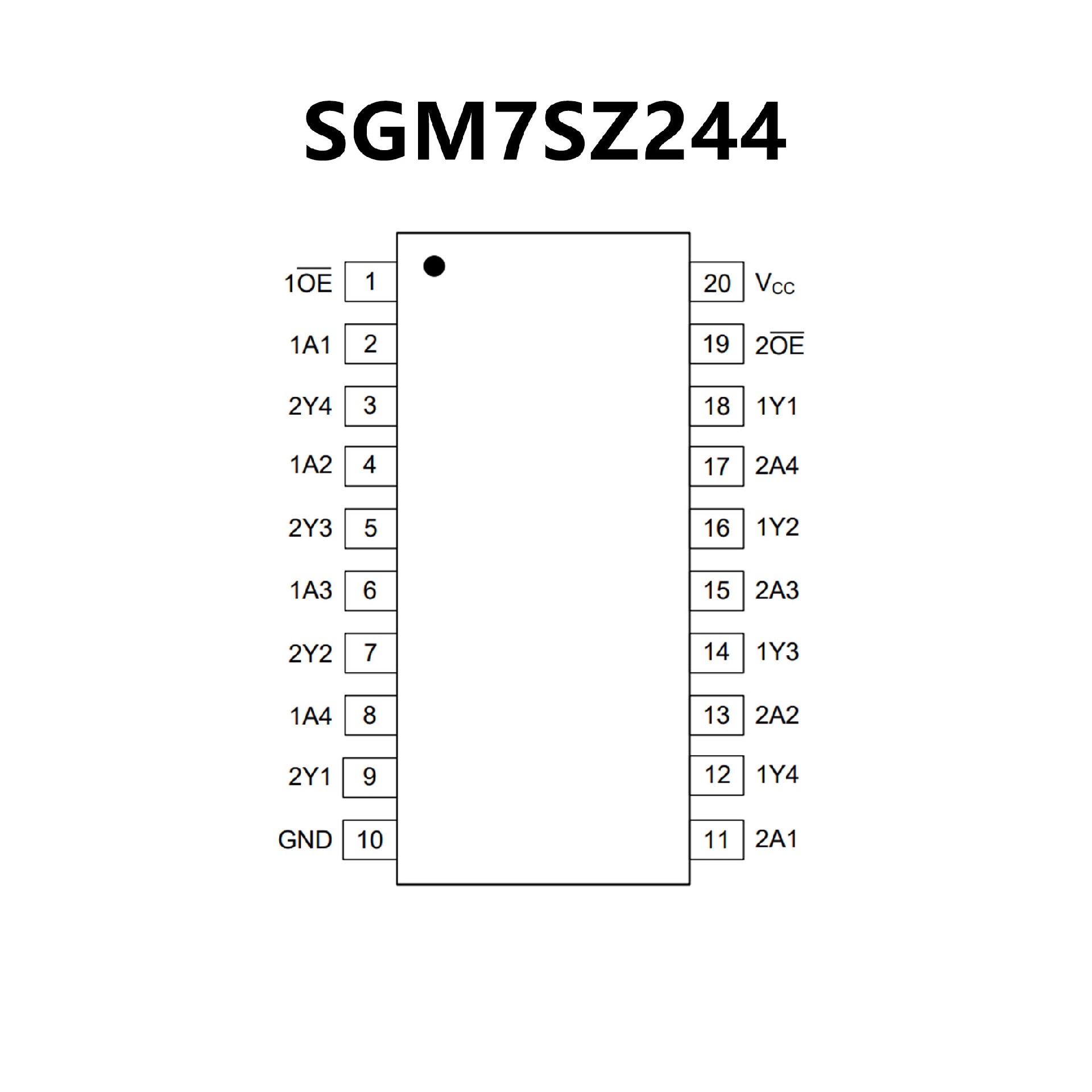

PIN CONFIGUTION
优势替代
FEATURES
• 3−State Outputs Drive Bus Lines or
Buffer Memory AddressRegisters
• Outputs Source/Sink 24 mA
• ′ACT244 Has TTL Compatible Inputs
• These are Pb−Free Devices

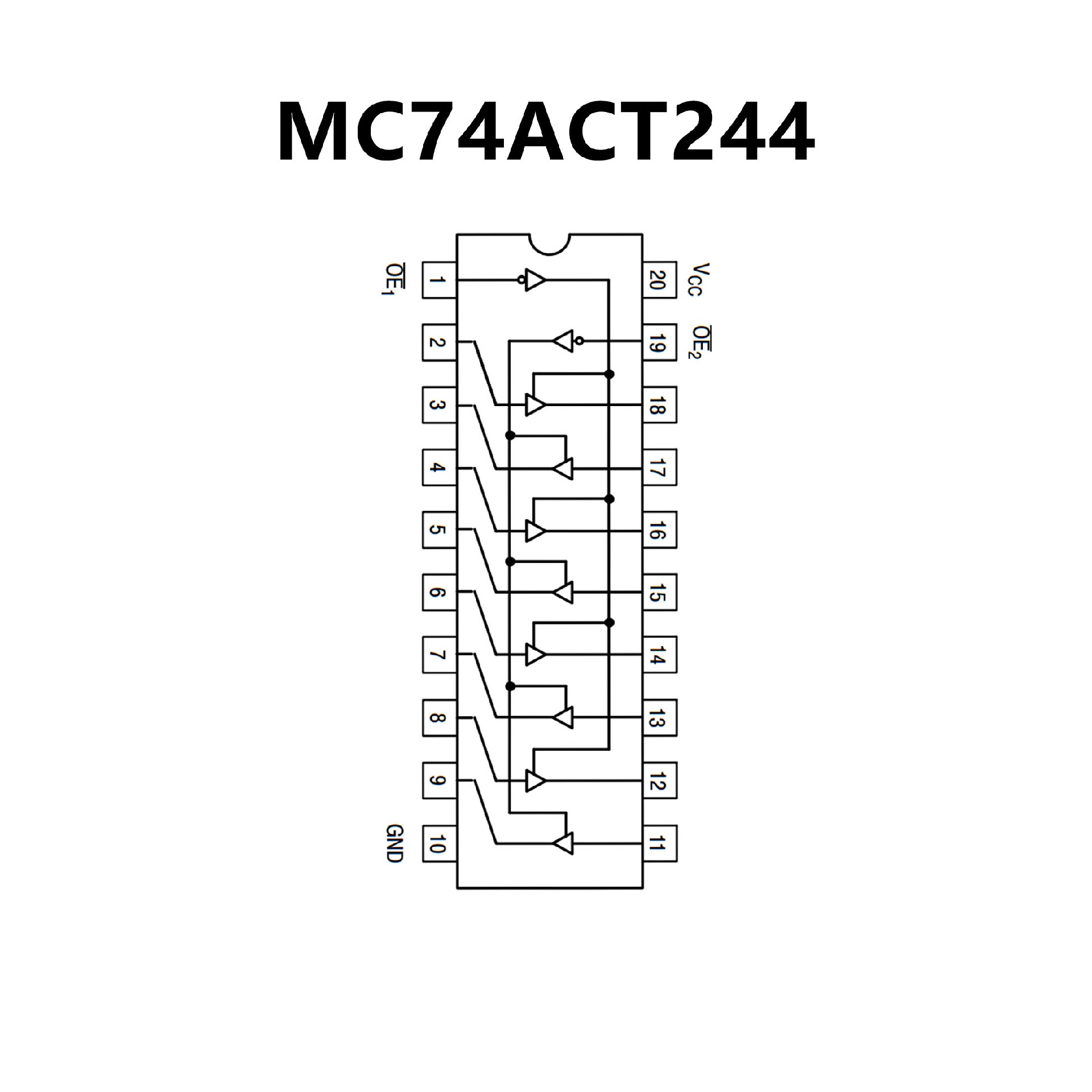

PIN CONFIGUTION
