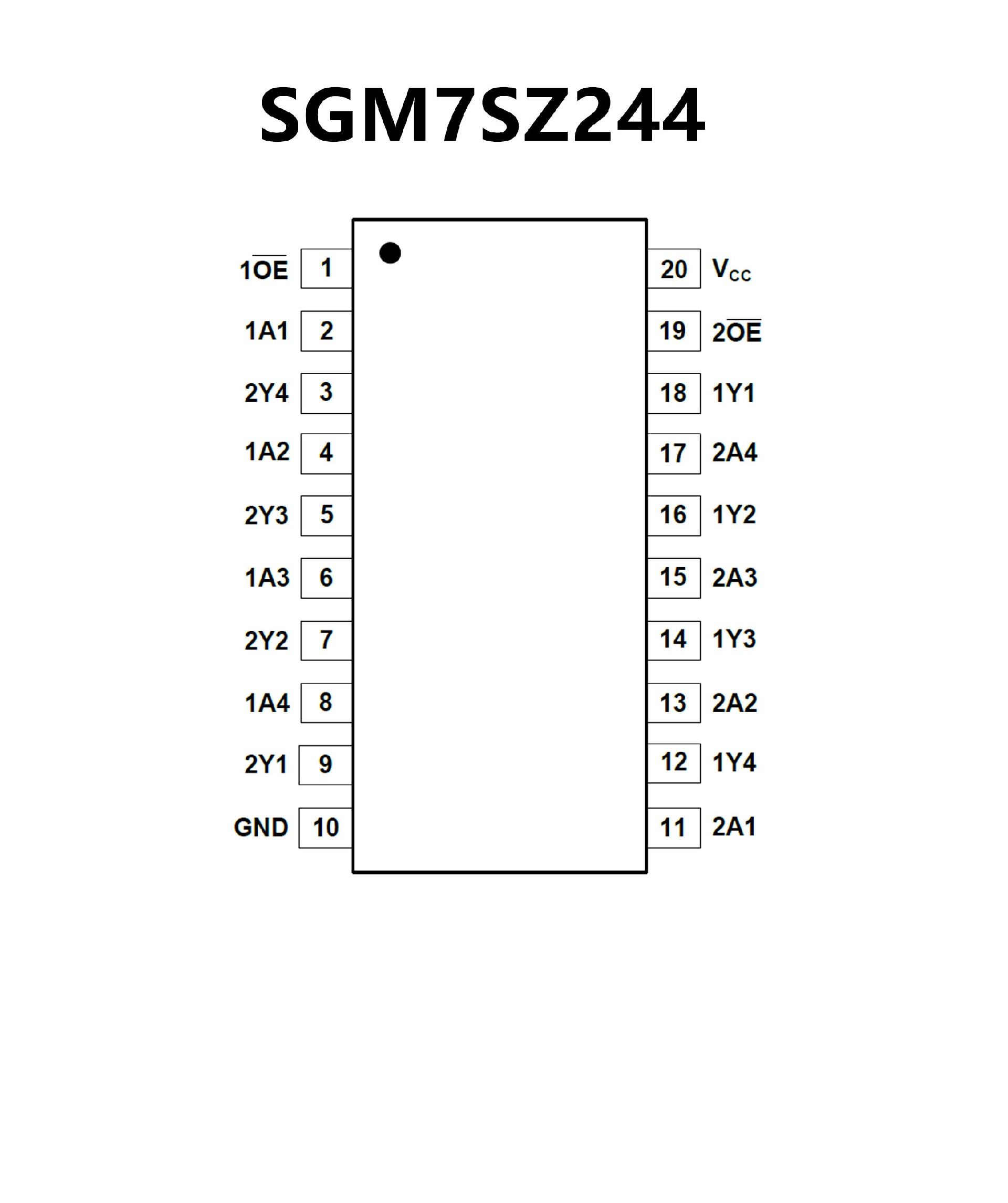

SGM7SZ244.pdf• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current Outputs Drive Up to 15 LSTTLLoads
• 3-State Outputs Drive Bus Lines or
BufferMemory Address Registers
• Low Power Consumption, ICC: 25μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

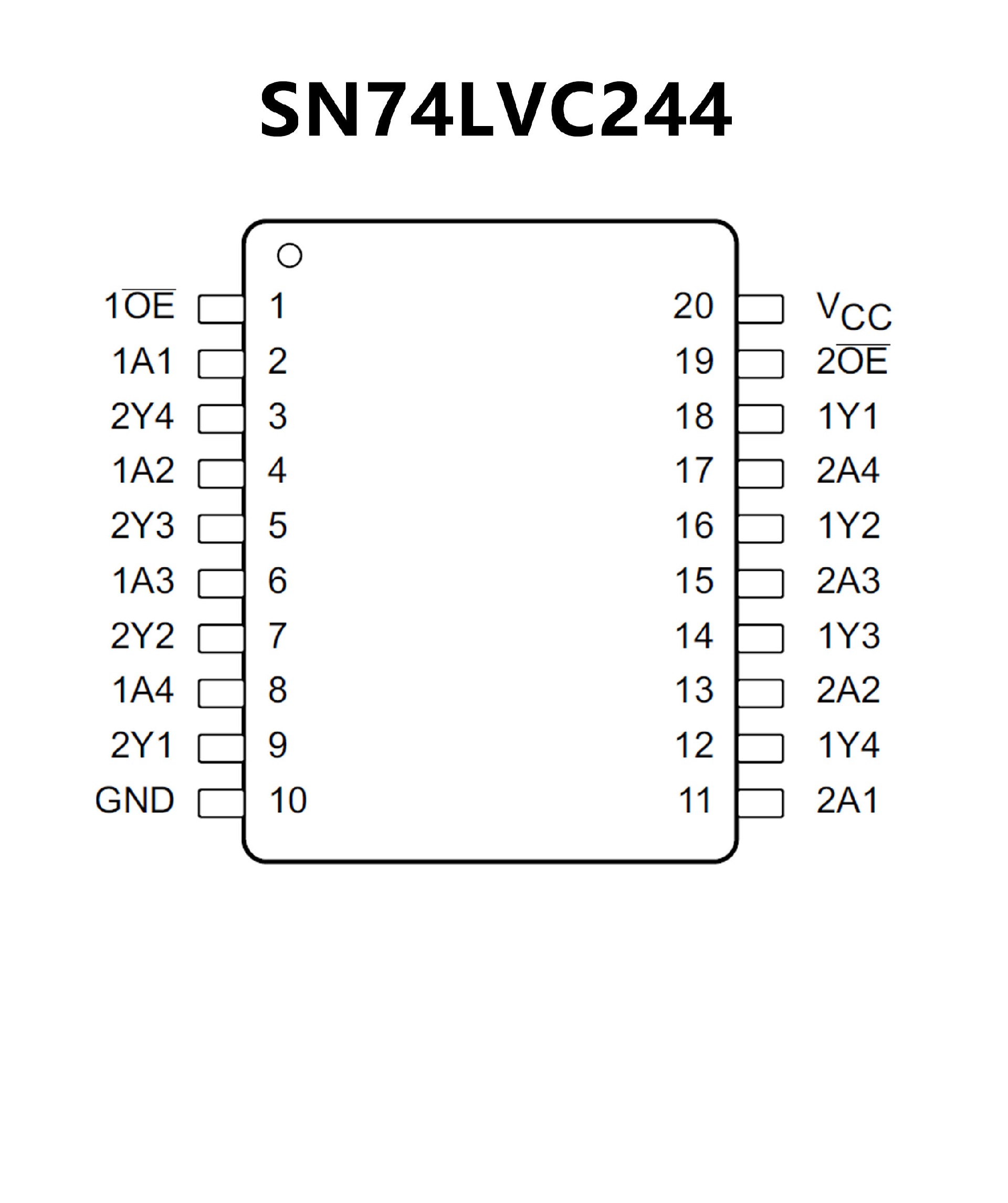

• Operates From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Specified From
40°C to +85°C and 40°C to +125°C
• Maximum tpd of 5.9 ns at 3.3 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
• Supports Mixed-Mode Signal Operation on
All Ports (5-V Input or Output Voltage With3.3-V VCC)
• Ioff Supports Live Insertion, Partial-Power-DownMode,
and Back-Drive Protection
• Can Be Used as a Down Translator to Translate
Inputs From a Maximum of 5.5 V Downto the VCC Level
• Available in Ultra Small Logic QFN
Package (0.5mm Maximum Height)
• Latch-Up Performance Exceeds 250 mA PerJESD 17
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model
