Octal Buffers/Line Driverswith 3-State Outputs,7SZ244XTS20GTR-Replace-74ACT541MTCX.
SGM7SZ244
SGM7SZ244.pdf
SGM7SZ244.pdfFEATURES
• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current Outputs Drive Up to 15 LSTTL
Loads
• 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
• Low Power Consumption, ICC: 25μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

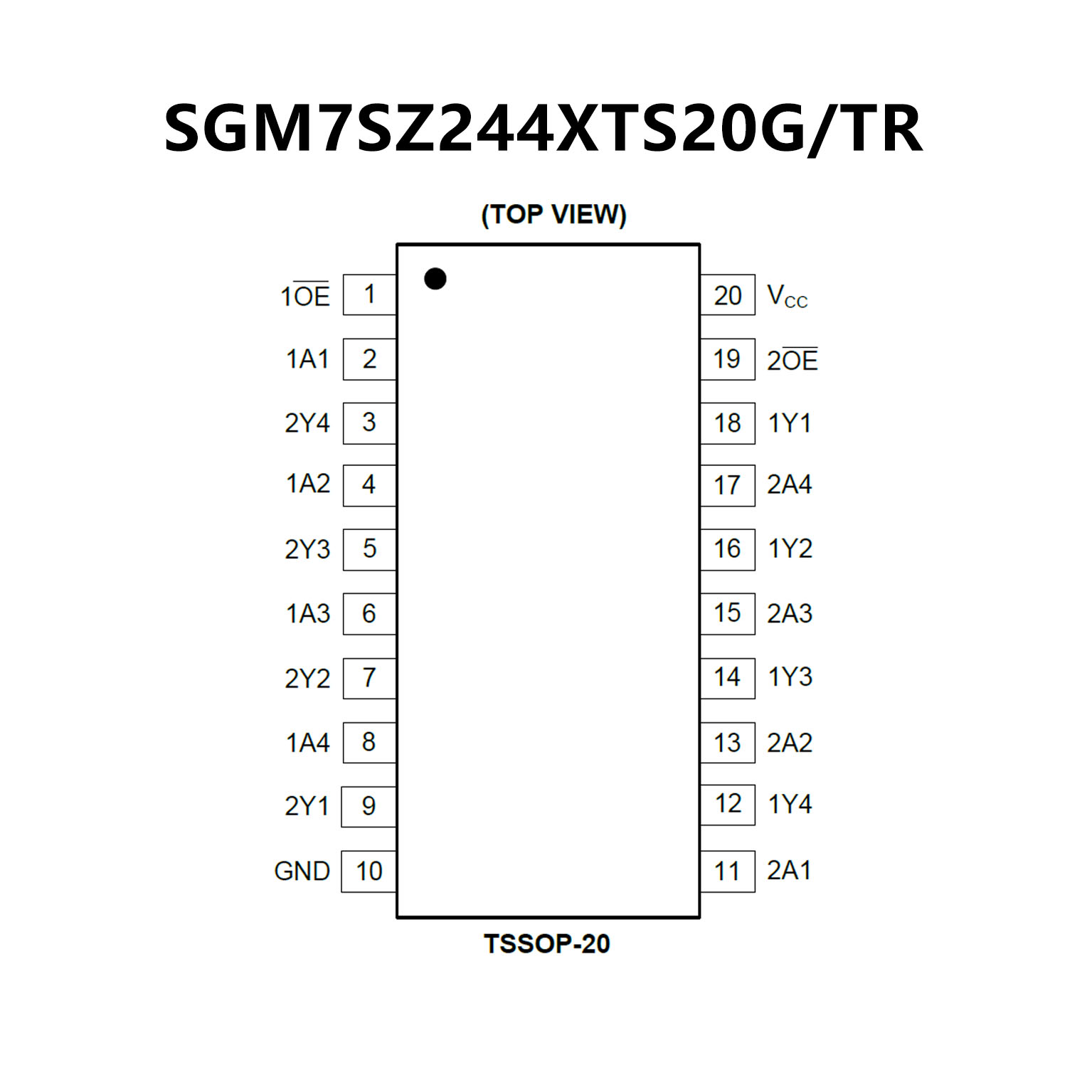

PIN CONFIGUTION
优势替代
FEATURES
• ICC and IOZ reduced by 50%
• 3-STATE outputs
• Inputs and outputs opposite side of package, allowing
easier interface to microprocessors
• Output source/sink 24mA
• 74AC541 is a non-inverting option of the 74AC540
• 74ACT541 has TTL-compatible inputs

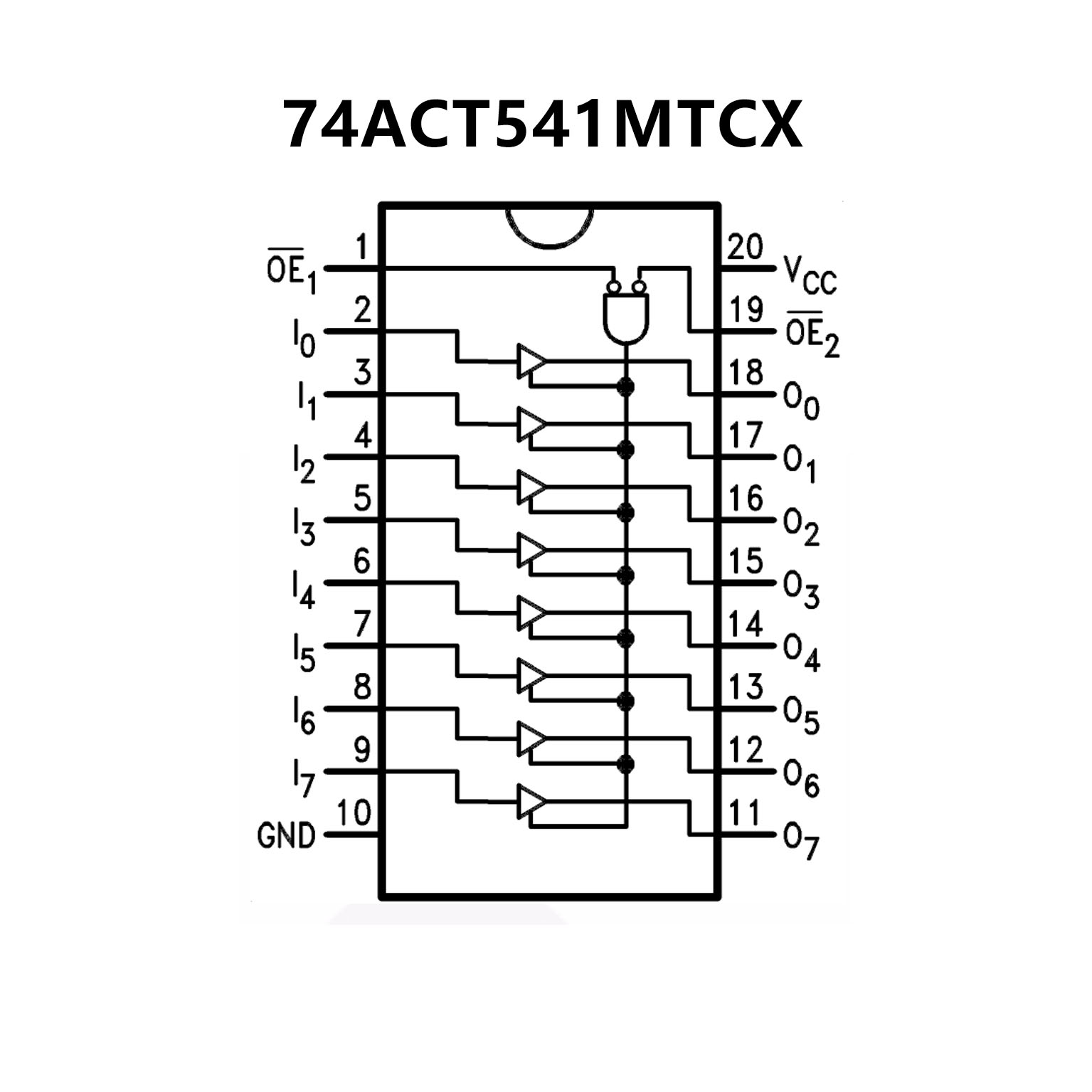

PIN CONFIGUTION
