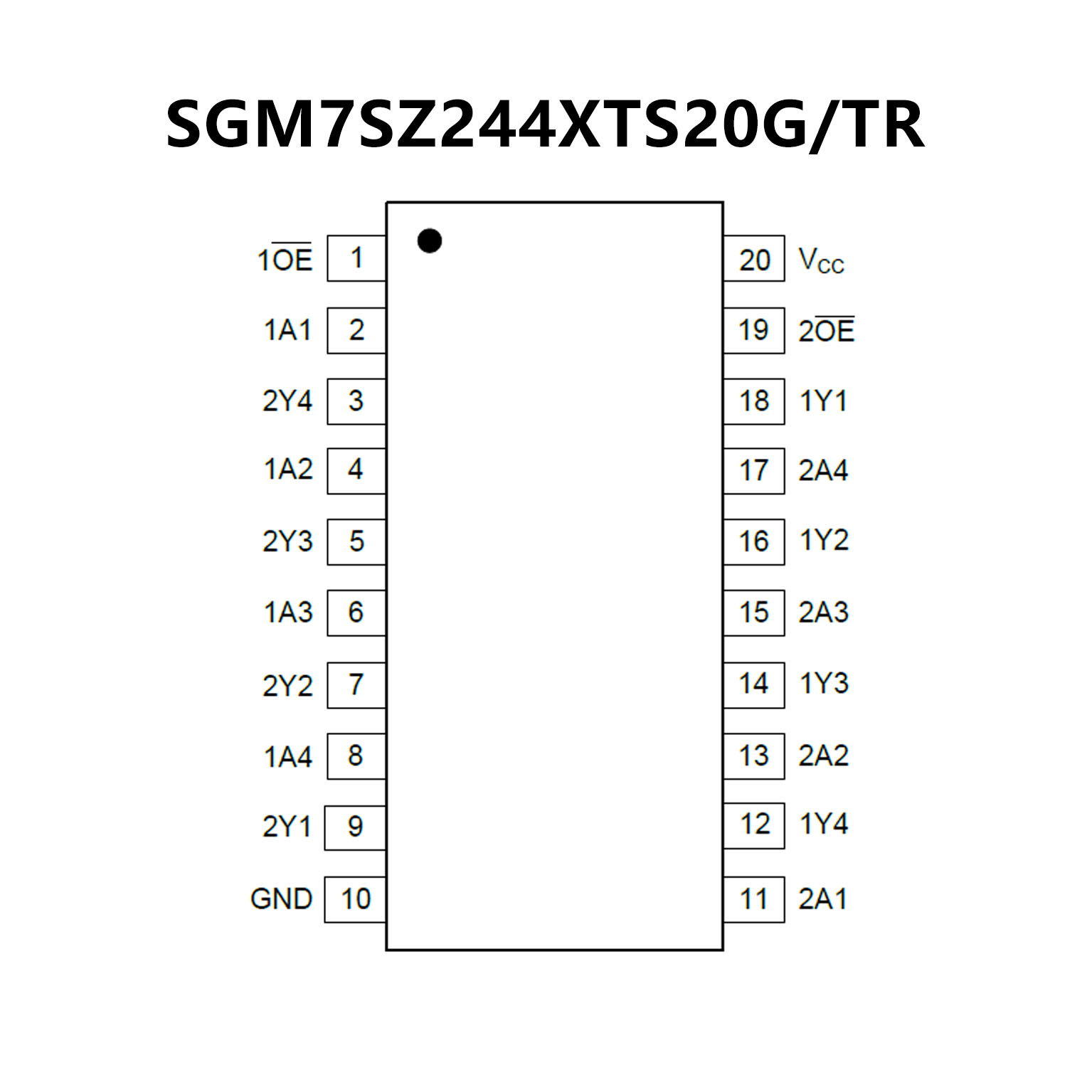

SGM7SZ244.pdf• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current Outputs Drive Up to 15 LSTTL
Loads
• 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
• Low Power Consumption, ICC: 25μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

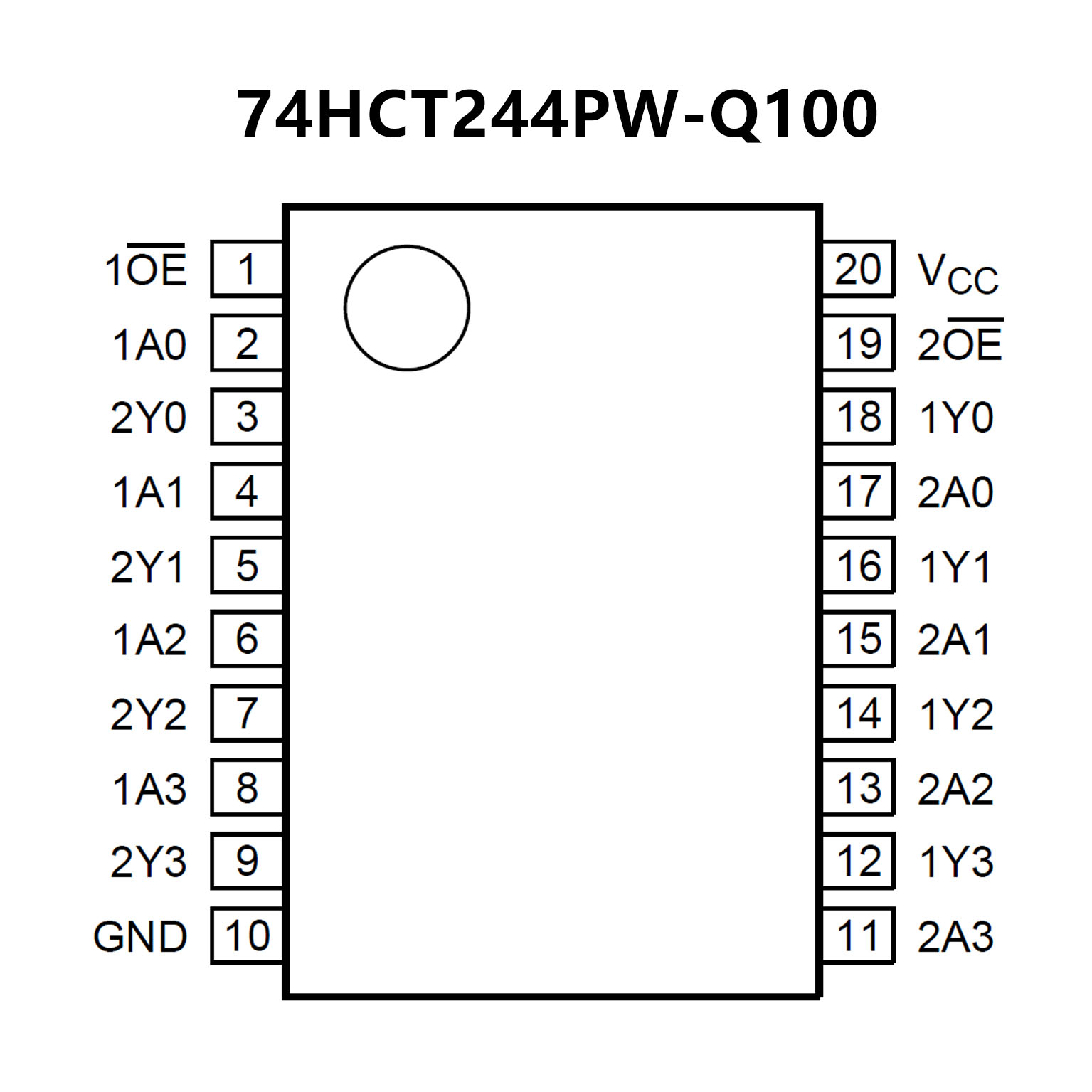

• Automotive product qualification in accordance with AEC-Q100 (Grade 1)
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
• Wide supply voltage range from 2.0 to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Input levels:
For 74HC244-Q100: CMOS level
For 74HCT244-Q100: TTL level
• Octal bus interface
• Non-inverting 3-state outputs
• Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
• ESD protection:
MIL-STD-883, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
• Multiple package options
• DHVQFN package with Side-Wettable Flanks enabling
Automatic Optical Inspection (AOI) of solder joints
