Octal Buffers/Line Drivers with 3-State Outputs,SGM7SZ244XTS20GTR-Replace-AiP74HC244TA.
SGM7SZ244XTS20G
SGM7SZ244XTS20G.pdf
SGM7SZ244XTS20G.pdfFEATURES
• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current Outputs Drive Up to 15 LSTTL
Loads
• 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
• Low Power Consumption, ICC: 25μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

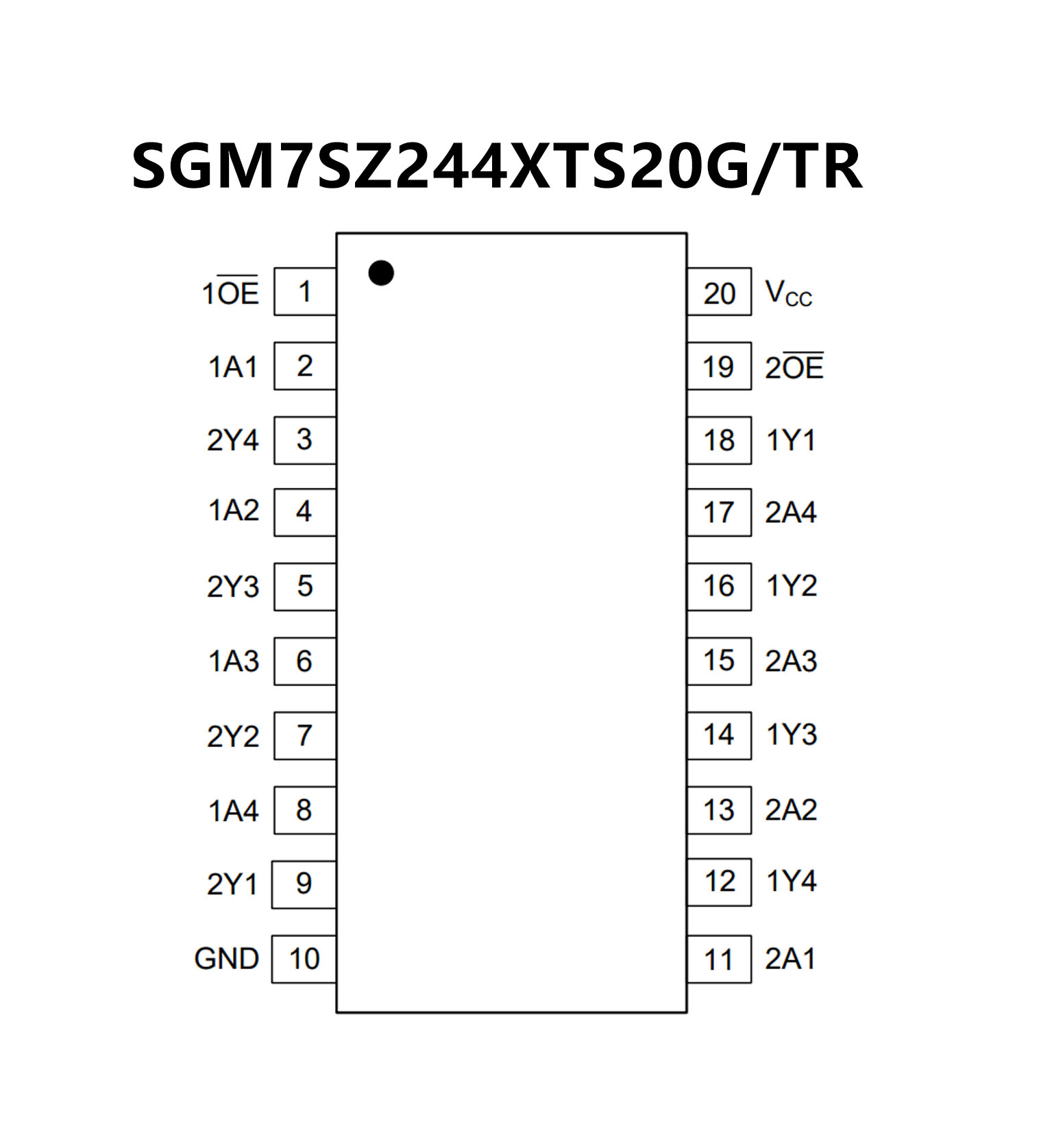

PIN CONFIGUTION
优势替代
FEATURES
• Input levels:
For AiP74HC244: CMOS level
For AiP74HCT244: TTL level
• Octal bus interface
• Non-inverting 3-state outputs
• Specified from -40℃ to +105℃
• Packaging information: DIP20/SOP20/TSSOP20

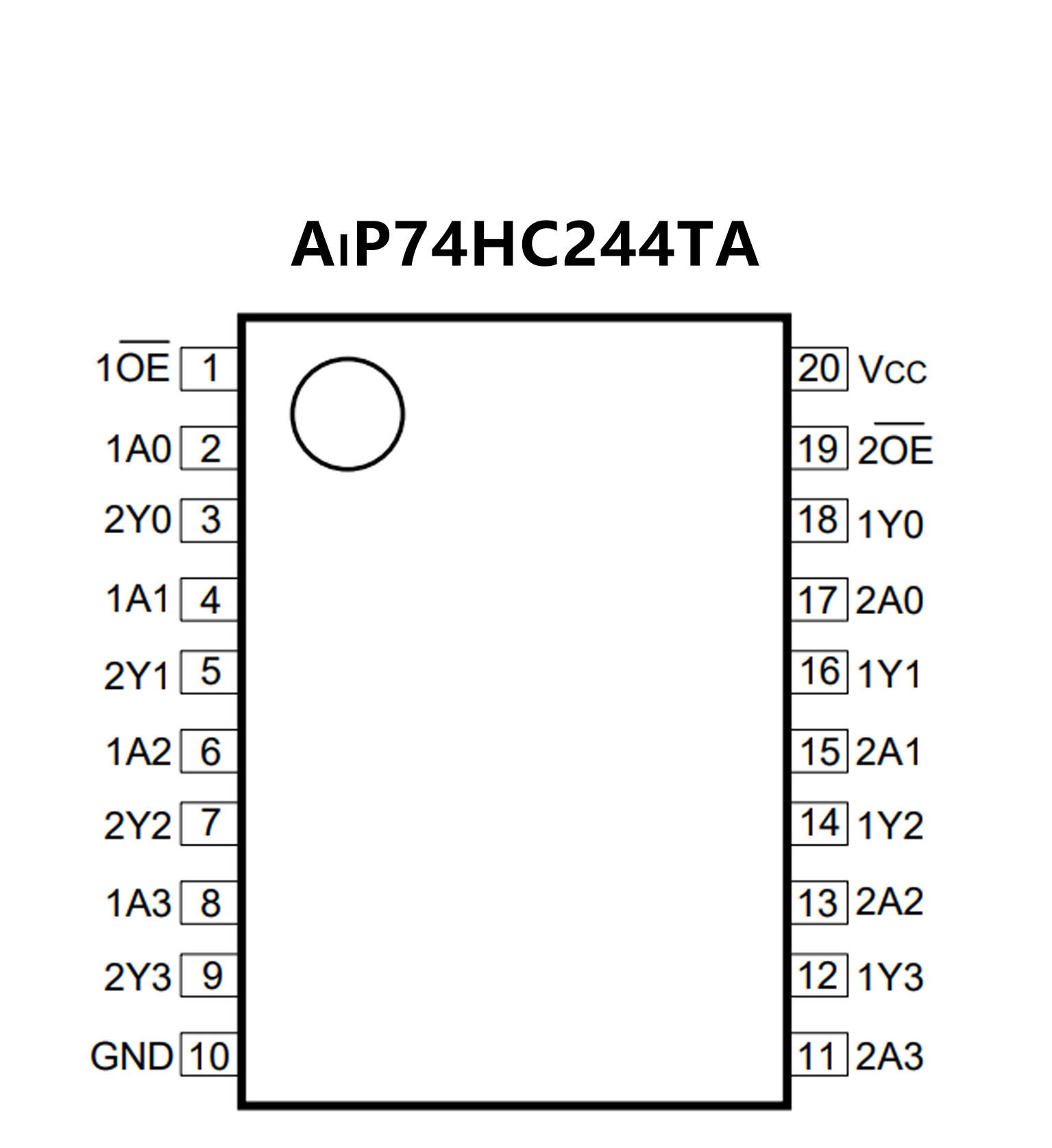

PIN CONFIGUTION
