SGM7SZ245.pdf• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current 3-State Outputs Drive Bus
LinesDirectly or Up to 15 LSTTL Loads
• Low Power Consumption, ICC: 13μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• Available in Green TSSOP-20,
TQFN-5.5×3.5-24Land TQFN-3×3-20L Packages
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

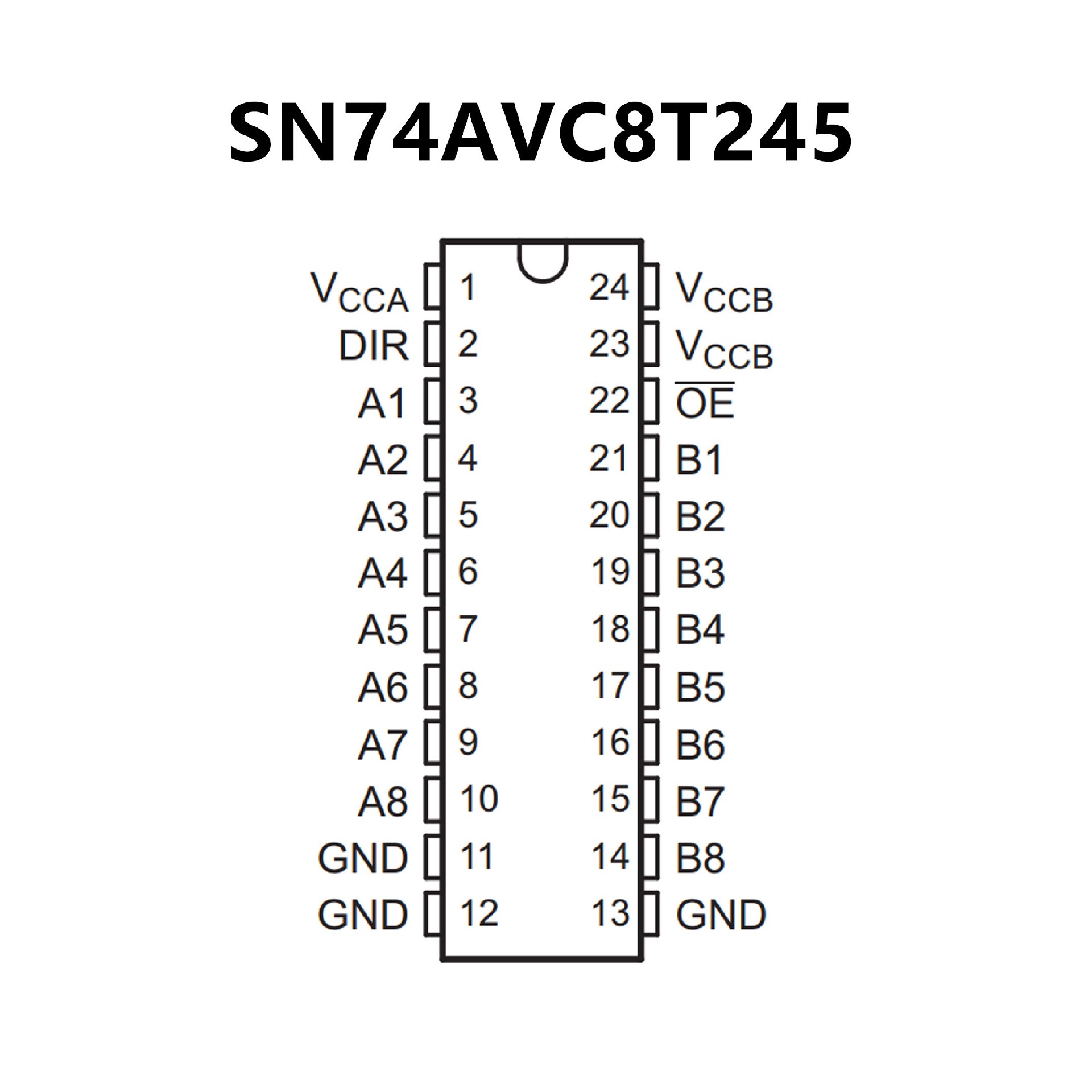

• Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
• VCC Isolation Feature – If Either VCC Input Is at
GND, All I/O Ports Are in the High-Impedance State
• Ioff Supports Partial Power-Down Mode Operation
• Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.4-V to 3.6-V
Power-Supply Range
• I/Os Are 4.6-V Tolerant
• Maximum Data Rates
170 Mbps (VCCA < 1.8 V or VCCB < 1.8 V)
320 Mbps (VCCA ≥ 1.8 V and VCCB ≥ 1.8 V)
